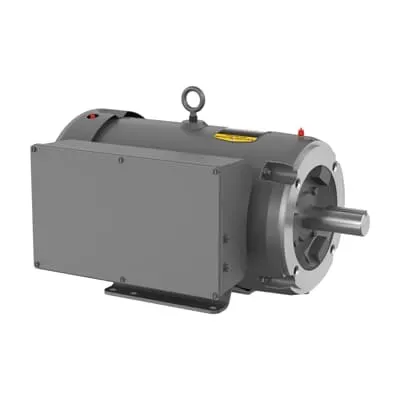

ABB 7BCL3712T General Purpose Motor - TEFC Enclosed
Part Number: 7BCL3712T
Quick Summary
ABB 7BCL3712T General Purpose Motor delivers 10 HP for general purpose drives in light industrial and equipment applications. Many projects struggle with retrofit compatibility and mounting alignment; this motor uses a standard 215TC frame with C-face mounting for fast, vibration-free installation. CSA and UR certifications, along with a NEMA-compliant TEFC enclosure, ensure reliable operation across regulated environments. With 230 V, 60 Hz operation and durable bearings, it provides predictable performance while reducing long-term maintenance costs. This combination supports easier procurement, scalable uptime, and seamless integration with common control architectures.
Product Information
Extended Description
7BCL3712T ABB: General Purpose Motor 10 Hp 230 V (CL3712T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1740RPM,1PH,60HZ,215TC,3748LC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CL3712T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYM317: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
CL3712T
Gross Volume
7561.383 inÂł
Gross Weight
171 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,1740RPM,1PH,60HZ,215TC,3748LC,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 10 HP, 1800 RPM, Frame Size 215Tc, C-Face Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (CL3712T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TC
Motor Frame Suffix
TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
98 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
171 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
40 A | 38 A
Rated Efficiency
86.50 %
Rated Speed
1740 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215Tc, C-Face, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
F
Voltage Rating
230 V
Feature: 1-phase, 230 V operation at 60 Hz. Business Impact: simplifies electrical sourcing and reduces starter complexity for lightweight equipment. Application: conveyors, mixers, fans, and pumps in packaging lines. The motor’s direct-on-line start capability minimizes control-system requirements and accelerates commissioning, boosting overall line throughput. Feature: 10 HP output at 1740 r/min (4P) with a 215TC frame. Business Impact: compact power-to-size ratio enables retrofit into existing footprints without major mechanical changes. Application: small conveyors, blowers, and process motors where space is constrained. Feature: TEFC enclosure with C-face mounting and foot-mount base. Business Impact: protects windings from dust and moisture, supports rugged factory floors, and simplifies installation on standard bases. Application: metalworking, food and beverage, and material-handling lines in harsh environments. Feature: Bearings specified as 6307 Ball / 6206 Ball with Regreasable lubrication. Business Impact: reduced downtime due to longer service intervals and easier maintenance, improving total cost of ownership. Application: harsh, dusty, or high-vibration settings where bearing life determines uptime. Feature: Efficiency, current and certification highlights (86.5% efficiency, 98% PF, 40 A rated current; CSA | UR, NEMA). Business Impact: energy savings, compliant procurement, and safer operation with recognized industry standards. Application: anywhere energy efficiency and regulatory compliance drive ROI. Feature: 10 HP, 1740 r/min nominal speed and 1800 r/min synchronous speed with 1PH, 60 Hz, 230 V. Business Impact: predictable performance for matched load profiles and straightforward control integration. Application: pumps, blowers, fans, and light-duty drives in manufacturing and processing plants.
Get a Quick Quote for a ABB 7BCL3712T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCL3712T?
Enquire Now
FAQs
Install the motor on a rigid, flat base compatible with the 215TC frame and ensure mounting holes align with the base pattern. Use the C-face drive end flange to connect to the driven equipment, and secure with locking fasteners. Verify shaft alignment and verify 1.38 inch shaft diameter fits the coupling or pulley stack. Finally, wire to a suitable 230 V, 60 Hz supply with proper overload protection.
The motor runs on a 1-phase, 230 V supply at 60 Hz, delivering 10 HP with a nominal speed of 1740 r/min (4 poles). It draws up to about 40 A nominally and features a high power factor of ~0.98 and efficiency around 86.5%. It starts Direct On Line and is designed for TEFC operation within a 0–40 °C ambient range.
Yes. With a 10 HP, single-phase design, 215TC frame, and C-face mounting, the 7BCL3712T fits compact packaging-line equipment. Its TEFC enclosure protects internal windings in dusty environments, and the unit’s robust bearings support longer life under continuous duty. Pair it with standard speed controllers or VFDs where appropriate, and ensure load profiles match the 1740 r/min nominal speed.
The motor carries CSA and UR certifications and adheres to NEMA design practices. It uses a TEFC enclosure for safety and dust protection, with an altitude rating up to 1000 m and an ambient temperature rating to 40 °C. These certifications support compliant procurement and safe operation in regulated industrial settings.
Regreasable bearings reduce maintenance intervals and extend service life, lowering downtime and labor costs. The stock-at-warehouses availability (including US and international locations) shortens procurement lead times, while the robust frame and enclosure reduce replacement risk. Together, these factors translate to lower operating expenses and faster time-to-value for retrofit projects.
