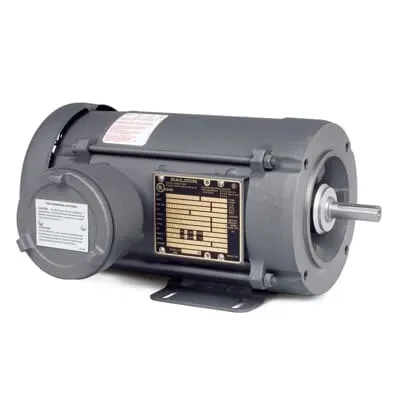

ABB 7BCL5023-I LV Explosion Proof Motors - XPFC
Part Number: 7BCL5023-I
Quick Summary
LV Explosion Proof Motors ABB deliver reliable performance in hazardous-area manufacturing and processing facilities. Many plants struggle with downtime due to noncompliant enclosures and high maintenance costs. This design features XPFC enclosure, IP54 protection, and NEMA standards alignment to meet strict industrial safety and reliability requirements. With a 56C frame, 230 V single‑phase supply, and regreasable bearings, it simplifies retrofits and reduces unexpected outages. Rated for up to 40 °C ambient and elevations to 1000 m, it remains dependable across diverse sites. Using this motor supports uptime, compliance, and predictable maintenance budgeting, making it a solid choice for hazardous‑location applications and energy‑efficient operations.
Product Information
Extended Description
7BCL5023-I ABB: LV Explosion Proof Motors 230 V (CL5023-I)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1725RPM,1PH,60HZ,56C,3532L,XPFC
Invoice Description
1HP,1725RPM,1PH,60HZ,56C,3532L,XPFC,F1,N
Product Name
LV Explosion Proof Motors
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015220
Stocked At (Warehouses)
China
Medium Description
Frame Size 56C, 1 Phase, XPFC Enclosure, (CL5023-I)
Short Description
Frame Size 56C, 1 PH, XPFC,
Electrical Data
Temperature Class Default
--
Frequency (f)
60 Hz
Altitude
1000 m
Ambient Temperature
40 °C
IC Class
XPFC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IP Class
IP54
Insulation Class
ICLF
Direction of Rotation
Both sides
Two Speed Motor
No
Type of Duty
S1
Voltage Code
K
EX-Protection
ClassI
Frame Material
Steel
Frame Size
56
Bearing
6205
Bearing NDE
6203
Lubrication
Regreasable
IM Class
F1
Product Net Depth / Length
19 in
Product Net Height
12.625 in
Product Net Width
13.75 in
Product Net Weight
66 lb
Gross Weight
66 lb
Standards
NEMA
UNSPSC
26101116
Explosion-proof XPFC enclosure paired with IP54 protection reduces ignition risk and keeps contaminants out, enhancing plant safety and compliance in chemical processing and oil & gas environments. This directly translates to lower safety-related downtime and less costly corrective actions, enabling uninterrupted production in hazardous locations. The 1HP, 1725RPM, 230 V single-phase design simplifies integration with existing electrical infrastructure, reducing wiring complexity and installation costs while enabling quick retrofits in standard US plant layouts. Regreasable bearings and a robust 56C frame cut maintenance intervals and extend service life, providing predictable operating costs and longer intervals between servicing. Insulation Class ICLF and S1 duty support continuous operation under typical factory temperatures, ensuring reliable performance through long shift cycles. Altitude up to 1000 m and ambient temperatures to 40 °C expand site applicability for mining and processing facilities, minimizing the need for multiple motor variants. The NEMA-aligned standards and Class I explosion protection reinforce compliance across regulated industries, supporting mitigated risk and faster commissioning in hazardous locations. This motor is designed for simple installation, easy fault diagnosis, and compatibility with standard 60 Hz electrical systems, reducing training time for maintenance teams and accelerating project timelines.
Get a Quick Quote for a ABB 7BCL5023-I
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCL5023-I?
Enquire Now
FAQs
This motor is designed for hazardous locations and integrates with standard 230 V, 1PH, 60 Hz electrical systems. The XPFC enclosure and IP54 rating make it suitable for chemical plants, oil and gas facilities, and mining operations, while the 56C frame size facilitates straightforward mounting in common industrial enclosures.
Connect to a single-phase 230 V supply rated for the motor’s nominal current. Use a standard starter or VFD sized for 1HP at 60 Hz, with appropriate overload protection. The frame 56C and XPFC enclosure simplify wiring routing, and the regreasable bearings reduce maintenance complexity, enabling quick commissioning.
Yes. The unit is rated for up to 1000 m altitude and ambient temperatures up to 40 °C, making it appropriate for varied sites including remote or elevated industrial facilities. This broad operating envelope minimizes the need for multiple motor variants across sites.
The motor features XPFC explosion protection and IP54 ingress protection, with alignment to NEMA standards. It is a Class I EX-protected device designed for hazardous environments, accompanied by a 56C frame and regreasable bearings for durable operation in challenging facilities.
Regreasable bearings and a robust 56C frame reduce maintenance frequency and extend service life, lowering downtime costs. The enclosure and protection class support compliance and safer operation, enabling faster commissioning and predictable budgeting for maintenance and energy usage in hazardous-location applications.
