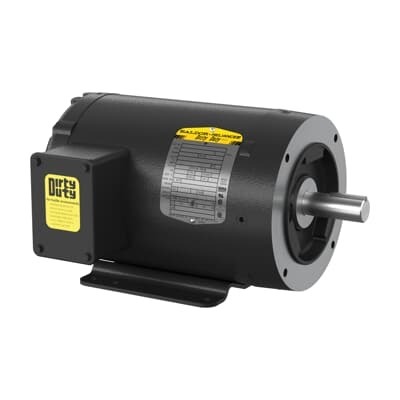

ABB 7BCNEDM3546T Severe Duty Motor - NEMA Premium Efficiency
Part Number: 7BCNEDM3546T
Quick Summary
ABB 7BCNEDM3546T Severe Duty Motor powers demanding conveyors and processing lines. It addresses downtime and reliability challenges by delivering rugged performance in dirty, tough environments. Certified for NEMA Premium efficiency along with CSA US/EEV and UR, the unit blends energy savings with regulatory compliance. With a 143TC frame and 230/460 V operation at 60 Hz three-phase, it fits common OEM footprints while delivering consistent torque and durable operation. This combination supports easy replacement or retrofit in automation projects while helping reduce total cost of ownership through improved efficiency and serviceability.
Product Information
Extended Description
7BCNEDM3546T ABB: Severe Duty Motor 1 Hp 230 V (CNEDM3546T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,143TC,3522M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CNEDM3546T
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYE4320: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
CNEDM3546T
Gross Volume
2110.969 inÂł
Gross Weight
42 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1HP,1770RPM,3PH,60HZ,143TC,3522M,TENV,F1
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Dirty Duty Autophoretic, 1 HP, 1800 RPM, Frame Size 143Tc, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (CNEDM3546T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
66 %
Product Name
Dirty Duty Autophoretic
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
42 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.34 A | 1.67 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143Tc, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature a 1 HP output and 1770 rpm nominal speed for reliable, steady torque in 60 Hz, 3-phase systems. Business impact is smoother startup, reduced electrical stress, and compatibility with standard conveyors and processing lines, enabling faster implementation and fewer integration hurdles. Application includes material handling, packaging, and light processing equipment where robust, long-life performance matters. Feature a 230/460 V voltage rating and a universal 143TC frame, which translates to broad electrical compatibility and straightforward mounting, reducing design changes during retrofits. Business impact is easier sourcing and lower install risk, supporting OEMs with predictable procurement timelines and minimal downtime. Application spans U.S. manufacturing environments that demand energy efficiency and continuous operation. Feature a Totally Enclosed Non-Ventilated (TENV) enclosure paired with a rugged mounting arrangement (C-face drive end flange, foot mount, horizontal orientation) to improve protection against dust and grime. Business impact is extended motor life in harsh environments and reduced maintenance intervals, with clear installation guidelines for conveyors and processing lines.
Get a Quick Quote for a ABB 7BCNEDM3546T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCNEDM3546T?
Enquire Now
FAQs
This motor uses a standard 143TC frame and a C-face drive end flange, with feet for horizontal mounting. It is designed for easy retrofit into existing equipment like conveyors and processing lines, minimizing alignment adjustments. Ensure proper shaft coupling and rigid mounting to maintain alignment under load, and verify availability of compatible hardware for 230/460 V, 60 Hz service.
Key specs include 1 HP output, rated speed 1770 r/min, 60 Hz frequency, and 3-phase power with a 230/460 V rating. The motor features a 143TC frame, TE mounting, and a service factor of 1.15. Efficiency is Premium (NEMA), with a Power Factor around 0.66, and a maximum speed of 2700 r/min under overload conditions.
Yes. The motor uses a TENV enclosure designed to withstand dusty and dirty environments, complemented by a robust frame and sealant levels appropriate for heavy-duty operation. Its mounting options (C-face, foot mounted, horizontal) support secure installation in conveyor and processing equipment. Regular maintenance of bearings (6205 sealed) and lubrication practices will further enhance reliability in harsh plants.
This ABB motor carries NEMA Premium efficiency designation, plus CSA US/EEV and UR certifications. It adheres to NEMA standards and is backed by multiple regional stock points, supporting compliance in U.S. facilities and international projects while ensuring energy performance and regulatory alignment across typical industrial deployments.
The 0 day lead time and stock at multiple warehouses reduce project downtime and expedite deployment, contributing to faster ROI. With Premium efficiency, energy costs are lower, delivering ongoing savings. Maintenance focuses on sealed bearings, regular inspection under dust exposure, and ensuring proper mounting alignment to maximize life and minimize unscheduled downtime.
