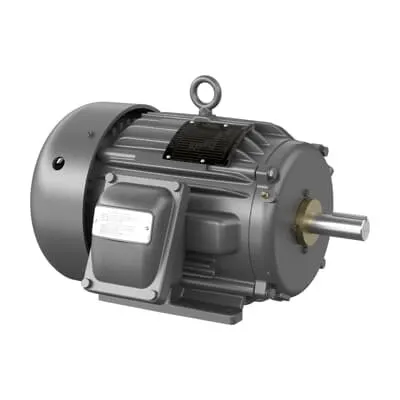

ABB 7BCPX18326T Severe Duty Motor - Explosion Proof
Part Number: 7BCPX18326T
Quick Summary
ABB 7BCPX18326T Severe Duty Motor is a rugged drive solution for hazardous, continuous-duty applications. Maintenance downtime and unexpected failures can cost significant time and money in critical plants, especially in hazardous areas. It carries IP55 protection, a NEMA-compliant design, and an explosion-proof XPFC enclosure to safeguard windings and operators. With 50/60 Hz operation and multiple voltage variants, it fits retrofit projects and new builds alike while reducing total cost of ownership.
Product Information
Extended Description
7BCPX18326T ABB: Severe Duty Motor 2 Hp 190 V (CPX18326T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3470RPM,3PH,60HZ,182T,XPFC,F1
Invoice Description
3HP,3470RPM,3PH,60HZ,182T,XPFC,F1
Product Name
Explosion Proof Severe Duty
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015220
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof Severe Duty, 3 HP, 3600//3000 RPM, Frame Size 182T, Standard Mounting, 3 Phase, XPFC Enclosure, 230/460//190/380 V,
Short Description
3 HP, 3600//3000 RPM, Frame Size 182T, Standard, 3 PH, XPFC, 230/460//190/380 V
Electrical Data
Frequency (f)
50 Hz | 60 Hz
Output Power
2 Hp | 3 Hp
Ambient Temperature
40 °C
IP Class
IP55
Insulation Class
F
Number of Poles (High)
2
Type of Duty
Continuous
Frame Material
Iron
Frame Size
182
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Width
16.125 in
Product Net Weight
127 lb
Gross Weight
127 lb
Standards
NEMA
UNSPSC
26101112
The XPFC explosion-proof enclosure paired with IP55 protection minimizes ignition risk and protects critical windings in harsh environments, delivering higher uptime and safer operation in chemical plants, oil and gas facilities, and mining sites. This translates into lower maintenance costs and fewer unplanned outages, enabling operators to meet production targets with confidence. The 182T frame and standard mounting simplify installation, making retrofits and new installations faster while reducing custom fabrication and downtime. Availability across voltage ranges supports global deployments, ensuring consistent performance whether plants run at 50 Hz or 60 Hz, with 230/460 or 190/380 V configurations. Ready stock at multiple warehouses and a 0-day lead time shorten procurement cycles, helping engineering teams stay on schedule. Insulation class F, NEMA standards, and a robust continuous-duty specification reduce long-term service costs and extend motor life in demanding processes.
Get a Quick Quote for a ABB 7BCPX18326T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCPX18326T?
Enquire Now
FAQs
The motor uses a standard 182T frame with conventional mounting provisions for quick retrofits and new installations. This compatibility minimizes the need for custom adapters and reduces installation time. When planning a retrofit, verify the 182T mounting dimensions, alignment with couplings and belts, and ensure the mounting surface can sustain the motor’s weight and vibration characteristics for continuous-duty operation.
The 7BCPX18326T supports 50 Hz and 60 Hz operation with multiple voltage variants, including 230/460 V and 190/380 V configurations. This flexibility enables global deployment and simplifies cross-site projects. To optimize performance, match the voltage and frequency to your drive system specifications and follow XPFC enclosure wiring guidelines for safe operation.
Yes. The Explosion Proof XPFC enclosure, along with IP55 protection and adherence to NEMA standards, makes it appropriate for hazardous environments such as chemical plants, refineries, and mining operations. For compliant use, install according to local codes, ensure proper cable entries, and verify that ambient conditions stay within the motor’s Class F insulation rating and continuous-duty design.
The motor is stocked across multiple warehouses, including locations in the United States, United Kingdom, Singapore, and China, with a stated lead time of 0 days. This multi-warehouse approach supports rapid fulfillment for domestic and international projects. Verify current stock at the specific warehouse and coordinate with the supplier to confirm estimated shipping times to your site.
Warranty terms indicate that products under warranty must be returned for evaluation. This policy aligns with ABB’s standard warranty practices and ensures proper processing of replacements or repairs through approved channels. Preserve original packaging and documentation, and contact support to initiate a warranty claim and obtain an RMA if required.
