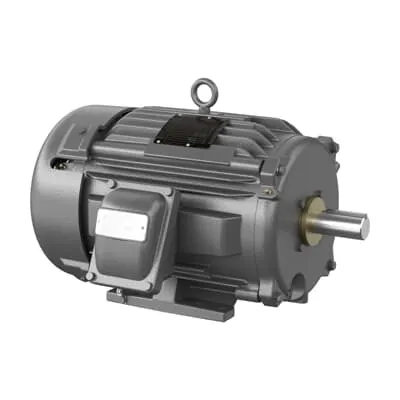

ABB 7BCPX21143T Explosion Proof Motors - NEMA General Purpose
Part Number: 7BCPX21143T
Quick Summary
ABB 7BCPX21143T Explosion Proof General Purpose motors deliver reliable performance in hazardous-location environments for industrial fans, pumps, and conveyors. This solution addresses downtime, frequent reworks, and costly noncompliance by combining rugged construction with broad availability. Built to meet North American standards, it features an explosion-protected design and a robust insulation class that withstands demanding setups. With a 10 HP rating and configurable 230/460 V or 190/380 V 3-phase operation, it fits a wide voltage landscape while supporting both 50 Hz and 60 Hz systems. Stocked across multiple warehouses and ready-to-ship, it minimizes lead times for urgent projects. The standard mounting and 215T frame sizing simplify installation, maintenance planning, and future upgrades, boosting overall equipment effectiveness.
Product Information
Extended Description
7BCPX21143T ABB: Explosion Proof General Purpos 10 Hp 190 V (CPX21143T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10//7.5HP,1760//1460RPM,3PH,60//50H
Invoice Description
10//7.5HP,1760//1460RPM,3PH,60//50HZ,215
Product Name
Explosion Proof General Purpos
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015220
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof General Purpos, 10//7.5 HP, 1800//1500 RPM, Frame Size 215T, Standard Mounting, 3 Phase, 230/460//190/380 V, 50 Hz
Short Description
10//7.5 HP, 1800//1500 RPM, Frame Size 215T, Standard, 3 PH, 230/460//190/380 V
Electrical Data
Frequency (f)
50 Hz | 60 Hz
Output Power
10 Hp | 7.50 Hp
Ambient Temperature
40 °C
Insulation Class
F
Number of Poles (High)
4
Type of Duty
Continuous
Frame Material
Iron
Frame Size
Undefined
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Width
18.125 in
Product Net Weight
249 lb
Gross Weight
249 lb
Standards
NEMA
Feature → Business Impact → Application: Explosion-proof construction minimizes safety risk in hazardous environments, reducing downtime and compliance costs while enabling installation in oil & gas, chemical, and mining sites. Application: Use in motors for pumps or conveyors where safety-critical operation is required. Feature → Business Impact → Application: Voltage flexibility supports 230/460 V or 190/380 V configurations, enabling site-wide compatibility and simplifying electrical upgrades across facilities. Application: Retrofit projects or new builds with mixed power infrastructure. Feature → Business Impact → Application: 4-pole design delivering 1760/1460 RPM (50/60 Hz) provides steady, predictable torque for continuous duty cycles in process lines. Application: Fans, compressors, and material-handling systems. Feature → Business Impact → Application: Frame size 215T and standard mounting speed installation, reducing field labor and spare-parts complexity. Application: Quick commissioning and easy future upgrades. Feature → Business Impact → Application: Insulation Class F and 40 °C ambient tolerance ensure reliability in hot plants and dusty environments, lowering maintenance and replacement frequency. Application: Chemical plants, refineries, and heavy industry. Feature → Business Impact → Application: Stocked at multiple warehouses with zero-day lead time improves project responsiveness and total cost of ownership. Application: Maintenance-driven replenishment and urgent deployments across regions.
Get a Quick Quote for a ABB 7BCPX21143T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCPX21143T?
Enquire Now
FAQs
This is a 3‑phase explosion-proof motor designed for industrial environments, with voltage options including 230/460 V and 190/380 V. It supports 50 Hz and 60 Hz operation and uses a standard mounting with a 215T frame for straightforward installation and compatibility with common electrical and mechanical interfaces found in process facilities.
The motor provides 10 HP (7.5 HP continuous) with a 4-pole configuration, delivering speeds of 1760 RPM at 60 Hz and 1460 RPM at 50 Hz. Insulation Class is F, ambient operating temperature is 40 °C, and the unit weighs 249 lb with a 215T frame size, suitable for continuous duty in demanding environments.
Yes. The unit is engineered as an explosion-proof general purpose motor, making it ideal for hazardous locations. It is well suited for oil & gas, chemical processing, mining, and water treatment industries where safety requirements and reliable performance are critical for continuous operation.
The motor is designed to meet NEMA standards and is categorized as explosion-proof for hazardous environments. It is manufactured in the United States and is offered as a stock item, designed for rapid deployment and regulatory alignment in North American facilities.
The motor is stocked across multiple warehouses with 0-day lead time, reducing project delays and carrying costs. A clear warranty policy states that warranty returns must be handled accordingly, supporting long-term maintenance planning and a lower total cost of ownership through reliable, readily available replacement parts.
