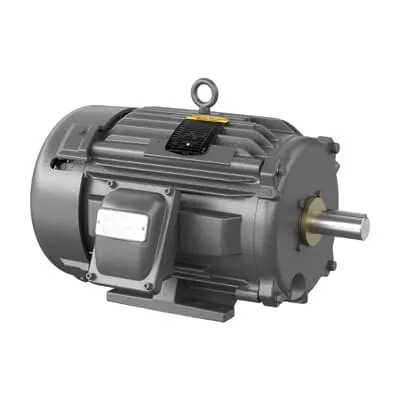

ABB 7BCPX21146T Severe Duty Motor - Explosion Proof XPFC Enclosure
Part Number: 7BCPX21146T
Quick Summary
ABB 7BCPX21146T Severe Duty Motor provides reliable 10 HP power for hazardous, explosion‑proof applications in heavy manufacturing. It helps address downtime and maintenance challenges common to harsh environments by offering rugged construction and engineered protection. With IP55 sealing, NEMA standards, and Class F insulation, it sustains operation in dusty, moist, and high‑temperature plants. Operating at 50 or 60 Hz, the motor uses a 4‑pole design for 1800/1500 RPM in a 215T frame, while the XPFC enclosure simplifies installation in explosion‑hazard zones. Originating in the United States and stocked in multiple warehouses, it enables fast, compliant deployments with lower lifecycle costs for US‑based facilities.
Product Information
Extended Description
7BCPX21146T ABB: Severe Duty Motor 10 Hp 190 V (CPX21146T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1765//1465RPM,3PH,60HZ,215T,XP
Invoice Description
10HP,1765//1465RPM,3PH,60HZ,215T,XPFC,F1
Product Name
Explosion Proof Severe Duty
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015220
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof Severe Duty, 10 HP, 1800//1500 RPM, Frame Size 215T, Standard Mounting, 3 Phase, XPFC Enclosure, 230/460//190/380 V,
Short Description
10 HP, 1800//1500 RPM, Frame Size 215T, Standard, 3 PH, XPFC, 230/460//190/380 V
Electrical Data
Frequency (f)
50 Hz | 60 Hz
Output Power
10 Hp | 7.5 Hp
Ambient Temperature
40 °C
IP Class
IP55
Insulation Class
F
Number of Poles (High)
4
Type of Duty
Continuous
Frame Material
Iron
Frame Size
215
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Width
18.125 in
Product Net Weight
252 lb
Gross Weight
252 lb
Standards
NEMA
UNSPSC
26101115
Explosion proof XPFC enclosure with IP55 protection minimizes dust and moisture ingress, reducing safety risk and unplanned downtime in hazardous environments such as refineries and chemical plants. The result is lower maintenance costs and safer, compliant operation across mission-critical processes. The 10 HP, 4-pole design delivers consistent torque and speed for conveyors, pumps, and mixers, supporting stable production lines and reduced process variability in heavy industry. Flexible voltage options—230/460 V and 190/380 V with 50/60 Hz—simplify OEM integration and field service, cutting wiring complexity and spare parts inventory for international installations. The iron frame, 215T size, and insulation class F tolerate elevated ambient temperatures, extending service life in demanding facilities. Ready availability, US-origin manufacturing, and stock across multiple warehouses enable rapid deployment and lower total cost of ownership for projects with tight timelines.
Get a Quick Quote for a ABB 7BCPX21146T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCPX21146T?
Enquire Now
FAQs
Installers should plan for a 215T frame in an XPFC explosion-protected enclosure with IP55 protection. Ensure a 3-phase connection, suitable 50/60 Hz supply, and proper alignment for a 4-pole motor delivering 1800/1500 RPM. The unit's United States origin and stock availability support fast procurement and compliant field installation across US-based facilities.
Yes. The motor is designed as explosion-proof with XPFC enclosure, IP55 sealing, and Class F insulation, making it suitable for hazardous locations such as refineries and chemical plants while maintaining continuous, safe operation.
The motor supports multiple voltage configurations: 230/460 V and 190/380 V, with 50 Hz or 60 Hz operation. It is a 3-phase, 4-pole design rated at 10 HP (approx. 7.5 HP continuous), enabling compatibility with a range of international and domestic power systems.
Warranty returns are required to be managed per the supplier's policy: products under warranty must be returned. For this model, the warranty language is standard across ABB‑supplied gear and motors, and customers should coordinate RMA processes through the supplier or distributor to ensure proper handling.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses (including US and international locations). This availability supports rapid procurement, quick deployment, and reduced project delays for facilities with tight commissioning schedules.
