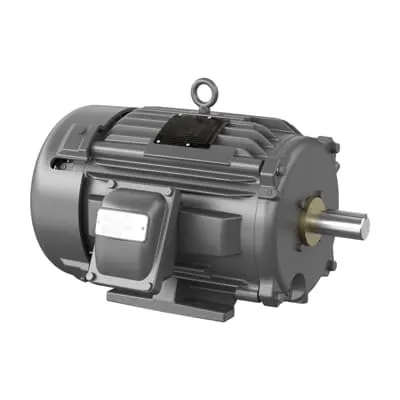

ABB 7BCPX21743T Explosion Proof General Purpose - 7.5 HP
Part Number: 7BCPX21743T
Quick Summary
The 7BCPX21743T motor is an ABB explosion-proof general purpose drive for hazardous industrial environments such as pumps, fans, and conveyors. This design addresses the common challenge of downtime in harsh spaces by combining rugged construction with rapid availability. Built to meet or exceed industry standards, it leverages NEMA-compliant conventions and an insulation class rated for demanding temperatures. In practice, you gain predictable performance, easier maintenance, and faster procurement thanks to stock being available across multiple warehouses. For engineers seeking reliable, globally compatible equipment, this model supports mixed voltage and frequency configurations while delivering consistent torque and smooth operation in demanding settings.
Product Information
Extended Description
7BCPX21743T ABB: Explosion Proof General Purpos 7.50 Hp 190 V (CPX21743T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5//5HP,1770//1470RPM,3PH,60//50HZ
Invoice Description
7.5//5HP,1770//1470RPM,3PH,60//50HZ,213T
Product Name
Explosion Proof General Purpos
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015220
Replaced Product ID (OLD)
7B07K098R561G1
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof General Purpos, 7.5//5 HP, 1800//1500 RPM, Frame Size 213T, Standard Mounting, 3 Phase, 230/460//190/380 V, 60 Hz
Short Description
7.5//5 HP, 1800//1500 RPM, Frame Size 213T, Standard, 3 PH, 230/460//190/380 V
Electrical Data
Frequency (f)
50 Hz | 60 Hz
Output Power
7.50 Hp | 5 Hp
Ambient Temperature
40 °C
Insulation Class
F
Number of Poles (High)
4
Type of Duty
Continuous
Frame Material
Iron
Frame Size
Undefined
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Width
18.125 in
Product Net Weight
195 lb
Gross Weight
195 lb
Standards
NEMA
Feature -> Business Impact -> Application: Explosion-proof construction delivers enhanced safety and compliance in hazardous locations, reducing risk of compounding incidents and enabling safe operation in environments like oil, gas, and chemical processing. Application: compressors and pumps in refineries benefit from reduced maintenance intervals and lower total cost of ownership. Feature -> Business Impact -> Application: 7.5 HP output with 190 V single motor setup supports robust torque for standard conveyor and pump systems, enabling uptime and consistent process flow in automotive and general manufacturing. Feature -> Business Impact -> Application: 50/60 Hz compatibility and 4-pole design provide flexible installation across global facilities, minimizing spare parts inventory and simplifying plant-wide standardization in multi-site operations. Feature -> Business Impact -> Application: Frame size 213T and standard mounting simplify retrofit and alignment with existing mechanical systems, cutting installation time and enabling rapid scale-up in packaging and material handling. Feature -> Business Impact -> Application: Insulation Class F and 40 °C ambient capability extend service life in hot, demanding facilities, reducing unexpected outages during peak production periods. Feature -> Business Impact -> Application: Stocked at multiple warehouses with 0 day lead time minimizes downtime for urgent projects, supporting maintenance shutdowns and project deployment in food & beverage, chemical, and mining sectors.
Get a Quick Quote for a ABB 7BCPX21743T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCPX21743T?
Enquire Now
FAQs
The 7BCPX21743T is designed for standard 213T mounting and three-phase power. It supports 230/460 V and 190 V configurations with 50/60 Hz operation, which facilitates retrofit into existing equipment and aligns with common motor racks. With 0 day lead time stock and multiple warehouse locations, planning installations around downtime becomes more predictable and efficient.
This motor is explicitly described as explosion-proof, suitable for hazardous environments where flammable atmospheres may be present. Its construction aligns with NEMA standards and continuous-duty operation, providing reliable torque and protection against ignition sources in process plants, mining operations, and chemical facilities.
Key specs include 7.5 HP (5 HP continuous rating), 3-phase power, 50/60 Hz, and voltage availability of 190 V along with 230/460 V options. It features an insulation class F and four poles for 1770/1470 RPM operation depending on frequency, making it compatible with a wide range of industrial drives and control systems.
The product is listed as stocked at multiple warehouses with a 0 day lead time, meaning immediate availability for urgent orders. This reduces downtime during maintenance, installation, and expansion projects, especially where rapid deployment is critical for production continuity.
With robust explosion-proof construction, NEMA-standard compliance, and dependable ABB engineering, maintenance intervals can be longer and downtime minimized. The 213T frame and standard mounting simplify replacements and part sourcing, contributing to favorable total cost of ownership and faster return on investment in facilities with hazardous locations and demanding processes.
