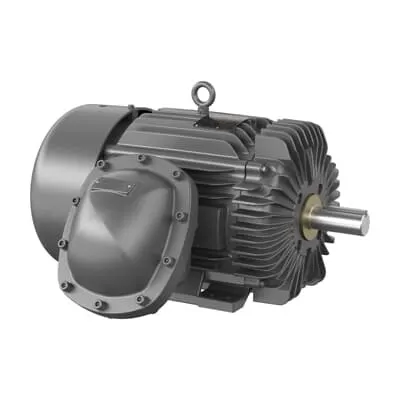

ABB 7BCPX282546T Motor - Explosion Proof Severe Duty
Part Number: 7BCPX282546T
Quick Summary
ABB 7BCPX282546T is a severe duty motor designed for demanding continuous-duty applications in hazardous locations. Engineers often struggle with uptime, maintenance costs, and safety compliance when sourcing explosion-protected motors. This model aligns with IP55 protection, NEMA standards, and Class F insulation, supporting rugged operation with a 284T frame and XPFC enclosure, plus dual voltage options. With 25 HP capability and stock availability from multiple US and international warehouses, it reduces procurement lead times and simplifies integration for 3-phase systems at 230/460 V or 190/380 V, 50/60 Hz.
Product Information
Extended Description
7BCPX282546T ABB: Severe Duty Motor 20 Hp 190 V (CPX282546T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1775//1475RPM,3PH,60HZ,284T,XP
Invoice Description
25HP,1775//1475RPM,3PH,60HZ,284T,XPFC,F1
Product Name
Explosion Proof Severe Duty
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015230
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof Severe Duty, 25 HP, 1800//1500 RPM, Frame Size 284T, Standard Mounting, 3 Phase, XPFC Enclosure, 230/460//190/380 V,
Short Description
25 HP, 1800//1500 RPM, Frame Size 284T, Standard, 3 PH, XPFC, 230/460//190/380 V
Electrical Data
Frequency (f)
50 Hz | 60 Hz
Output Power
20 Hp | 25 Hp
Ambient Temperature
40 °C
IP Class
IP55
Insulation Class
F
Number of Poles (High)
4
Type of Duty
Continuous
Frame Material
Iron
Frame Size
284
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Width
32.5 in
Product Net Weight
506 lb
Gross Weight
506 lb
Standards
NEMA
UNSPSC
26101115
Explosion-Proof XPFC enclosure and 284T frame deliver robust protection and rugged mounting for hazardous environments, increasing uptime and reducing field failures in chemical plants and oil/gas facilities. Dual voltage support of 230/460 V or 190/380 V simplifies panel design and minimizes transformer needs, lowering installation costs and accelerating project schedules in industrial settings. IP55 protection and Class F insulation enable dependable operation under dust, moisture, and elevated temperatures, which translates to lower maintenance cycles and longer motor life in outdoor or harsh sites. Nationwide and international stocking, with 0-day lead times, improves spare-part availability and reduces downtime in OEM assembly lines and service shops. The NEMA-aligned construction and 4-pole, continuous-duty design further boost reliability, reducing total cost of ownership across the motor’s life cycle. Compatibility with XPFC enclosure standards ensures straightforward retrofits and easier code compliance in regulated industries.
Get a Quick Quote for a ABB 7BCPX282546T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCPX282546T?
Enquire Now
FAQs
This motor uses a 284T frame with an XPFC explosion-proof enclosure suited for 3-phase systems. Plan for mounting in hazardous locations, ensure correct cable entry and enclosure sealing, and verify compatibility with 230/460 V or 190/380 V supplies. The 4-pole design delivers 1800/1500 RPM depending on frequency, and installation should follow applicable NEMA and IP55 guidelines for safe operation.
The motor supports 50/60 Hz operation and dual voltage options of 230/460 V or 190/380 V, reducing the need for dedicated transformers and simplifying starters or VFD selection. When designing the drive, match the supply voltage to the motor windings and ensure the drive’s output supports 4-pole speed with correct protection ratings for hazardous environments.
Yes. It features an explosion-proof XPFC enclosure suitable for hazardous locations, IP55 ingress protection, and insulation Class F. It also aligns with NEMA standards for rugged industrial use. Verify site requirements for your specific jurisdiction, but these attributes support compliant operation in many chemical, oil/gas, and mining facilities.
Maintenance should follow standard severe-duty motor practices: regular inspection of wiring terminations, bearing condition checks, and insulation resistance testing per manufacturer guidelines. Warranty terms require returning the product if a defect is discovered within the specified period; always reference current ABB warranty documentation for exact coverage and claim procedures.
Lead time is listed as 0 days, and the product is stocked at multiple warehouses, including locations in the United States and China. This network supports rapid sourcing, reduced transit times, and easier distribution for global OEMs and service teams seeking quick deployment in hazardous environments.
