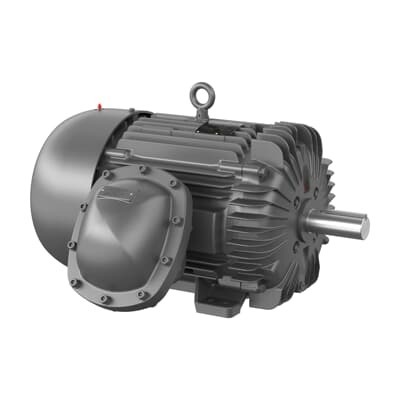

ABB 7BCPX32546T Severe Duty Motor - Explosion Proof XPFC
Part Number: 7BCPX32546T
Quick Summary
ABB 7BCPX32546T Severe Duty Motor powers heavy-duty pumps and conveyors in challenging locations. Maintenance windows and downtime costs compound risk when equipment fails in remote or hazardous environments. This drive meets IP55 protection, insulation class F, and NEMA guidelines, with explosion-proof XPFC options, supporting safety and reliability. For buyers, the motor's 40 to 50 hp output, 50/60 Hz compatibility, and stock availability reduce project lead times and total cost of ownership while enabling consistent performance across global sites. With regional stock in the United States and Asia, engineers can plan one-piece deliveries and minimize on-site modifications. And the 4-pole, continuous-duty rating aligns with typical process-load profiles for long-life operation.
Product Information
Extended Description
7BCPX32546T ABB: Severe Duty Motor 40 Hp 190 V (CPX32546T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,1775//1475RPM,3PH,60HZ,326TY,X
Invoice Description
50HP,1775//1475RPM,3PH,60HZ,326TY,XPFC
Product Name
Explosion Proof Severe Duty
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015230
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof Severe Duty, 50 HP, 1800//1500 RPM, Frame Size 326Ty, Standard Mounting, 3 Phase, XPFC Enclosure, 230/460//190/380 V
Short Description
50 HP, 1800//1500 RPM, Frame Size 326Ty, Standard, 3 PH, XPFC, 230/460//190/380 V
Electrical Data
Frequency (f)
50 Hz | 60 Hz
Output Power
40 Hp | 50 Hp
Ambient Temperature
40 °C
IP Class
IP55
Insulation Class
F
Number of Poles (High)
4
Type of Duty
Continuous
Frame Material
Iron
Frame Size
326
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Width
32.5 in
Product Net Weight
790 lb
Gross Weight
790 lb
Standards
NEMA
UNSPSC
26101115
Feature a Explosion-Proof XPFC enclosure and severe-duty design provides enhanced safety and reliability in hazardous environments, reducing risk of ignition and equipment failure for critical processes. Business impact is improved compliance and uptime, enabling pumps, conveyors, and mixers to run with confidence in chemical, oil & gas, and mining applications. Application includes process lines and material handling where explosive atmospheres are present. Feature b 40-50 HP output with 50/60 Hz compatibility and a 4-pole configuration delivers robust torque and flexible speed for varying load profiles; the business impact is lower energy waste and reduced gearbox wear, supporting efficient plant operations. Application spans water treatment, bulk handling, and refinery support systems. Feature c IP55 protection and Insulation Class F withstand dust, moisture, and elevated temperatures up to 40 C; this improves maintenance intervals and reduces unplanned downtime in wash-down or outdoor environments. Application in outdoor yards, truck-loading bays, and separated plant sections is common. Feature d Wide voltage options 230/460 | 190/380 V enable global deployments without rewiring or transformers, cutting installation time and cost. Application includes multinational sites and OEM integrations where regional power supplies vary. Feature e Iron frame construction and a 326 frame ensure durability under heavy loads; the business outcome is longer service life and predictable performance. Application across mining, steel, and paper industries where rugged equipment is standard. Feature f Ready-to-ship stock at multiple warehouses offers fast delivery and project continuity, minimizing downtime during ramp-up and maintenance windows. Application for large-capacity projects and retrofit work where timely availability matters.
Get a Quick Quote for a ABB 7BCPX32546T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCPX32546T?
Enquire Now
FAQs
The 7BCPX3254646T is an explosion-proof XPFC-enclosed, 4-pole, three-phase motor rated for continuous duty with IP55 protection and Insulation Class F. When installing, ensure proper clearance for cooling, suitable seismic/mounting provisions, and adherence to local NEC/NEMA guidelines. Use appropriate fasteners and wiring methods for 230/460 or 190/380 V configurations and verify compatibility with your drive controller.
This motor supports 50 Hz and 60 Hz operation with dual voltage options: 230/460 V or 190/380 V. It is a 4-pole, three-phase design delivering 40 HP at the lower range and 50 HP at the higher range, suitable for continuous duty in demanding industrial processes.
Yes. The 7BCPX3254646T is designed for continuous duty with an IP55 enclosure and Insulation Class F, making it appropriate for environments with dust, moisture, and elevated temperatures. Its heavy-frame construction further supports long life in demanding applications like pumps, conveyors, and fans.
The motor adheres to NEMA-related protection and performance expectations and is built as explosion-proof XPFC with IP55 rating. It is manufactured in the United States and is intended for use in hazardous or demanding industrial environments, aligning with typical regulatory and safety requirements for severe-duty motors.
Lead time is listed as 0 day, and the motor is stocked at multiple warehouses across regions including the United States and China. This supports rapid deployment, minimizes supply-chain risk, and helps meet tight project deadlines for retrofits or new installations.
