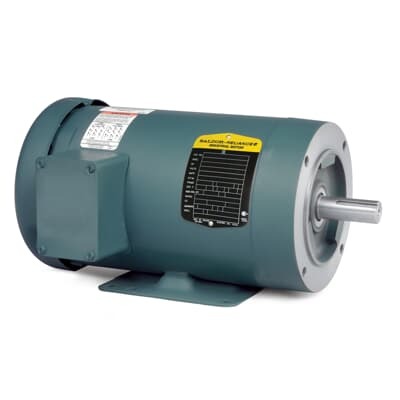

ABB 7BCSPM3558T Definite Purpose Motor - IE3 Premium
Part Number: 7BCSPM3558T
Quick Summary
ABB 7BCSPM3558T Definite Purpose motor delivers 2 HP at 230 V for OEM equipment. Engineers often wrestle with inconsistent performance and long lead times when sourcing non-standard motors. This model carries CSA and UR certifications and aligns with NEMA TEFC enclosure standards. With rugged IE3 premium efficiency, stock availability across multiple warehouses, and simple mounting options, it offers lower operating costs and faster time-to-production for industrial applications.
Product Information
Extended Description
7BCSPM3558T ABB: Definite Purpose 2 Hp 230 V (CSPM3558T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1765RPM,3PH,60HZ,145TC,3542M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CSPM3558T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYY100
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CSPM3558T
Gross Volume
3496.049 inÂł
Gross Weight
55 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F3
Insulation Class
F
Invoice Description
2HP,1765RPM,3PH,60HZ,145TC,3542M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, (CSPM3558T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
89 %
Product Name
Definite Purpose
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
55 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5 A | 2.5 A
Rated Efficiency
87.50 %
Rated Speed
1800 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
Frame Size 145Tc, C-Face, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
K
Voltage Rating
230 V | 460 V
Feature: 2 HP, 230 V, 3-phase operation with a 60 Hz frequency and a synchronous speed of 1800 r/min. Benefit: Delivers reliable torque and consistent performance in standard industrial cycles, enabling conveyors, pumps, and fans to maintain throughput with reduced energy waste. Application: Use in mixed-load OEM equipment requiring dependable single-speed drives. The 4-pole design supports common line-powered applications in manufacturing lines.Feature: TEFC enclosure and 145TC frame with foot-mounted mounting. Benefit: Provides robust protection in harsh environments and simplifies installation with common grouting and mounting hardware. Application: Suitable for floor-mounted drives in packaging lines and material handling systems.Feature: Regreasable bearings and 0.88 in shaft diameter. Benefit: Lower maintenance costs and extended service life due to predictable lubrication cycles and solid shaft interfaces. Application: Ideal for continuous-duty operations where uptime is critical in process facilities.Feature: Direct on line starting and 1.0 service factor. Benefit: Quick, straightforward startup with reliable starting torque, reducing wiring complexity and control logic. Application: Suitable for belt conveyors and pumps that require immediate load engagement.Feature: IE3 Premium efficiency and NEMA compatibility. Benefit: Energy savings over the motor’s life and easier compliance with energy programs, improving total cost of ownership. Application: Broad deployment across motors-driven lines in manufacturing and distribution centers.
Get a Quick Quote for a ABB 7BCSPM3558T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCSPM3558T?
Enquire Now
FAQs
Yes. The CSPM3558T is designed for horizontal mounting with a foot-mounted base and a C-Face drive end flange. It uses a 145TC frame and TEFC enclosure, which aligns with common industrial mounting patterns and simplifies retrofits on existing lines.
The motor is a 2 HP, 230 V, 3-phase device rated for 60 Hz operation with 1800 r/min synchronous speed. It features 4 poles, a 1.0 service factor, and a 0.88 in shaft diameter. Efficiency is IE3 Premium, and lubrication is regreasable, supporting predictable long-term performance.
Absolutely. With continuous-duty ratings, direct-on-line starting, TEFC enclosure, and a robust 145TC frame, this motor is well-suited for conveyors, pumps, and fans in manufacturing and process environments, delivering reliable torque while minimizing maintenance interruptions.
The CSPM3558T carries CSA and UR certifications and adheres to NEMA standards for TEFC enclosures. These certifications support safe operation, regulatory compliance, and straightforward acceptance in North American facilities.
IE3 Premium efficiency reduces energy consumption, while a regreasable bearing design and simple direct-on-line start minimize maintenance and startup complexity. Coupled with readily stocked parts and global warehouse coverage, this motor lowers downtime and accelerates project timelines, improving total cost of ownership.
