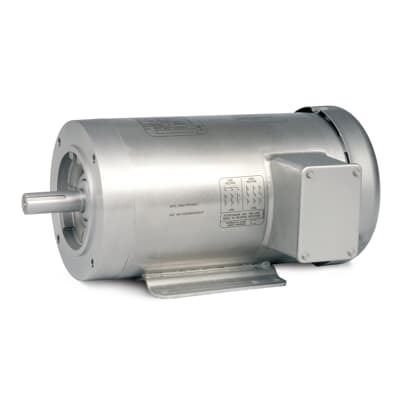

ABB 7BCSSEWDFM3554T Motor - IE3 Premium TEFC
Part Number: 7BCSSEWDFM3554T
Quick Summary
ABB 7BCSSEWDFM3554T Motor is a 1.5HP, 1765RPM washdown-duty AC motor for demanding industrial use. Operators often struggle with downtime caused by washdown exposure, corrosion, and inconsistent performance. This model carries CSA and UR certifications, IE3 efficiency, and IP65 TEFC protection to meet rugged service conditions. Coupled with a dual voltage rating of 460V/230V and a 145TC stainless steel frame, it eases installation and lifecycle costs. In practice, this design supports lower energy bills, predictable maintenance, and standardization across plant lines. The result is reliable operation that helps teams meet production targets while simplifying procurement and spare-parts planning.
Product Information
Extended Description
7BCSSEWDFM3554T ABB: 460 V (CSSEWDFM3554T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1765RPM,3PH,60HZ,145TC,3534M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CSSEWDFM3554T
Certification Agency
CSA | CSA EEV | NEMA PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYZ330
Direction of Rotation
Both sides
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Explosion Proof Group Class
NONE
Frame Material
Stainless Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
CSSEWDFM3554T
Gross Volume
3298.281 in³
Gross Weight
62 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F2
IP Class
IP65
Insulation Class
ICLH
Invoice Description
1.5HP,1765RPM,3PH,60HZ,145TC,3534M,TEFC
Lubrication
For life
Made To Order
No
Medium Description
Frame Size 145Tc, 3 Phase, TEFC Enclosure, (CSSEWDFM3554T)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
145TC
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Speeds
Single Speed
Order Multiple
1 piece
Power Factor
74 %
Product Name
LV Washdown Duty Motors
Product Net Depth / Length
19 in
Product Net Height
12.625 in
Product Net Weight
62 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.3 A | 2.15 A
Rated Efficiency
88.5 %
Rated Speed
1,765 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.875 in
Short Description
Frame Size 145Tc, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
S1
UNSPSC
26101112
Voltage Code
M
Voltage Rating
460 V | 230 V
Feature: IE3 Premium efficiency yields lower power draw and cooler operating temperatures. Business impact: energy savings, reduced cooling load, and longer motor life. Application: ideal for high-duty cycles on conveyors, material handling, and washdown areas in food and beverage lines. Feature: TEFC enclosure with IP65 protection and a stainless steel frame. Business impact: protection against moisture and corrosion, lower maintenance frequency, and extended mean time between failures. Application: hygienic environments, washdown zones, and damp industrial spaces. Feature: Dual voltage rating of 460V/230V with 3-phase operation. Business impact: installation flexibility and reduced wiring changes during plant expansions. Application: multi-site facilities seeking common motor platforms. Feature: Direct On Line starting for a 4-pole, 1765 r/min design. Business impact: simple control schemes, faster commissioning, and lower startup costs. Application: line motors on conveyors and packaging lines. Feature: CSA EEV, UR, and NEMA Premium certifications with 6205 bearings and IP65 TEFC. Business impact: regulatory compliance, proven reliability, and durable bearing life. Application: regulated environments and long-term maintenance planning. Feature: Frame 145TC, stainless steel frame material, 1.5HP rating, and 60Hz operation. Business impact: compatibility with common mounting footprints and steady performance in standard plant power systems. Application: retrofits and new installations across industrial processes.
Get a Quick Quote for a ABB 7BCSSEWDFM3554T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCSSEWDFM3554T?
Enquire Now
FAQs
This motor uses a 145TC frame and rigid motor base, with a TEFC enclosure rated IP65. It supports 460V/230V dual voltage and Direct On Line starting, so verify mounting alignment, safe shutdown clearance, and a compatible rigid base. Ensure clean, splash-appropriate surroundings and proper shielded wiring for 60 Hz service.
IP65 TEFC enclosure provides ingress protection against dust and water jets, protecting windings and bearings in wet, washdown environments. Stainless steel construction further resists corrosion, reducing maintenance cycles and extending motor life in food, beverage, and pharmaceutical lines.
Yes. The 145TC frame, stainless steel construction, and IP65 protection make it well suited for washdown zones in food and beverage processing. CSA EEV and UR certifications support regulatory compliance, while IE3 efficiency helps reduce energy use on continuous-duty lines.
The motor carries CSA EEV and UR certifications and is rated as NEMA Premium with IE3 efficiency. These standards support safety, reliability, and energy performance in regulated industries, aiding audit readiness and procurement approvals.
With IE3 efficiency and a durable IP65 TEFC build, annual energy costs are reduced and downtime is minimized due to fewer maintenance cycles. The stainless steel frame and robust bearings (6205) extend service life, simplifying spare-parts planning and improving overall equipment uptime.
