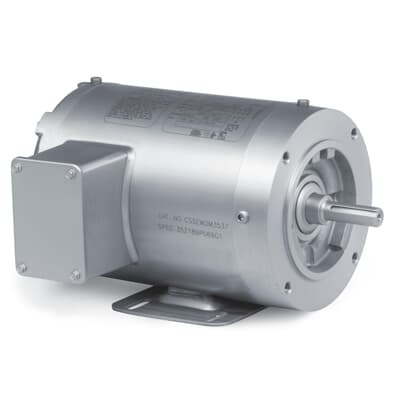

ABB 7BCSSEWDM3545 Motor - Premium Efficiency (NEMA)
Part Number: 7BCSSEWDM3545
Quick Summary
ABB 7BCSSEWDM3545 is a high-efficiency washdown motor designed for heavy-duty industrial lines. Operators and maintenance teams confront corrosion, aggressive cleaning cycles, and downtime in demanding environments. This model carries CSA and UR certifications, an IP65 TENV enclosure, and Premium Efficiency (NEMA 12-12), ensuring reliable operation across harsh facilities while meeting regulatory expectations. With a 56C frame, stainless steel construction, 1 HP rating, and 3-phase 60 Hz operation, it offers flexible voltage options (460 V, 230 V, 208 V) and straightforward installation. These features translate to lower energy costs, simpler maintenance, and longer motor life in target industries such as food and beverage, packaging, and logistics.
Product Information
Extended Description
7BCSSEWDM3545 ABB: 460 V (CSSEWDM3545)
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,3450RPM,3PH,60HZ,56C,3524M,TENV
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CSSEWDM3545
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYZ189
Direction of Rotation
Both sides
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TENV
Explosion Proof Group Class
NONE
Frame Material
Stainless Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CSSEWDM3545
Gross Volume
3298.28 in³
Gross Weight
59 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
IP Class
IP65
Insulation Class
ICLH
Invoice Description
1HP,3450RPM,3PH,60HZ,56C,3524M,TENV,F1,N
Lubrication
For life
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
56C
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Speeds
Single Speed
Order Multiple
1 piece
Power Factor
80 %
Product Name
LV Washdown Duty Motors
Product Net Depth / Length
19 in
Product Net Height
12.625 in
Product Net Weight
59 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.2 ... 2.8 A | 1.4 A
Rated Efficiency
82.5 %
Rated Speed
3,450 r/min
Replacement Product ID (NEW)
7BCFSWDM3545-E
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.625 in
Standards
NEMA
Starting of Motor
Direct On Line
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
S1
UNSPSC
26101112
Voltage Code
R
Voltage Rating
460 V | 230 V | 208 V
Feature: Premium Efficiency 82.5% and a 1.25 service factor. Impact: Reduces energy consumption and enhances load-handling capability, lowering energy costs and improving cooling efficiency in continuous-duty lines. Application: Food processing, beverage packaging, and industrial conveyors requiring predictable power with minimal downtime. The high efficiency also supports compliance with IE Class expectations and NEMA Premium requirements. Feature: IP65 enclosure and stainless steel frame. Impact: Superior washdown resistance and corrosion protection, extending service life in CIP environments. Application: Sanitary process lines, meat and dairy processing, and pharmaceutical packaging lines. Feature: 56C frame and rigid base with a 0.625 in shaft. Impact: Easy retrofit and reliable alignment with standard motor drives, reducing installation time and risk. Application: Replacing legacy 56C motors in packaging and material handling. Feature: 3-phase, 60 Hz operation with voltage options 460/230/208 V; Direct On Line start. Impact: Flexible power sourcing and minimal drive equipment, lowering upfront cost for global facilities. Application: Global manufacturing with mixed electrical systems. Feature: NEMA B design, IC LH insulation, and IP65/TENV protection with lubrication for life. Impact: Robust performance under heat and washdown, reducing maintenance cycles. Application: High-temperature, clean-production lines where uptime matters.
Get a Quick Quote for a ABB 7BCSSEWDM3545
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCSSEWDM3545?
Enquire Now
FAQs
This motor uses a 56C frame with a rigid base and a 0.625 in shaft diameter, designed for straightforward mounting on standard bases and compatible with many existing drive systems, enabling easy retrofits and minimal downtime.
The 7BCSSEWDM3545 supports 460 V, 230 V, and 208 V in 3-phase 60 Hz service, with a rated current around 3.2 to 1.4 A depending on voltage, and a service factor of 1.25 for overload tolerance.
Yes. It features an IP65 enclosure, a TENV insulation class, and a stainless steel frame, delivering corrosion resistance and ingress protection ideal for CIP and sanitary manufacturing lines.
The motor carries CSA and UR certifications, offers NEMA design B, Premium Efficiency (NEMA 12-12), and is built with IP65 protection to support regulatory compliance in safety and energy efficiency.
Energy efficiency reduces operating costs, while lubrication-for-life minimizes maintenance intervals. The combination of robust construction and reliable start-up also lowers downtime, improving overall line productivity in continuous-process environments.
