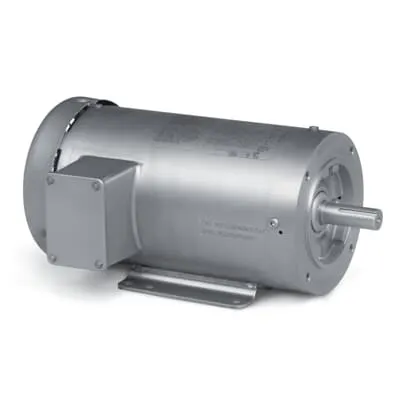

ABB 7BCSSEWDM3613T-5 Motor - NEMA Premium IE3
Part Number: 7BCSSEWDM3613T-5
Quick Summary
ABB 7BCSSEWDM3613T-5 is a washdown-duty motor designed for food processing and packaging lines, delivering reliable performance in sanitize-friendly environments. Maintenance teams struggle with corrosion, buildup, and downtime in harsh washdown zones. This motor carries CSA, UR, and NEMA Premium IE3 certifications to support safety, energy efficiency, and regulatory compliance. Built for 575 V three-phase power with a TEFC enclosure, it helps OEMs shorten installation time while reducing lifecycle costs. This combination of rugged design and verified efficiency supports robust downstream performance and compliant operation in US manufacturing environments. Customers realize measurable gains in motor uptime, reduced cleaning downtime, and favorable energy usage when integrating this model into washdown lines.
Product Information
Extended Description
7BCSSEWDM3613T-5 ABB: 575 V (CSSEWDM3613T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,3500RPM,3PH,60HZ,184TC,3634M,TE
Ambient Temperature
40 °C
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CSSEWDM3613T-5
Certification Agency
CSA | NEMA PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYG560
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Stainless Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
CSSEWDM3613T-5
Gross Volume
6996 in³
Gross Weight
110 lb
Horsepower Rating UL/CSA
5.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Invoice Description
5HP,3500RPM,3PH,60HZ,184TC,3634M,TEFC,F1
Made To Order
No
Medium Description
Frame Size 184Tc, 3 Phase, TEFC Enclosure, (CSSEWDM3613T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
184TC
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Speeds
Single Speed
Order Multiple
1 piece
Power Factor
95 %
Product Name
LV Washdown Duty Motors
Product Net Depth / Length
26.5 in
Product Net Height
16 in
Product Net Weight
110 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.5 A
Rated Efficiency
89.5 %
Rated Speed
3,500 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.125 in
Short Description
Frame Size 184Tc, 3 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China
UNSPSC
26101112
Voltage Rating
575 V
575 V three-phase operation with a TEFC enclosure and a stainless steel frame delivers rugged protection against frequent washdowns. The design minimizes corrosion risk while maintaining performance during high-pressure cleaning cycles. This combination is ideal for sanitary lines in food processing and packaging equipment. IE3 premium efficiency, rated at 89.5 percent with a 0.95 power factor, reduces operating costs over the motor’s life. When applied to conveyors and mixers running at 3,500 rpm, energy savings accumulate across production shifts, lowering total energy expenditure and improving sustainability. Direct On Line starting and a 1.15 service factor enable straightforward integration with standard motor controllers and variable-load profiles. The motor’s robust TEFC design supports reliable startup in demanding environments while keeping wiring and control schemes simple for maintenance teams. Frame size 184TC and shaft diameter 1.125 inches support dependable mounting to common OEM bases and couplings. Combined with stainless steel construction, the motor fits dense plant layouts and reduces modification work during installation. Certifications CSA, UR, and NEMA Premium confirm safety and efficiency compliance, simplifying procurement for regulated industries. Net-weight of 110 pounds and a compact footprint help installers meet space constraints without compromising performance. With a direct-on-line starting method and a 575 V rating, this motor integrates quickly into existing electrical architectures, enabling rapid line commissioning and reduced downtime.
Get a Quick Quote for a ABB 7BCSSEWDM3613T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCSSEWDM3613T-5?
Enquire Now
FAQs
The 7BCSSEWDM3613T-5 is designed for direct use in 575 V three-phase electrical infrastructures. With a 3‑phase configuration, 60 Hz operation, and a Direct On Line starting method, it can be integrated into standard plant power distribution and motor control centers without requiring complex soft-starts or voltage conversion. Its TEFC enclosure plus stainless steel frame support installation in washdown environments, while keeping wiring straightforward for maintenance teams.
This model delivers 5 HP at 3,500 r/min with a 60 Hz frequency and 575 V rating. It draws about 4.5 A under full-load conditions, features a 0.95 power factor, and 89.5 percent efficiency. The motor’s service factor is 1.15, and it uses a 184TC frame with a 1.125 inch shaft diameter. These specs support reliable, high-throughput operation on conveyors and processing equipment.
Yes. The combination of a TEFC enclosure, stainless steel frame, and a washdown-ready design makes it well suited for sanitary environments such as food processing lines and packaging conveyors. Its 575 V three-phase rating supports industrial power networks, while the 5 HP rating and 3,500 r/min speed align with typical conveyor drives and mixer applications in these facilities.
The motor carries CSA, UR, and NEMA Premium IE3 certifications, signaling compliance with recognized safety and energy efficiency standards. This matters for procurement in regulated industries and simplifies qualifying the motor for use in US facilities. The IE3 efficiency designation also translates to lower energy costs and reduced carbon footprint across long-term operation.
Maintenance considerations include monitoring bearing wear and ensuring seals remain intact given washdown exposure. Installation benefits come from a standard 184TC footprint, direct on line starting, and a 575 V supply that fits common electrical infrastructure. ROI is driven by energy savings from IE3 efficiency, reduced downtime due to corrosion resistance, and longer life from the stainless frame and TEFC enclosure, delivering lower lifecycle costs.
