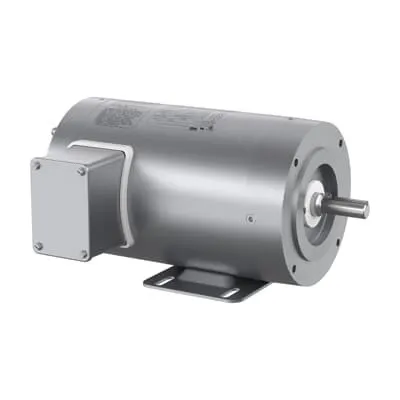

ABB CSSWDM3537 Washdown Motor - 56C, 60 Hz, TENV, CSA UR
Part Number: 7BCSSWDM3537
Quick Summary
ABB CSSWDM3537 Washdown Motor is engineered for hygienic, high-water environments in food processing and pharmaceutical equipment. Engineers frequently contend with corrosion, washdown ingress, and downtime when selecting motors for sanitary lines. This stainless, 56C frame motor features a TENV enclosure and direct-on-line starting to maximize uptime while minimizing maintenance. It carries CSA and UR certifications and aligns with NEMA design standards, helping facilities meet industry requirements with confidence. With 0.5 HP at 60 Hz and voltage options of 208-230/460 V, it delivers reliable torque across conveyors, mixers, and washdown stations. The result is a robust, cost-effective solution that supports compliance, reduces lifecycle costs, and improves overall plant reliability.
Product Information
Extended Description
7BCSSWDM3537 ABB: Washdown Motor 0.5 Hp 208 V (CSSWDM3537)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,3450RPM,3PH,60HZ,56C,3512M,TEN
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CSSWDM3537
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYV814: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CSSWDM3537
Gross Volume
2110.969 inÂł
Gross Weight
36 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.5HP,3450RPM,3PH,60HZ,56C,3512M,TENV,F1
Lubrication
For life
Made To Order
No
Medium Description
Stainless Washdown, 0.5 HP, 3600 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 208-230/460 V, 60 Hz (CSSWDM3537)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
76 %
Product Name
Stainless Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
36 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.9 A | 1.8 A | 0.9 A
Rated Efficiency
70 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 3600 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
208 V | 230 V | 460 V
Stainless washdown construction combined with a 56C frame delivers exceptional corrosion resistance in sanitize-and-clean environments, reducing downtime and maintenance costs over the motor’s life. This design supports heavy washdown cycles common in food and beverage lines and pharmaceutical equipment. Enclosure is designed for reliability in wet plants, with a TENV configuration that protects windings and bearings from moisture ingress. A 0.5 HP, 3450 RPM, 60 Hz, 208-230/460 V three-phase setup ensures consistent torque and speed so conveyors and mixers run smoothly with minimal energy waste. Direct On Line starting simplifies the control scheme, reducing hardware and startup time while maintaining robust performance in moderate-load applications. Mounting options include foot mounted and C-face configurations, enabling flexible, field-friendly installation in compact spaces and retrofit projects. All these elements align with common industry standards, ensuring straightforward compatibility with existing drives and mechanical interfaces while delivering reliable service in harsh environments.
Get a Quick Quote for a ABB 7BCSSWDM3537
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCSSWDM3537?
Enquire Now
FAQs
Yes. The CSSWDM3537 is a 3-phase motor rated for 208-230/460 V operation at 60 Hz. Its 56C frame with C-face and foot mounting supports straightforward installation alongside standard motor drives and control panels, reducing wiring complexity and integration time.
The motor is rated at 0.5 HP with a nominal speed of 3450 r/min at 60 Hz. It achieves a rated efficiency around 70% and is designed for continuous operation with a service factor of 1.15, providing reliable performance for steady-load washdown applications.
Absolutely. The stainless washdown construction, 56C frame, and TENV enclosure make CSSWDM3537 well-suited for food processing and beverage lines where frequent cleaning and high humidity are expected. Its direct-on-line starting and robust NEMA/B-rated design support durable, sanitary conveyors and packaging equipment.
The motor carries CSA and UR certifications and aligns with NEMA design standards. These certifications help ensure regulatory compliance and safety in demanding industrial facilities, especially where stringent sanitation and electrical reliability are required.
The product is actively stocked across multiple warehouses with a 0-day lead time in some regions, enabling rapid fulfillment. Warranty terms indicate standard warranty support with a policy that warranty-related returns must follow the vendor’s warranty process, helping minimize downtime and protect total cost of ownership.
