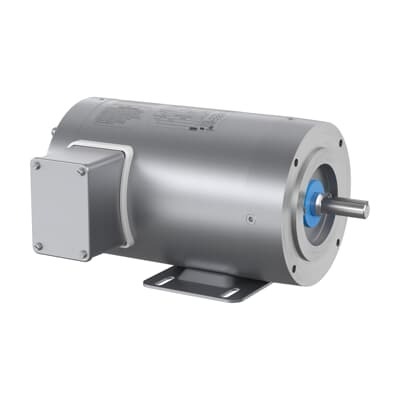

ABB CSSWDM3538-5 Washdown Motor - Stainless Washdown
Part Number: 7BCSSWDM3538-5
Quick Summary
ABB CSSWDM3538-5 washdown motor for hygienic, high-pressure environments. In wet facilities, seal leaks, corrosion, and downtime can erode production lines. CSA and UR safety listings, along with a NEMA design B and a TENV enclosure, help ensure compliance across food & beverage, pharma, and general manufacturing. With 0.5 HP at 575 V and 60 Hz, the motor’s stainless 56C frame supports reliable operation in demanding conditions. Its direct-on-line start and rugged construction deliver lower maintenance and steady performance, while the stock and lead-time options support fast project timelines. Designed for installer ease and scalable integration, it aligns with common ABB and customer specifications.
Product Information
Extended Description
7BCSSWDM3538-5 ABB: Washdown Motor 0.5 Hp 575 V (CSSWDM3538-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
0.5HP,1770RPM,3PH,60HZ,56C,3512M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CSSWDM3538-5
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYV814: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CSSWDM3538-5
Gross Volume
2110.969 inÂł
Gross Weight
37 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
0.5HP,1770RPM,3PH,60HZ,56C,3512M,TENV,F1
Lubrication
For life
Made To Order
No
Medium Description
Stainless Washdown, 0.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 575 V, 60 Hz (CSSWDM3538-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
62 %
Product Name
Stainless Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
37 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
0.77 A
Rated Efficiency
80 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B35V814G200G1
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
N
Voltage Rating
575 V
Feature: Stainless steel frame and washdown-ready construction → Business Impact: Superior corrosion resistance extends service life in wet environments, reducing replacement costs and downtime. Application: Food and beverage processing lines, pharmaceutical washdown areas, and other sanitation-critical applications. Feature: TENV enclosure and 40 °C ambient tolerance → Business Impact: Enhanced reliability in challenging facility conditions, maintaining performance under frequent washdowns. Application: Marine terminals, meat processing, and chemical handling rooms where humidity is high. Feature: 0.5 HP, 575 V, 60 Hz, 3-phase design → Business Impact: Suitable for high-voltage distribution with efficient power delivery, lowering current draw and improving drive compatibility. Application: Conveyor systems, mixers, and packaging lines requiring compact high-voltage drives. Feature: 56C frame, C-face mounting, foot mounting, and 4-pole design → Business Impact: Easy retrofit and flexible installation across standard baseplates, with predictable torque and speed. Application: OEM machinery and retrofit projects in existing washdown lines. Feature: Insulation Class F, Service Factor 1.25, and efficiency ~80% → Business Impact: Improved thermal margin and reliability under continuous duty, reducing maintenance cycles. Application: Long-running process equipment and continuous manufacturing lines. Feature: Direct On Line starting and 1770 r/min rated speed → Business Impact: Instant startup simplicity with minimal components, supporting tight line start requirements. Application: Closed-loop transfer systems and packaging lines needing immediate motor engagement.
Get a Quick Quote for a ABB 7BCSSWDM3538-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCSSWDM3538-5?
Enquire Now
FAQs
This motor uses a 56C frame with C-face drive end and foot mounting, making it compatible with common baseplates and standard OEM installations. It can be integrated into existing washdown conveyors and packaging lines with minimal modification.
It is a 3-phase motor rated at 575 V, 60 Hz, 0.5 HP with a rated speed of 1770 r/min. The motor draws about 0.77 A and offers an insulation class of F with a service factor of 1.25, suitable for continuous duty.
Yes. The stainless steel frame combined with a TENV enclosure is designed for washdown applications, resisting corrosion and enabling reliable operation in wet, humidity-heavy facilities.
The motor carries CSA and UR safety listings and complies with NEMA design code B. It is intended for use in environments that require these industrial safety and design certifications.
Lead time is listed as 0 day, and warranty terms indicate that products under warranty must be returned. This supports fast project timelines and clear post-sale support.
