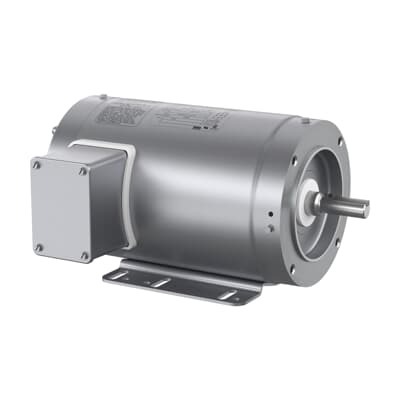

ABB CSSWDM3538-H Stainless Washdown Motor - IP56
Part Number: 7BCSSWDM3538-H
Quick Summary
Washdown motor CSSWDM3538-H from ABB delivers a sanitary, reliable drive for 3-phase equipment in food and beverage lines. Cleaning cycles and harsh washdown environments are a common pain point, driving downtime and uneven product quality when equipment is not resistant to ingress or corrosion. This unit carries IP56 ingress protection, NEMA design B standards, and CSA/UR listings to support safety, sanitation, and regulatory compliance. With a 56HC frame, C-face mounting, and 0.5 HP at 208–230/460 V, it enables straightforward retrofits and scalable installations. Stainless steel construction and a compact, duty-ready design help lower maintenance costs while meeting strict sanitation and performance requirements.
Product Information
Extended Description
7BCSSWDM3538-H ABB: Washdown Motor 0.5 Hp 208 V (CSSWDM3538-H)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
0.5HP,1770RPM,3PH,60HZ,56HC,3512M,T
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CSSWDM3538-H
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LY-000-350: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CSSWDM3538-H
Gross Volume
2110.969 in³
Gross Weight
33 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IP Class
IP56
Insulation Class
F
Invoice Description
0.5HP,1770RPM,3PH,60HZ,56HC,3512M,TENV,F
Made To Order
No
Medium Description
Stainless Washdown, 0.5 HP, 1800 RPM, Frame Size 56Hc, C-Face Mounting, 3 Phase, TENV Enclosure, 208-230/460 V, 60 Hz (CSSWDM3538-H)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56HC
Motor Frame Suffix
CH
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
62 %
Product Name
Stainless Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
33 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.9 A | 1.8 A | 0.9 A
Rated Efficiency
80 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56Hc, C-Face, 3 PH, TENV, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
208 V | 230 V | 460 V
Stainless steel washdown construction provides corrosion resistance and easier cleaning, reducing sanitation downtime and extending service life. The business impact is lower maintenance costs and improved uptime on conveyors and mixers used in food processing and pharmaceutical environments. This motor delivers 0.5 HP at 1770 rpm with 60 Hz three-phase power, enabling reliable torque for mid-load lines such as packaging conveyors and mixer drives, while maintaining consistent process speeds. The 56HC frame with C-face mounting and foot-mounted configuration offers installation flexibility and straightforward retrofits into existing OEM equipment, saving commissioning time and rework. The enclosure is TENV with insulation class F, allowing safe operation in moist environments and enabling longer service intervals with reduced risk of insulation failure. Availability of 208/230/460 V options provides global compatibility, simplifying spare-part planning and reducing stocking complexity. An efficiency of 80% and a 62% power factor support energy-awareness initiatives and electrical code compliance in continuous-duty applications. CSA/UR and NEMA standards further reinforce quality, aiding procurement and regulatory audits. The motor’s 0.63 inch shaft diameter and 6205 ball bearings contribute to robust, maintenance-friendly operation in washdown lines, where frequent cleaning and sterilization processes are common. Overall, this model balances sanitation, reliability, and total cost of ownership for industrial food, beverage, and packaging systems.
