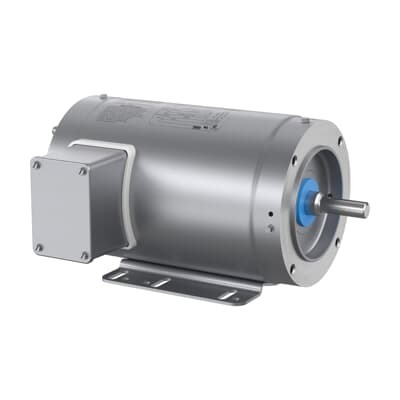

ABB 7BCSSWDM3542-H Stainless Washdown Motor - IP56
Part Number: 7BCSSWDM3542-H
Quick Summary
Washdown Motor delivers reliable 0.75 HP, 3-phase power for hygienic, food, pharma, and industrial washdown environments. Maintenance teams struggle with corrosion, rust, and downtime in wet areas, especially under frequent washdowns and high-pressure cleaning. This motor features IP56 splash protection, a stainless frame, and a TENV enclosure that withstands frequent washdowns while meeting industry standards. With CSA | UR certifications and US-origin manufacturing, it’s suitable for global supply chains. The design supports 208-230/460 V operation and stainless construction, delivering longevity, faster maintenance cycles, and lower total cost of ownership in washdown applications.
Product Information
Extended Description
7BCSSWDM3542-H ABB: Washdown Motor 0.75 Hp 208 V (CSSWDM3542-H)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1765RPM,3PH,60HZ,56HC,3514M,T
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CSSWDM3542-H
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LY-000-350: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CSSWDM3542-H
Gross Volume
2110.969 inÂł
Gross Weight
34 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IP Class
IP56
Insulation Class
F
Invoice Description
.75HP,1765RPM,3PH,60HZ,56HC,3514M,TENV,F
Made To Order
No
Medium Description
Stainless Washdown, 0.75 HP, 1800 RPM, Frame Size 56Hc, C-Face Mounting, 3 Phase, TENV Enclosure, 208-230/460 V, 60 Hz (CSSWDM3542-H
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56HC
Motor Frame Suffix
CH
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
78 %
Product Name
Stainless Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
34 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.36 A | 2.16 A | 1.08 A
Rated Efficiency
82.50 %
Rated Speed
1740 r/min
Replaced Product ID (OLD)
7B35E6083G069G1
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56Hc, C-Face, 3 PH, TENV, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
208 V | 230 V | 460 V
Stainless steel frame and washdown-ready construction deliver corrosion resistance in harsh cleaning environments, reducing maintenance frequency and extending motor life. This translates to lower total cost of ownership for conveyors and processing lines in food, beverage, and pharmaceutical facilities. IP56 splash protection combined with a TENV enclosure keeps internal components safe during frequent washing, minimizing downtime and service interruptions. The design supports reliable starts and steadier operation at 60 Hz with 0.75 HP output, helping pumps and conveyors maintain throughput without overloading. Three-phase power at 208-230/460 V enables seamless integration with standard plant electrical systems, reducing installation time and wiring complexity. A 56HC frame and C-face or foot mounting simplify mounting on existing equipment and spare-parts compatibility, accelerating commissioning. Regulatory compliance is reinforced by CSA/UR listings, US-origin manufacturing, and robust insulation (Class F) to cope with ambient temperatures up to 40 °C, supporting long-term reliability in sanitary environments. Overall, the motor delivers strong performance in continuous duty applications while keeping maintenance predictable and costs predictable.
