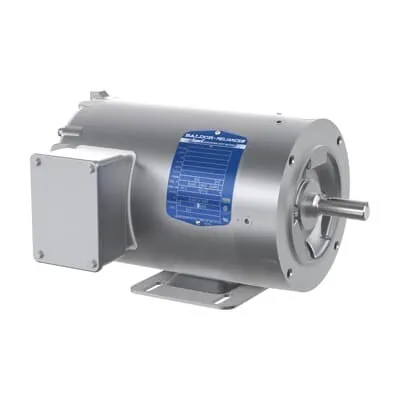

ABB CSWDM3537-5 Washdown Motor - 0.50 HP, 575V, CSA UR
Part Number: 7BCSWDM3537-5
Quick Summary
Washdown Motor CSWDM3537-5 delivers reliable 0.50 HP performance for washdown environments. Engineered to resist moisture, cleaning sprays, and corrosive residues, it minimizes downtime and maintenance costs. Supported by CSA and UR certifications, NEMA design B, and a 40 °C ambient rating, it meets strict safety and performance standards. With a stainless steel frame, 56C frame, C-face mounting, and quick Direct On Line startup, it integrates easily into existing lines, delivering dependable, paint-free reliability.
Product Information
Extended Description
7BCSWDM3537-5 ABB: Washdown Motor 0.50 Hp 575 V (CSWDM3537-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,3450RPM,3PH,60HZ,56C,3512M,TEN
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CSWDM3537-5
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Drive End Flange Type
C-Face
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
Undefined
Global Commercial Alias
CSWDM3537-5
Gross Weight
37 lb
Insulation Class
F
Invoice Description
.5HP,3450RPM,3PH,60HZ,56C,3512M,TENV,F1
Made To Order
No
Medium Description
Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, (CSWDM3537-5)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.50 Hp
Power Factor
76 %
Product Name
WD - Paint-Free
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
37 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
0.65 A
Rated Efficiency
70 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35S630W038G3
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.63 in
Short Description
Frame Size 56C, C-Face, 3 PH, TENV,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
Voltage Rating
575 V
The stainless steel frame and paint-free construction deliver superior corrosion resistance, extending service life in food, beverage, and pharma production lines while reducing maintenance cycles. The TENV enclosure protects critical components from wash-down spray and humidity, improving reliability in high-pressure cleaning environments. A 56C frame with C-Face mounting simplifies retrofits and new installations, enabling fast alignment and robust mechanical coupling on conveyors and packaging equipment. Electrical design delivers 0.50 HP at 575 V three-phase with 3450 r/min, Direct On Line starting, and a rated current of 0.65 A, translating to compact cabling and straightforward control integration. Certifications such as CSA/UR and NEMA design B support regulatory compliance and traceability for audited facilities. Ready-to-ship stock across multiple warehouses reduces downtime for spare parts and replacements, while the 37 lb weight and 0.63 in shaft diameter simplify handling and mechanical design.
Get a Quick Quote for a ABB 7BCSWDM3537-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCSWDM3537-5?
Enquire Now
FAQs
Begin with horizontal orientation, secure the C-face flange to a solid mount, and align the shaft with the driven equipment. Connect a three-phase 575 V supply, and perform a direct-on-line start. Verify shaft alignment, vibration, and enclosure clearance, then confirm rotation direction. The 56C frame and C-face mounting simplify alignment and bolting to standard bases or adapter kits.
The stainless steel frame provides corrosion resistance, and the paint-free construction minimizes surfaces that harbor residue. The TENV enclosure protects internal components from moisture and spray, while a 40 °C ambient rating supports operation in typical facility washdown conditions. Together, these features sustain reliability and reduce maintenance in food, beverage, and pharmaceutical applications.
The CSWDM3537-5 carries CSA and UR certifications, indicating compliance with safety and performance requirements for electrical equipment. It also aligns with NEMA design B standards, suitable for a wide range of general-purpose, continuous-duty applications. These certifications help meet regulatory expectations in many regions and support qualified procurement decisions.
The motor delivers 0.50 HP at 575 V with three-phase power, running at 3450 r/min. It draws about 0.65 A under full load and uses direct-on-line starting. The shaft diameter is 0.63 in, and the frame is 56C, enabling compact drive solutions and straightforward electrical integration with standard VFDs or direct connections on compatible loads.
Warranty terms indicate warranty return conditions apply if the product is defective. The motor is stocked across multiple warehouses (including US and international locations), with 0 day lead time in many cases, enabling rapid replacements. This reliability supports reduced downtime, predictable maintenance planning, and a positive return-on-investment for critical washdown lines.
