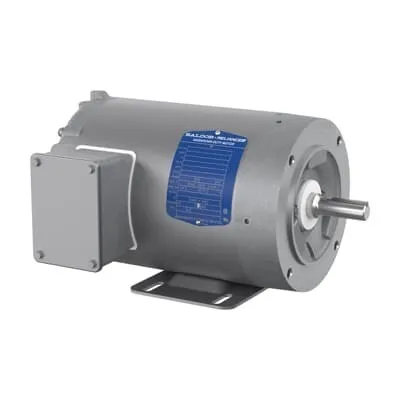

ABB CSWDM3538 Washdown Motor - CSA/UR Certified
Part Number: 7BCSWDM3538-5
Quick Summary
Washdown Motor CSWDM3538 delivers reliable, hygienic drive for washdown environments like food processing. Engineers often struggle with corrosion, downtime, and difficult cleaning in harsh production lines, making maintenance costly and unpredictable. This model carries CSA and UR certifications, a NEMA Design B designation, and a TENV enclosure, aligning with stringent electrical standards. With a 0.5 HP, 3-phase, 60 Hz rating and a stainless steel 56C frame, it provides durable performance while enabling safe, efficient cleaning and easier compliance across regulated facilities.
Product Information
Extended Description
7BCSWDM3538-5 ABB: Washdown Motor 0.5 Hp 575 V (CSWDM3538-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
0.5HP,1770RPM,3PH,60HZ,56C,3512M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CSWDM3538-5
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Drive End Flange Type
C-Face
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
CSWDM3538-5
Gross Weight
33 lb
Insulation Class
F
Invoice Description
0.5HP,1770RPM,3PH,60HZ,56C,3512M,TENV,F1
Made To Order
No
Medium Description
Paint-Free Washdown, 0.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 575 V, 60 Hz (CSWDM3538-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
69 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
33 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
0.7 A
Rated Efficiency
80 %
Rated Speed
1740 r/min
Replaced Product ID (OLD)
7B35S630G200G1
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
575 V
Paint-free washdown construction uses a stainless steel frame and a TENV enclosure to resist corrosion and simplify sanitation, reducing maintenance cycles and downtime while extending motor life in wet environments. The direct-on-line, 3-phase configuration supports straightforward electrical installation, minimizing panel space and wiring complexity for quick commissioning and reliable start-up on busy lines. Foot-mounted base and C-face drive-end flange offer flexible mounting options, enabling easy retrofits and cross-brand compatibility for conveyor drives and packaging equipment. With a NEMA Design B, Insulation Class F, and Service Factor 1.25, the CSWDM3538 delivers predictable torque, overload margin, and robust performance under continuous duty. Operating at 1800 r/min synchronous (1770 r/min actual) with 4-pole design, it delivers steady speed control and energy-efficient operation for high-throughput applications. The motor’s rated current of 1.8 A / 0.9 A and 0.62 power factor support reliable electrical performance, while the 56C frame and 3-speed options simplify integration with existing line equipment and standard belts.
Get a Quick Quote for a ABB 7BCSWDM3538-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCSWDM3538-5?
Enquire Now
FAQs
CSWDM3538 supports multiple mounting configurations for flexibility on conveyors and handling equipment. It offers foot-mounted base with a 56C frame and a C-face drive end flange, enabling horizontal mounting in tight spaces and straightforward retrofits to existing systems. The robust enclosure and stainless steel construction simplify sanitation during maintenance windows and routine line cleaning.
Yes. The CSWDM3538 is rated for 230 V and 460 V, with a 60 Hz supply suitable for global industrial environments. It is a 3-phase motor with a 0.5 HP rating, designed for direct connection to standard industrial VFDs or line power, enabling reliable control on automation lines and packaging equipment.
Ideal for food and beverage processing, pharmaceutical packaging, and other sanitary manufacturing lines, the CSWDM3538 is optimized for wet environments. Its paint-free stainless frame, TENV enclosure, and 56C mounting ensure high hygiene, corrosion resistance, and easy integration with washdown conveyors, mixers, and pumps while maintaining consistent performance.
The CSWDM3538 carries CSA and UR certification, supporting regulatory compliance in North American markets. It conforms to NEMA design standards (NEMA B) and uses a 56C frame with F-class insulation. The presence of a TENV enclosure and compliant mounting options further aids in meeting industry hygiene and safety requirements across verticals.
Maintenance benefits come from a paint-free, stainless construction and sealed bearings designed for washdown environments, reducing corrosion-related service intervals. The motor’s life-lubrication approach and robust design translate to lower downtime and longer service life, improving ROI in continuous-duty lines like packaging and processing where uptime is critical.
