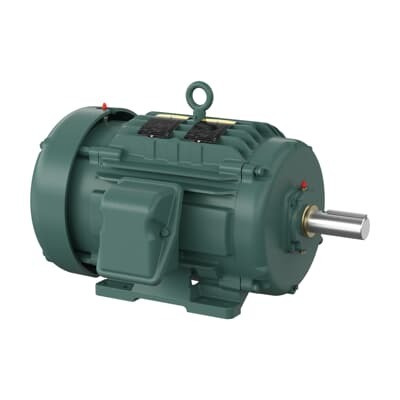

ABB 7BCTM1762T Chiller/Cooling Tower - 20HP, 460V
Part Number: 7BCTM1762T
Quick Summary
ABB 7BCTM1762T is a chiller/cooling tower motor designed for industrial HVAC cooling systems. Engineers often struggle with finding a durable, high-efficiency motor that fits 460 V, two-speed operation, and demanding ambient conditions. This model incorporates UL/CSA certification, CSA|UR listing, and a NEMA design with a TEFC enclosure to support safe, compliant operation. With 20 HP at 1760 r/min and 5 HP at 875 r/min, it helps optimize energy use while reducing lifecycle costs for OEMs and facility managers. Stocked across multiple warehouses with zero-day lead times and robust support, it enables rapid deployment in new builds or retrofits.
Product Information
Extended Description
7BCTM1762T ABB: Chiller/Cooling Tower 20 Hp 460 V (CTM1762T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1770RPM,3PH,60HZ,256T,TEFC,FOO
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CTM1762T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
09LYJ957: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
CTM1762T
Gross Volume
9651.933 in³
Gross Weight
135.624 kg
Horsepower Rating UL/CSA
20.000 Hp | 5.000 Hp
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
F
Invoice Description
20HP,1770RPM,3PH,60HZ,256T,TEFC,FOOT,
Made To Order
No
Medium Description
Chiller/Cooling Tower, 20/5 HP, 1800/900 RPM, Frame Size 256T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (CTM1762T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P | 8P
Number of Poles (High)
8
Number of Poles (Low)
4
Number of Speeds
Two Speed
Order Multiple
1 piece
Output Power
20 Hp | 5 Hp
Product Name
Chiller/Cooling Tower
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
135.624 kg
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
23.6 A | 9.3 A
Rated Efficiency
91 %
Rated Speed
1760 r/min | 875 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
20/5 HP, 1800/900 RPM, Frame Size 256T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min | 900 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
460 V
Two-speed operation is designed to match varying load profiles, delivering energy savings in cooling applications while maintaining performance at both high and low speeds. The 1760 r/min and 875 r/min outputs translate to a 20 HP / 5 HP capability, allowing precise control of condenser loads and chilled water circuits. Enclosed in a TEFC housing, the motor offers reliable operation in environments with dust and moisture exposure common to cooling towers and HVAC installations, reducing maintenance intervals. The 256T frame with a foot-mounted configuration provides compatibility with standard mechanical interfaces and supports straightforward retrofits into existing pump-and-manifold assemblies. Rated at 460 V, 60 Hz, the motor meets common North American plant electrical infrastructure, helping minimize panel upgrades and wiring complexity. UL/CSA certification and CSA|UR listing reinforce compliance with safety and installation codes, while the NEMA design B profile ensures predictable torque characteristics for fan-driven cooling systems. With a 40 °C ambient rating and F insulation, the unit is built for steady performance in modestly hot environments, offering dependable service life and predictable maintenance planning. Immediate stock across multiple warehouses, a 0 day lead time, and a 1 piece minimum order enable rapid procurement for project timelines and urgent repairs, reducing downtime and supporting lean maintenance strategies.
