ABB 7BCTM2276T Chiller/Cooling Tower - IE2 TEAO

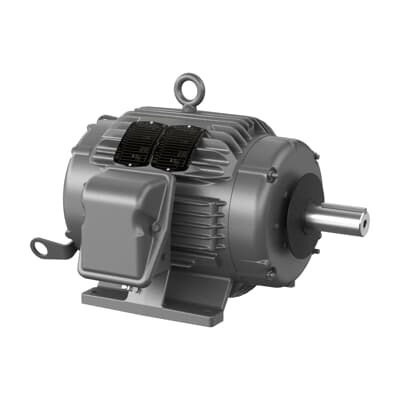

Part Number: 7BCTM2276T
Quick Summary
Chiller/Cooling Tower from ABB delivers reliable cooling for industrial processes across HVAC and process cooling applications. Operators often struggle with integrating equipment into varying voltage supplies and tight spaces, but this unit offers a compact footprint and flexible power options. CSA and UR certifications, along with NEMA-aligned design and IE2 efficiency, help meet regulatory and energy-performance targets. The ABB CTM2276T combines a 7.5 HP motor with a TEAO enclosure and a 254T frame for 3‑phase 60 Hz systems, making integration straightforward. This solution also supports fast procurement from multiple warehouses, reducing downtime and improving project timelines while delivering dependable cooling for chillers, cooling towers, and related equipment.
Product Information
Extended Description
7BCTM2276T ABB: Chiller/Cooling Tower 7.5 Hp 208 V (CTM2276T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1160RPM,3PH,60HZ,254T,0756M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CTM2276T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
07LYN393: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11) | IE2
Electrical Data
Enclosure Type
TEAO
Frame Material
Iron
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
CTM2276T
Gross Volume
9144.346 in³
Gross Weight
179 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,1160RPM,3PH,60HZ,254T,0756M,TEAO,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Chiller/Cooling Tower, 7.5 HP, 1200 RPM, Frame Size 254T, Standard Mounting, 3 Phase, TEAO Enclosure, 208-230/460 V, 60 Hz (CTM2276T
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
72 %
Product Name
Chiller/Cooling Tower
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
179 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
24 A | 21.8 A | 10.9 A
Rated Efficiency
89.50 %
Rated Speed
1160 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
7.5 HP, 1200 RPM, Frame Size 254T, Standard, 3 PH, TEAO, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
K
Voltage Rating
208 V | 230 V | 460 V
Feature: 7.5 HP motor delivering 1160 rpm in a 3‑phase 60 Hz system. Business Impact: Provides substantial cooling capacity with efficient, reliable performance for demanding industrial processes. Application: Ideal for chiller towers and process cooling loops where steady heat rejection is critical. The 89.50% rated efficiency supports lower operating costs over the motor’s lifetime. Feature: 254T frame and TEAO enclosure. Business Impact: Robust, straightforward installation with durable handling in mechanical rooms and outdoor environments under steady temperature regimes. Application: Fits standard mounting footprints, enabling quick swaps and minimal downtime during maintenance. Feature: Wide voltage compatibility 208/230/460 V and direct-on-line starting. Business Impact: Flexible electrical integration across plants with varying power infrastructure, reducing wiring complexity and startup time. Application: Suitable for distributed facilities and retrofit projects needing rapid deployment. Feature: Regreasable lubrication and 1.15 service factor. Business Impact: Extended bearing life and tolerance for startup surges, lowering maintenance costs and unplanned downtime. Application: Supports longer motor life in continuous duty applications common to chillers and cooling towers. Feature: Stocked at multiple warehouses and 0 day lead time. Business Impact: Accelerates procurement and reduces project lead times, improving uptime for critical cooling systems. Application: Beneficial for service teams and OEM projects requiring rapid replacement or replacement parts.
