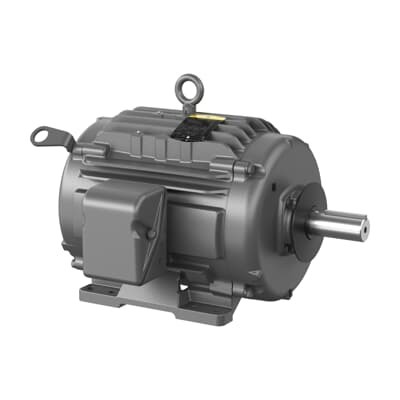

ABB 7BCTM2332T Chiller/Cooling Tower Motor - TEAO Enclosure
Part Number: 7BCTM2332T
Quick Summary
ABB 7BCTM2332T is a chiller/cooling tower motor designed for 10 HP, 3-phase cooling systems. This device delivers reliable operation in demanding HVAC environments, helping ensure uptime even when ambient conditions peak. Operators frequently clash with long lead times, inconsistent stock, and difficult commissioning when replacing aging units. The CTM2332T mitigates these challenges with a 0-day lead time and stock in multiple warehouses, while offering a rugged TEAO enclosure and a durable 256T frame. Certifications such as NEMA design B and CSA/UR-approved components provide confidence in compliance and performance. With 230/460 V flexibility and a robust 60 Hz, 3-phase configuration, it aligns with procurement strategies, installation ease, and long-term total cost of ownership goals.
Product Information
Extended Description
7BCTM2332T ABB: Chiller/Cooling Tower 10 Hp 230 V (CTM2332T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10 AIR OVERHP,1175RPM,3PH,60HZ,256T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309, Sealed Bearing
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CTM2332T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
09LYL877: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11)
Electrical Data
Enclosure Type
TEAO
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
CTM2332T
Gross Volume
14448.906 in³
Gross Weight
124.738 kg
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10 AIR OVERHP,1175RPM,3PH,60HZ,256T,0946
Lubrication
Regreasable
Made To Order
No
Medium Description
Chiller/Cooling Tower, 10 HP, 1200 RPM, Frame Size 256T, Standard Mounting, 3 Phase, TEAO Enclosure, 230/460 V, 60 Hz (CTM2332T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
73 %
Product Name
Chiller/Cooling Tower
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
124.738 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
28.8 A | 14.4 A
Rated Efficiency
89.50 %
Rated Speed
1175 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
10 HP, 1200 RPM, Frame Size 256T, Standard, 3 PH, TEAO, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature: Energy-efficient design with 89.5% efficiency and a service factor of 1.15. This translates to lower operating costs and improved reliability under variable loads in continuous cooling applications. Application: Optimized for HVAC chillers and cooling towers operating at 60 Hz where energy use and lifecycle costs matter. Feature: TEAO enclosure with a rugged iron frame. Business impact: Reduces maintenance needs and simplifies installation in humid, demanding environments. Application: Suited for retrofit projects in industrial HVAC units with space constraints and minimal external cooling requirements. Feature: Dual voltage capability of 230/460 V and 60 Hz operation with a 256T frame. Business impact: Streamlines procurement and installation across multinational facilities and standardizes compatibility with common pump/compressor packages. Application: Fits a wide range of chiller and process cooling equipment using standard 256T footprints. Feature: Foot mounted, horizontal mounting orientation, and F1 mounting position. Business impact: Eases on-site mounting and aligns with typical chiller/pump assemblies, reducing installation time and risk. Application: Ideal for OEMs and retrofit installers seeking straightforward integration. Feature: NEMA design B with CSA/UR certification and USA origin. Business impact: Ensures regulatory compliance, safer sourcing, and quicker qualification for regulated HVAC projects. Application: Appropriate for U.S. and global rollouts requiring recognized design standards. Feature: Regreasable lubrication and robust 256T/12‑pole style details. Business impact: Extends service intervals and improves maintenance planning, lowering total cost of ownership. Application: Practical for facilities prioritizing uptime and predictable maintenance cycles.
