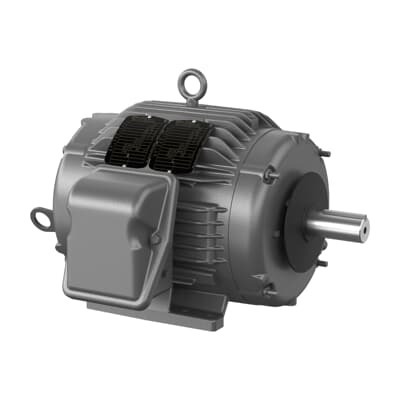

ABB 7BCTM3768T Chiller/Cooling Tower - CSA UR Listed
Part Number: 7BCTM3768T
Quick Summary
ABB 7BCTM3768T Chiller/Cooling Tower is a 5 HP, 208 V three-phase cooling solution designed for industrial HVAC and process cooling needs. Engineers often face downtime and energy waste when selecting mismatched motors for demanding cooling loads. This model delivers UL/CSA rating, NEMA standard compliance, and CSA/UR listing to simplify procurement and ensure reliable operation in harsh environments. With a TEAO enclosure and robust frame, it supports straightforward installation, reduced maintenance, and long-term performance. The solution pairs with standard chillers and cooling towers to optimize system efficiency while meeting demanding industrial specifications and procurement requirements.
Product Information
Extended Description
7BCTM3768T ABB: Chiller/Cooling Tower 5 Hp 208 V (CTM3768T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5 AIR OVERHP,1145RPM,3PH,60HZ,215T,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CTM3768T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
07LYN391: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE2 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEAO
Frame Material
Iron
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
CTM3768T
Gross Volume
9144.346 in³
Gross Weight
206 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5 AIR OVERHP,1145RPM,3PH,60HZ,215T,0736M
Lubrication
Regreasable
Made To Order
No
Medium Description
Chiller/Cooling Tower, 5 HP, 1200 RPM, Frame Size 215T, Standard Mounting, 3 Phase, TEAO Enclosure, 208-230/460 V, 60 Hz (CTM3768T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
72 %
Product Name
Chiller/Cooling Tower
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
206 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
16.3 A | 15 A | 7.5 A
Rated Efficiency
87.50 %
Rated Speed
1155 r/min
Replaced Product ID (OLD)
7B07N391T573H1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
5 HP, 1200 RPM, Frame Size 215T, Standard, 3 PH, TEAO, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
J
Voltage Rating
208 V | 230 V | 460 V
Feature → Business Impact → Application: The 5 HP, 215T frame, 60 Hz, 208-230/460 V three-phase motor delivers premium efficiency (87.50%) and a service factor of 1.15, reducing energy costs and extending motor life in continuous cooling duties. Application: industrial chillers and cooling towers where energy efficiency and dependable start-up matter. Feature → Business Impact → Application: TEAO enclosure simplifies installation and reduces enclosure-related heat management, improving compliance with mounting and installation standards in plant environments. Application: retrofit projects and new builds requiring straightforward electrical integration. Feature → Business Impact → Application: Direct On Line starting and 1.15 service factor provide robust performance under load spikes, minimizing downtime during peak cooling periods. Application: high-load process cooling and HVAC systems with fluctuating thermal demands. Feature → Business Impact → Application: Foot-mounted, horizontal mounting with a 28.625 in length and 18.125 in width offers versatile fit in tight equipment rooms, enabling faster commissioning. Application: retrofits and new equipment where space is at a premium. Feature → Business Impact → Application: Regreasable bearings (6307) and sealed NDE bearing 6206 improve maintenance intervals and reliability in operational environments. Application: extended service intervals in energy-intensive cooling towers. This ABB motor also supports industry-standard dimensions and mounting configurations (frame 215T, 1.38 in shaft) to ensure compatibility with existing drives and gearboxes, reducing integration risk. Long-tail keywords are used naturally here, including 5 HP cooling motor, TEAO enclosure, 60 Hz, 208-230/460 V, and NEMA A design, to align with common search queries in industrial procurement.
Get a Quick Quote for a ABB 7BCTM3768T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCTM3768T?
Enquire Now
FAQs
This model is foot mounted with a horizontal orientation and a frame size of 215T. Dimension references include a product depth of 28.625 in, height of 17.625 in, and width of 18.125 in. Direct On Line starting and TEAO enclosure simplify wiring and cooling integration, and stock is dispersed across multiple warehouses to shorten lead times during retrofit projects.
The ABB 7BCTM3768T is a three‑phase motor rated for 208 V, 230 V, and 460 V operation at 60 Hz. Rated current is 16.3 A, 15 A, or 7.5 A depending on configuration. It delivers 5 Hp with a service factor of 1.15 and a rated speed of 1155 r/min. These specs enable flexible integration with common plant electrical systems.
Yes, the motor carries UL/CSA ratings and CSA/UR listing for reliability and regulatory compliance. It also aligns with NEMA design standards (NEMA A) and uses a TEAO enclosure, supporting standard mounting and installation practices in industrial environments.
The motor uses sealed bearings (6307) and a regreasable lubrication system, which facilitates longer service intervals with routine grease maintenance. Regular checks on shaft seals and mounting alignment help prevent vibration-related wear. Ambient duty up to 40 °C and altitude up to 1000 m should be considered in maintenance planning.
Benefits come from energy efficiency (87.50% rated efficiency) and reduced downtime thanks to robust DOL starting and dependable operation. The combination of TEAO enclosure, NEMA design, and UL/CSA ratings supports longer service intervals and easier procurement, contributing to lower lifecycle costs and faster project payback in industrial cooling applications.
