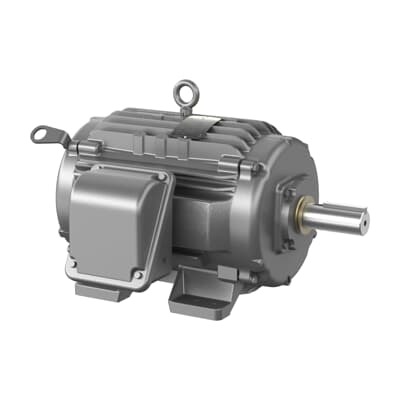

ABB 7BCTM4103T HVAC Motors 25HP 60Hz 284T TEAO
Part Number: 7BCTM4103T
Quick Summary
HVAC Motors from ABB provide reliable air handling and climate control in commercial and industrial systems. They deliver consistent torque and steady speed under typical HVAC loads, helping maintain stable temperatures and comfort. This model addresses common downtime and mismatched parts by offering a robust 25 HP, 230/460 V, 3-phase solution with a compact 284T frame and TEAO enclosure. It also emphasizes energy efficiency with an IE2 rating and sealed 6311 bearings that reduce maintenance and lubrication needs. With a direct, plug‑and‑play installation and a standard lead time, this motor integrates smoothly into existing BOMs and upgrade programs. When uptime, energy costs, and compliance matter, ABB HVAC motors provide a dependable path to long-term value.
Product Information
Extended Description
7BCTM4103T ABB: HVAC Motors 25 Hp 230 V (CTM4103T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1760RPM,3PH,60HZ,284T,0956M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311, Sealed Bearing
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CTM4103T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
09LYG947: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE2 | Energy Efficiency (NEMA 12-11) | Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
CTM4103T
Gross Volume
14448.906 inÂł
Gross Weight
343 lb
Horsepower Rating UL/CSA
25.000 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
25HP,1760RPM,3PH,60HZ,284T,0956M,TEAO,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Frame Size 284T, Standard Mounting, 3 Phase, TEAO Enclosure, (CTM4103T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
84 %
Product Name
HVAC Motors
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
343 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
58 A | 29 A
Rated Efficiency
92.40 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B09G947X998G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
Frame Size 284T, Standard, 3 PH, TEAO,
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
H
Voltage Rating
230 V | 460 V
Frame size 284T with a TEAO enclosure delivers a compact footprint and simplified mounting in standard HVAC equipment. This configuration minimizes installation time and reduces enclosure-related footprint in crowded mechanical rooms. Frame size and enclosure compatibility translate to faster retrofits and easier service access in air handlers, rooftop units, and packaged systems. Electrical design and efficiency balance performance with grid demand. A 25 HP, 230/460 V, 60 Hz, three‑phase configuration delivers strong start‑up torque and reliable operation across typical HVAC loads, while IE2 energy efficiency lowers annual energy consumption and operating costs. Insulation class F supports durable operation in elevated ambient temperatures up to 40 °C and up to 1000 m altitude, which is common in many industrial facilities. Mechanical robustness enhances uptime. The 1.88 in shaft, 6311 sealed bearings, and regreasable lubrication support long service intervals, reduced maintenance labor, and better resistance to vibration and start‑stop cycles found in HVAC duty cycles. This combination suits continuous or intermittent duty without compromising reliability. Control, starting, and compliance simplify integration. Direct on line starting and NEMA design B torque characteristics align with standard starters and protection schemes, while horizontal mounting (F1) and 4-pole operation (1760 r/min) fit common mechanical layouts and drive trains. Reliability, stocking, and serviceability improve lifecycle economics. With stock at multiple warehouses, fast fulfillment reduces downtime and disruption during maintenance or part shortages. The model supports straightforward replacement within Baldor‑Reliance families and maintains predictable performance under varied HVAC duty profiles. If speed control is required, pairing with a VFD is recommended, as this is a single‑speed motor.
Get a Quick Quote for a ABB 7BCTM4103T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCTM4103T?
Enquire Now
FAQs
For a standard 284T frame, plan horizontal mounting (F1) with a TEAO enclosure to optimize airflow and clearance. Use direct on line starting compatible with 3‑phase, 60 Hz power and ensure shaft alignment with a 1.88 in diameter output. The motor’s solid 1760 r/min speed supports typical HVAC fans and blowers, reducing retrofit complexity.
This model operates at 230/460V, 3-phase, 60 Hz, making it suitable for common building electrical distributions. It offers a 25 HP output with a rated efficiency of IE2, supporting energy savings over the motor’s service life. Use a standard 3‑phase starter and ensure appropriate protection for safe, reliable operation.
Yes. The 284T frame, 1760 rpm, TEAO enclosure, and 25 HP output align well with air handlers, rooftops, and packaged HVAC equipment. Its NEMA design B torque, robust bearings, and regreasable lubrication support reliable performance under continuous or intermittent HVAC duty, while keeping maintenance manageable.
The motor carries CSA and UR certifications, with NEMA design alignment and IE2 energy efficiency. Insulation class F and sealed bearings further support reliability in demanding environments. These certifications help ensure regulatory compliance in many industrial and building automation projects.
Maintenance is optimized by regreasable bearings and sealed components, reducing unplanned downtime. The IE2 efficiency rating lowers energy costs, contributing to a favorable ROI over the motor’s lifecycle. Stock availability from multiple warehouses minimizes lead times and spare-part delays, supporting steady uptime in critical HVAC applications.
