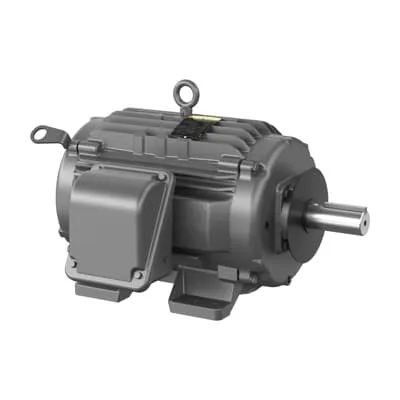

ABB 7BCTM4104T Chiller/Cooling Tower - CSA/UR Certified
Part Number: 7BCTM4104T
Quick Summary
Chiller/Cooling Tower ABB 7BCTM4104T delivers 30 HP cooling for industrial processes and HVAC applications. This solution addresses uptime and efficiency challenges by leveraging a TEAO enclosure, direct-on-line starting, and a robust 286T frame for easy installation. It complies with CSA and UR certifications and aligns with NEMA standards, enabling broad procurement across regions. Designed for 60 Hz, 230/460 V, 3-phase systems, this motor assembly supports reliable, long-life cooling performance while reducing total cost of ownership. For buyers, it translates to predictable maintenance intervals, energy-efficient operation, and a compact footprint suitable for retrofit or new builds in demanding environments.
Product Information
Extended Description
7BCTM4104T ABB: Chiller/Cooling Tower 30 Hp 230 V (CTM4104T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30 AIR OVERHP,1760RPM,3PH,60HZ,286T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311, Sealed Bearing
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CTM4104T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
09LYL879: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11)
Electrical Data
Enclosure Type
TEAO
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
CTM4104T
Gross Volume
14448.906 inÂł
Gross Weight
184.159 kg
Horsepower Rating UL/CSA
30.000 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
30 AIR OVERHP,1760RPM,3PH,60HZ,286T,0964
Lubrication
Regreasable
Made To Order
No
Medium Description
Chiller/Cooling Tower, 30 HP, 1800 RPM, Frame Size 286T, Standard Mounting, 3 Phase, TEAO Enclosure, 230/460 V, 60 Hz (CTM4104T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
84 %
Product Name
Chiller/Cooling Tower
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
184.159 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
72 A | 36 A
Rated Efficiency
92.40 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
30 HP, 1800 RPM, Frame Size 286T, Standard, 3 PH, TEAO, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 30 HP output paired with a 1760 r/min rated speed delivers strong cooling capacity with compact frame size, enabling equipment rooms to stay within space constraints while meeting process cooling demands in manufacturers’ lines. This translates to lower capital spend per kW cooled and easier integration with existing chillers or cooling towers in food & beverage, plastics, or chemical processing facilities. Feature → Business Impact → Application: TEAO enclosure and iron frame construction provide rugged reliability in industrial environments, reducing downtime and maintenance costs, particularly when installed in temperature up to 40 °C and altitude up to 1000 m. This is ideal for outdoor units or semi-indoor installations in water treatment or metalworking plants. Feature → Business Impact → Application: Regreasable bearings and a sealed 6311 bearing design improve lubrication management and motor life, cutting spare parts inventory and service intervals for critical cooling loops in data centers, automotive assembly lines, and pharmaceutical manufacturing. Feature → Business Impact → Application: Direct On Line starting and a 3-phase 60 Hz supply, combined with 230/460 V voltage rating, simplify electrical hookup and protection schemes, reducing installation time and wiring costs for plant engineers. Feature → Business Impact → Application: 286T frame size with a horizontal mounting orientation supports straightforward retrofits and new builds, enabling technicians to align with standard mounting footprints in HVAC chillers and cooling towers. Feature → Business Impact → Application: NEMA design B, 92.40% rated efficiency, and 1.15 service factor provide predictable performance under load variations, supporting energy management goals and compliance with internal efficiency targets in process cooling systems. Feature → Business Impact → Application: 1.88 in shaft diameter and 1800 r/min synchronous speed offer compatibility with common couplings and drivetrain layouts in mechanical drive trains for chillers, reducing alignment time and commissioning risk in manufacturing facilities. Feature → Business Impact → Application: Stocked at multiple warehouses (US and China) and 0-day lead time for non-configured orders improve procurement agility and spare-part availability for critical cooling applications in oil & gas, plastics, and pulp & paper industries.
Get a Quick Quote for a ABB 7BCTM4104T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCTM4104T?
Enquire Now
FAQs
The 7BCTM4104T is foot-mounted with a 286T frame and is intended for 3-phase 230/460 V, 60 Hz electrical systems. It features a horizontal mounting orientation and TEAO enclosure for straightforward installation, direct-on-line starting, and simple coupling to the driven equipment. Ensure space for airflow and standard alignment with the driven shaft.
Key specs include 30 HP output, rated at 1760 r/min with a service factor of 1.15, and a rated current of 72 A / 36 A. The motor uses a TEAO enclosure, 286T frame, and 3-phase 60 Hz operation with a voltage rating of 230 V / 460 V, delivering reliable cooling for industrial installations.
Yes. Its rugged TEAO enclosure, regreasable bearings, and robust NEMA design B configuration support continuous operation in demanding environments. With CSA/UR certification and 0-day lead times for stocked warehouses, it can reduce downtime risk and improve uptime in chilled water loops for food & beverage processing.
The motor carries CSA and UR certifications and adheres to NEMA standards, supporting global procurement. This combination ensures regulatory alignment in North America and compatibility with standard industrial drive systems used in many facilities worldwide.
The 7BCTM4104T employs regreasable bearings and a sealed bearing configuration, lowering maintenance frequency and parts replacement needs. A direct-on-line start and robust frame design contribute to lower lifecycle costs by reducing startup wear and enabling longer service intervals in continuous cooling applications.
