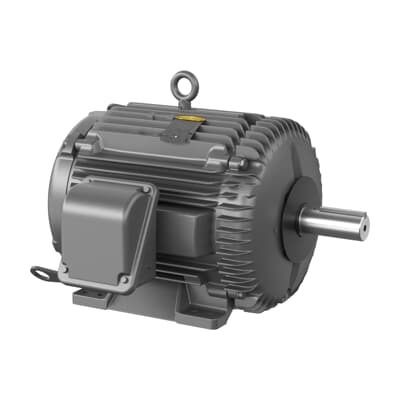

ABB 7BCTM4110T HVAC Motors - CSA/UR Listed, NEMA Compliant
Part Number: 7BCTM4110T
Quick Summary
ABB 7BCTM4110T HVAC Motors deliver efficient 40 Hp, 230 V three-phase performance for commercial climate-control systems. Engineers often confront energy waste and unexpected downtime when motors are not properly matched to load profiles. CSA and UR listings, along with NEMA compliance, provide regulatory assurance and compatibility across a broad range of HVAC equipment. With a TEAO enclosure and a robust 324T frame, these motors simplify installation and maintenance while delivering reliable continuous operation. Stocked at multiple warehouses and supporting direct-on-line starting, they also help reduce total cost of ownership and expedite project timelines.
Product Information
Extended Description
7BCTM4110T ABB: HVAC Motors 40 Hp 230 V (CTM4110T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40 AIR OVERHP,1775RPM,3PH,60HZ,324T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CTM4110T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
12LYH727: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Energy Efficiency (NEMA 12-11)
Electrical Data
Enclosure Type
TEAO
Frame Material
Iron
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
CTM4110T
Gross Volume
18748.226 inÂł
Gross Weight
529 lb
Horsepower Rating UL/CSA
40.000 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
40 AIR OVERHP,1775RPM,3PH,60HZ,324T,1248
Lubrication
Regreasable
Made To Order
No
Medium Description
Frame Size 324T, Standard Mounting, 3 Phase, TEAO Enclosure, (CTM4110T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
85 %
Product Name
HVAC Motors
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
529 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
94 A | 47 A
Rated Efficiency
93 %
Rated Speed
1775 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.13 in
Short Description
Frame Size 324T, Standard, 3 PH, TEAO,
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
G
Voltage Rating
230 V | 460 V
Energy efficiency and cost savings: The motor delivers 93% efficiency with a service factor of 1.15, reducing energy consumption and heat rejection in HVAC systems. This translates to lower operating costs and cooler equipment rooms, improving overall system COP in commercial properties and data-center cooling environments. Application: ideal for air handlers, fan arrays, and rooftop units where steady 60 Hz, 230 V operation is required. Reliability through robust design: The 324T iron frame, 2.13 in shaft, and 6312 ball bearings support continuous operation in demanding environments. This minimizes unscheduled downtime and extends service life in industrial and institutional HVAC installations. Application: suitable for light-commercial chiller zones and packaged units where uptime matters. Easy installation and maintenance: TEAO enclosure with direct-on-line start simplifies wiring and reduces installation time. The regreasable lubrication supports long intervals between servicing, cutting maintenance costs and technician visits. Application: retrofit projects and new builds requiring straightforward maintenance planning. Regulatory compliance and procurement efficiency: CSA/UR listings and NEMA standards alignment streamline audits and cross-vendor compatibility. Application: procurement in regulated facilities and multi-brand HVAC ecosystems. Stock availability and procurement agility: 0-day lead time in certain regions and stocking at multiple warehouses enable rapid replacement. Application: emergency rebuilds and uptime-critical applications in HEVAC systems.
Get a Quick Quote for a ABB 7BCTM4110T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCTM4110T?
Enquire Now
FAQs
This motor uses a TEAO enclosure and is foot mounted on a 324T frame, designed for direct-on-line starting. Plan for a 2.13 inch shaft and a 3‑phase connection at 60 Hz. Ensure alignment with standard 324T mounting patterns and verify bearing lubrication intervals for regreasable bearings to optimize service life and minimize downtime.
The motor delivers 40 Hp at 230 V (3 phase) with a 60 Hz rating, 1775 r/min speed, 4 poles, and a 1.15 service factor. It operates with 93% efficiency and supports a rated current of 94 A (in) / 47 A (out). These specs support reliable, energy-efficient operation in air handlers, fans, and rooftop units while maintaining regulatory and maintenance compatibility.
Yes. The 324T frame, TEAO enclosure, 3‑phase 60 Hz design, and direct-on-line starting are well-suited for air handling units, rooftop units, and packaged HVAC systems. The foot-mount configuration and 2.13 inch shaft diameter simplify mounting and coupling to typical HVAC drive systems, keeping noise and vibration within acceptable limits for occupied spaces.
The motor is CSA and UR listed and adheres to NEMA standards, providing regulatory assurance for safety, performance, and compatibility across multiple regions. These certifications facilitate smoother procurement, easier audits, and reliable performance within regulated facilities such as hospitals, data centers, and commercial convectors.
Regreasable lubrication supports extended intervals between servicing, reducing maintenance costs. The 1.15 service factor and 93% efficiency improve uptime and energy savings, contributing to lower total cost of ownership. With strong stock availability and 0-day lead times in several warehouses, rapid replacement minimizes downtime and protects ROI in uptime-critical HVAC deployments.
