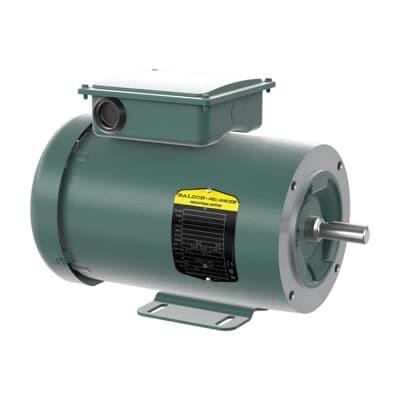

ABB 7BCUHL3518 Unit Handling Motors - TEFC 56C
Part Number: 7BCUHL3518
Quick Summary
Unit Handling Motors from ABB, model 7BCUHL3518, deliver compact single‑phase torque for automated material handling and conveyor systems. Designers often face long lead times and spec mismatches that stall line upgrades. This motor features CE, CSA, UR and WEEE certifications, with a TEFC enclosure and a 56C frame, ensuring safe operation and long service life in demanding environments. Its 115 V supply and 60 Hz rating, combined with easy stocking across multiple warehouses, translates to faster procurement and lower total cost of ownership.
Product Information
Extended Description
7BCUHL3518 ABB: Unit Handling Motors 0.50 Hp 115 V (CUHL3518)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5/.37KWHP,1740RPM,1PH,60HZ,56C,351
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
CUHL3518
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
35LYX061
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CUHL3518
Gross Volume
2110.969 in³
Gross Weight
37 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F3
Insulation Class
F
Invoice Description
.5/.37KWHP,1740RPM,1PH,60HZ,56C,3518LC,T
Lubrication
Regreasable
Made To Order
No
Medium Description
Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, (CUHL3518)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.50 Hp
Power Factor
70 %
Product Name
Unit Handling Motors
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
37 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7 A | 3.45 A | 3.5 A
Rated Efficiency
66 %
Rated Speed
1740 r/min
Replaced Product ID (OLD)
7B35E6093G588
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
Frame Size 56C, C-Face, 1 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
M
Voltage Rating
115 V | 208 V | 230 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Voltage versatility and footprint compatibility simplify procurement and installation. The motor supports 115 V, 208 V, and 230 V at 60 Hz, yet retains a compact 56C frame with TEFC enclosure for drop-in replacements in conveyors and feeders. High reliability and efficiency translate to measurable performance gains. With 0.50 HP and 66% efficiency, it delivers sufficient torque for single‑phase handling tasks while keeping energy use predictable. Its 1.15 service factor provides a safety margin during startup and peak loads in demanding lines. Durable construction includes a 56C frame, C‑face drive end, and horizontal mounting orientation that align with common plant footprints. The TEFC enclosure protects critical components in dusty or humid environments, reducing field failures. Maintenance is simplified by regreasable bearings and a 0.63 in shaft diameter, enabling longer service intervals before bearing replacement. Direct-on-line starting minimizes wiring and control hardware, speeding up line upgrades. Availability is a strategic advantage, with 0 day lead time and stock at multiple warehouses worldwide, including US and China locations. Certified RoHS compliance plus CE, CSA, UR and WEEE markings support regulatory compliance across global manufacturing sites.
Get a Quick Quote for a ABB 7BCUHL3518
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCUHL3518?
Enquire Now
FAQs
This motor uses a 56C frame with TEFC enclosure and can be mounted horizontally in an F3 position with a C‑Face drive end. It is designed for foot mounting and aligns with standard plant footprints, simplifying installation and reducing the need for custom adapters on conveyor and feeder lines.
The unit supports 115 V, 208 V, and 230 V at 60 Hz in a single‑phase configuration, rated at 0.50 HP with a rated current around 7 A, 3.45 A, or 3.5 A depending on voltage. This multi‑voltage capability eases integration across different panel systems and reduces the number of different stock SKUs required on site.
Yes. It is rated for continuous duty with a service factor of 1.15, providing a margin for startup and peak loads. The motor’s 1740 r/min speed (with a synchronous 1800 r/min) and 66% efficiency profile support reliable operation in packaging and material handling applications.
The motor carries CE, CSA, UR, and WEEE certifications and is RoHS compliant, supporting global regulatory requirements. It is also built in the United States and features a TEFC enclosure suitable for harsh environments found in industrial facilities.
Lead time is listed as 0 day with stock available across multiple warehouses, including locations in the US and China. This rapid availability minimizes downtime during upgrades and expansions, while the standard footprint and mounting options streamline installation.
