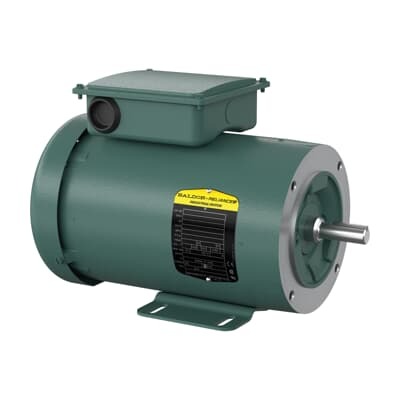

ABB 7BCUHL3519 Unit Handling - 1 HP TEFC CE/CSA/UR/WEEE
Part Number: 7BCUHL3519
Quick Summary
Unit Handling motors deliver compact, reliable power for material handling and light automation in manufacturing. Engineers often struggle with mis-matched voltage options and mounting complexity when upgrading legacy drives. This ABB CUHL3519 delivers 1 HP, 115 V, TEFC enclosure with a 56C frame and 1750 rpm, backed by CE, CSA, UR, and WEEE certifications to meet safety and compliance requirements. The design emphasizes ease of installation and long-term reliability, helping reduce downtime and service costs. With 60 Hz operation and a 1-phase power footprint, it aligns with common factory systems while supporting smooth integration with existing controls and drives. This combination delivers measurable business value through efficiency and predictable performance.
Product Information
Extended Description
7BCUHL3519 ABB: Unit Handling 1 Hp 115 V (CUHL3519)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1/.75KWHP,1745RPM,1PH,60HZ,56C,3526
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CUHL3519
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
L
Dimension Diagram
35LYX061
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CUHL3519
Gross Volume
2110.969 inÂł
Gross Weight
44 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F3
Insulation Class
F
Invoice Description
1/.75KWHP,1745RPM,1PH,60HZ,56C,3526LC,TE
Lubrication
Regreasable
Made To Order
No
Medium Description
Unit Handling, 1 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/208-230 V, 60 Hz (CUHL3519)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
69 %
Product Name
Unit Handling
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
44 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.5 A | 6.3 A
Rated Efficiency
74 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B35E6093G590
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/208-230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
L
Voltage Rating
115 V | 208 V | 230 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: 1 HP, 115 V single-phase motor with 60 Hz operation. Business Impact: Fits standard US line power and minimizes wiring changes during upgrades, reducing installation time and capital spent on power conversion. Application: Conveyor sections, packaging lines, and small fans that run on 115 V power. Feature: TEFC enclosure with 56C frame and C-face drive end. Business Impact: Enhanced protection against dust and contaminants, extending maintenance intervals and uptime in harsh manufacturing environments. Application: Floor-level machinery, stockrooms, and dirty production floors where reliability matters. Feature: Foot-mounted base and horizontal mounting with F3 position. Business Impact: Simplified retrofits and scalable installation across existing equipment footprints, lowering integration risk. Application: Rebuilt lines, skids, and modular machines requiring quick fitment. Feature: Regreasable bearings (6205) and lubrication schedule. Business Impact: Lower maintenance costs and longer service life due to easier lubrication and reduced bearing failure risk. Application: Continuous operation conveyors and fans with frequent cycling. Feature: Dual voltage option 115 V | 208 V | 230 V and direct-on-line starting. Business Impact: Flexible compatibility with global control panels and minimal drive hardware, reducing inventory variety. Application: Global plants with mixed voltage networks and high availability requirements. Feature: Certifications CE, CSA, UR, WEEE. Business Impact: Regulatory compliance for safety and environmental standards, streamlining procurement and field approvals. Application: Global deployments in automotive, food processing, and packaging lines. Feature: 56C frame, 1.15 service factor, 1750 r/min nominal speed. Business Impact: Predictable performance under modest loads with a sturdy, reusable footprint that supports standard drive solutions. Application: General purpose automation tasks on light conveyors and auxiliary equipment.
Get a Quick Quote for a ABB 7BCUHL3519
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCUHL3519?
Enquire Now
FAQs
The CUHL3519 is designed as a foot-mounted motor with a 56C frame, horizontal mounting orientation, and a C-face drive end flange. It supports a F3 mounting position and is optimized for straightforward retrofits onto existing conveyors and machinery footprints, reducing installation time and compatibility concerns.
Yes. The CUHL3519 is a 1‑phase, 60 Hz motor rated at 1 HP. It delivers approximately 1,750 rpm and is designed for 115 V operation with optional 208–230 V variants, making it adaptable for common US and regional power networks without complex drive retrofits.
The CUHL3519 carries CE, CSA, UR, and WEEE certifications, ensuring compliance with European, North American, and environmental safety standards. This helps with regulatory approvals, risk mitigation, and broader market deployment of your equipment.
Warranty and return terms indicate that products under warranty must be returned. This aligns with standard vendor warranties, enabling fault analysis and replacements while maintaining traceability for spare parts and service alignment.
The CUHL3519 uses regreasable bearings (6205). For optimal life, follow a regular lubrication schedule per OEM guidance, monitor vibration and shaft play, and inspect seals and mounting. This reduces unexpected failures and supports longer intervals between maintenance cycles.
