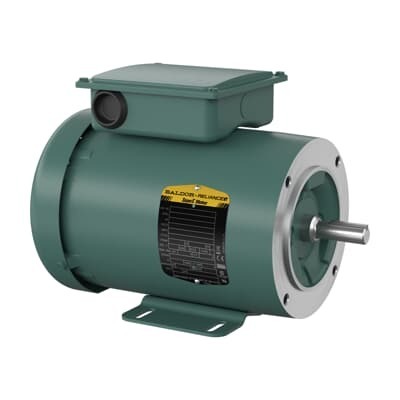

ABB 7BCUHM3542 Unit Handling - IP44 IC411HP, 1765RPM
Part Number: 7BCUHM3542
Quick Summary
Unit Handling with ABB 7BCUHM3542 delivers reliable motor-driven handling for material transport on conveyors and processing lines. Engineers often struggle with underpowered drives, limited mounting space, and inconsistent startup on demanding automation lines. This unit carries CE, CSA, UR certifications and a WEEE designation, supporting global installations and end-of-life compliance. Designed for continuous operation with a TEFC enclosure and 60 Hz capability, it offers predictable performance, simplifies spare-part strategies, and strengthens vendor support for long-term uptime.
Product Information
Extended Description
7BCUHM3542 ABB: Unit Handling 0.75 Hp 230 V (CUHM3542)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75/.56KW IP44 IC411HP,1765RPM,3PH
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CUHM3542
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYX046: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CUHM3542
Gross Volume
3496.049 inÂł
Gross Weight
31 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F3
Insulation Class
F
Invoice Description
.75/.56KW IP44 IC411HP,1765RPM,3PH,60HZ
Lubrication
Regreasable
Made To Order
No
Medium Description
Unit Handling, 0.75 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (CUHM3542)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
75 %
Product Name
Unit Handling
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
31 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.4 A | 1.2 A
Rated Efficiency
77 %
Rated Speed
1735 r/min
Replaced Product ID (OLD)
7B35X046G069G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
H
Voltage Rating
230 V | 460 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: 0.75 HP motor, 60 Hz, 230/460 V 3-phase delivers efficient throughput and lower energy waste in continuous load scenarios. Impact: Improves line productivity and reduces energy cost per cycle, enabling reliable operation on conveyors and material-handling equipment. Application: Packaging lines and small-to-mid-size automation cells demanding steady speed at 60 Hz. Feature: TEFC enclosure with IP44 protection and 56C frame enhances reliability in moderate industrial environments. Impact: Protects windings and bearings from dust and splashes, extending service life and reducing maintenance windows. Application: Food/pharma packaging, general automation, and warehousing conveyors. Feature: C-face mounting and foot-mounted base plus Direct On Line starting supports fast, flexible installation. Impact: Simplifies retrofits and new installations with minimal mechanical adaptation. Application: Inline motors for existing equipment upgrades and turnkey line builds. Feature: Regreasable bearings (6205 Ball, 6203 NDE) and insulation class F boost durability under continuous duty. Impact: Lower downtime from bearing failures and better insulation performance in warm environments. Application: Robotic feeders, ascension conveyors, and sorting stations. Feature: Stocked at multiple warehouses with 0-day lead time, plus 3-phase, 4-pole design and 56C frame. Impact: Shorter lead times, faster procurement cycles, easier spare-part planning. Application: Global manufacturing sites requiring rapid deployment and consistent performance across geographies.
