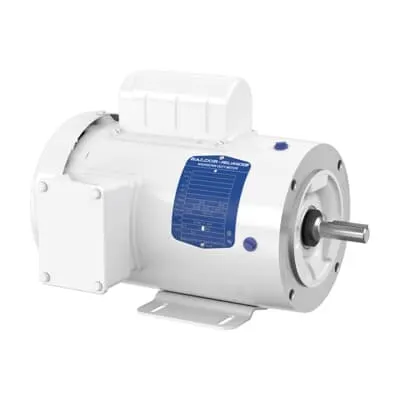

ABB CWDL3504 Washdown Motor - TEFC Enclosure, 1PH 60Hz
Part Number: 7BCWDL3504
Quick Summary
ABB CWDL3504 Washdown Motor delivers reliable, corrosion‑resistant drive for washdown applications in food processing and pharmaceutical environments. This design addresses downtime and corrosion concerns common in harsh cleaning regimes by combining a white washdown finish with a TEFC enclosure. Built to code with NEMA standards and CSA/UR listings, it supports safe, compliant operation in demanding facilities. The motor is a 0.5 HP, single‑phase unit compatible with 115 V or 230 V supply, offering robust performance with a 4‑pole, 1740 r/min output and a service factor of 1.25. By aligning with common industry frames and mounting arrangements, it provides seamless integration for cost‑effective upgrades and reliable ongoing production.
Product Information
Extended Description
7BCWDL3504 ABB: Washdown Motor 0.5 Hp 115 V (CWDL3504)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1740RPM,1PH,60HZ,56C,3520L,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CWDL3504
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
N
Dimension Diagram
35LYJ306: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CWDL3504
Gross Volume
2110.969 in³
Gross Weight
35 lb
Horsepower Rating UL/CSA
0.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.5HP,1740RPM,1PH,60HZ,56C,3520L,TEFC,F1
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 0.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (CWDL3504)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
70 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
35 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7 A | 3.5 A
Rated Efficiency
66 %
Rated Speed
1740 r/min
Replaced Product ID (OLD)
7B35J306G470
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
M
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: TEFC enclosure provides a protective barrier against dust, moisture, and washing chemicals, reducing maintenance costs and downtime in washdown environments; this translates to longer motor life and fewer unplanned outages in food and beverage lines where high-pressure cleaning is routine. Application: White washdown finish, 56C frame, foot mounted and C‑Face mounting enable quick retrofits in existing equipment housings, minimizing installation time and preserving production continuity in belt conveyors and packaging machinery. Feature → Business Impact → Application: 1PH, 60 Hz operation across 115/230 V dual voltage simplifies electrical design, reducing panel complexity and wiring errors while supporting flexible job sites and regional supply needs. Application: Small footprint pumps and fans with space constraints in compact automation cells benefit from predictable startup and consistent torque at 1740 r/min. Feature → Business Impact → Application: 0.5 HP rating with a 1.25 service factor improves peak load handling and transient start conditions, decreasing nuisance trips in conveyors and material handling lines. Application: Single‑phase drives in washdown stations and hand‑wash stations require dependable performance under continuous duty with a 60‑minute duty cycle. Feature → Business Impact → Application: NEMA alignment and CSA/UR certification provide regulatory confidence and supplier traceability, supporting audits and maintenance programs. Application: Critical in food, pharmaceutical, and cosmetic processing lines where safety and compliance are non‑negotiable. Feature → Business Impact → Application: 0.63 in shaft diameter and 56C frame support robust coupling and easy replacement parts, reducing downtime during motor swaps and alignment checks in OEM assemblies and aftermarket rebuilds.
Get a Quick Quote for a ABB 7BCWDL3504
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCWDL3504?
Enquire Now
FAQs
CWDL3504 supports foot mounting and C‑Face mounting with a 56C frame, horizontal mounting orientation, and a F1 mounting position. The shaft is 0.63 in, enabling straightforward coupling to common belts and pulleys. This combination simplifies retrofits and OEM integrations while maintaining proper alignment and serviceability.
Key specs include 0.5 HP output, 1740 r/min nominal speed, single phase power, dual voltage capability of 115 V or 230 V, 60 Hz operation, TEFC enclosure, and a 1.25 service factor. Rated current is 7 A at 115 V and 3.5 A at 230 V, with a power factor around 0.70 and efficiency near 66%, informing panel sizing and energy planning.
Yes. The White Washdown version combines a washdown‑rated finish with a TEFC enclosure, designed for cleaning‑intense environments. With a NEMA‑aligned design and CSA/UR listings, it supports regulatory expectations in sensitive industries while offering robust mechanical specs (56C frame, 1740 rpm) for reliable operation.
CWDL3504 carries CSA/UR listings and is built to NEMA standards, with a US origin. This combination provides regulatory confidence for North American facilities and supports audits, acceptance testing, and supplier qualification programs in regulated sectors.
Product availability is listed as Active with multiple stocking locations (EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU), enabling rapid replacements. Warranty terms state that products under warranty must be returned, and ongoing maintenance is simplified by standard 56C frame compatibility and widely available spare parts.
