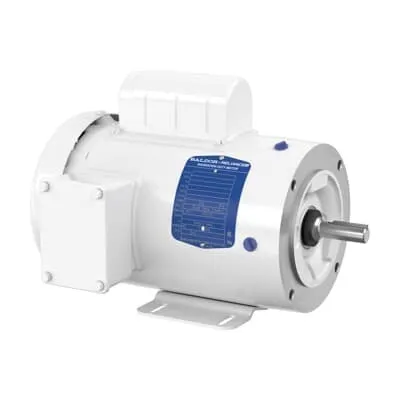

ABB 7BCWDL3510 Washdown Motor - TEFC, 1HP, 115V
Part Number: 7BCWDL3510
Quick Summary
The ABB 7BCWDL3510 Washdown Motor delivers reliable 1 HP performance for hygienic, washdown-intensive applications in food, beverage, and packaging lines. In demanding environments, moisture and washdown exposure threaten motor longevity and uptime. CSA/UR certified and built to NEMA standards with a TEFC enclosure reinforce reliability in harsh environments. Designed as a 1-phase, 115/230V motor with a 56C frame and C-face mounting, it simplifies retrofits and service while delivering consistent torque in busy production lines.
Product Information
Extended Description
7BCWDL3510 ABB: Washdown Motor 1 Hp 115 V (CWDL3510)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1725RPM,1PH,60HZ,56C,3524L,TEFC
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CWDL3510
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
L
Dimension Diagram
35LYS576: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CWDL3510
Gross Volume
3496.049 in³
Gross Weight
41 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1725RPM,1PH,60HZ,56C,3524L,TEFC,F1,N
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 1 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (CWDL3510)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
76 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
41 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.4 A | 6.2 A
Rated Efficiency
68 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B35S576G376
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
L
Voltage Rating
115 V | 230 V
Feature TEFC enclosure and 56C frame design provide rugged protection and a compact form factor that fits standard plant bases, reducing mounting headaches and retrofit time. Business Impact This combination minimizes ingress risk in washdown areas and lowers maintenance downtime, improving overall line efficiency. Application Conveyor lines and mixers in hygienic environments can rely on a durable, low-maintenance motor that stays protected during frequent washdowns. Feature 1-phase 115/230V operation simplifies electrical wiring, enabling quicker startup and lower wiring costs for facility teams. Business Impact Faster commissioning and fewer voltage conversion steps translate to reduced installation labor and faster time-to-production. Application Food processing and packaging lines benefit from direct-on-line starting compatibility, which reduces control complexity and gear downtime. Feature 56C frame with C-face mounting supports easy mechanical integration with existing bases and belts or pulleys. Business Impact Enables straightforward retrofits and compatibility with common baseplates, saving installation time. Application Maintenance teams appreciate 60-minute duty capability and Insulation Class F for reliable continuous operation in 40°C environments up to 1000 m altitude. Feature Bearing configuration Drive End 6205 Ball; NDE 6203 Ball and Synchronous Speed 1800 r/min with Rated Speed 1725 r/min provide stable torque and predictable performance under load. Business Impact Improved bearing life and torque delivery reduce unexpected stalls and increase conveyor uptime. Application The motor's robust specs support sustained performance on continuous-duty lines, including washdown conveyors and dosing equipment.
Get a Quick Quote for a ABB 7BCWDL3510
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCWDL3510?
Enquire Now
FAQs
The model uses a foot-mounted base with a 56C frame and a C-face drive end flange, supporting easy installation on standard baseplates and mounting configurations.
It is a 1-phase motor rated for 115 V or 230 V at 60 Hz, delivering 1 HP with a nominal speed of 1725 r/min. Rated current is 12.4 A at 115 V and 6.2 A at 230 V; insulation class is F and service factor is 1.15.
Yes. It is described as a White Washdown motor with TEFC enclosure, designed for demanding washdown environments, and rated for ambient temperatures up to 40 °C and altitudes up to 1000 m.
Warranty terms indicate that products under warranty must be returned, consistent with standard supplier warranty processes.
The 56C frame, foot mounting with C-face, 1-phase 115/230V operation, and direct-on-line starting support facilitate retrofits. It is also listed as replacing a prior model (OLD: 7B35S576G376), with stock at multiple warehouses for faster sourcing.
