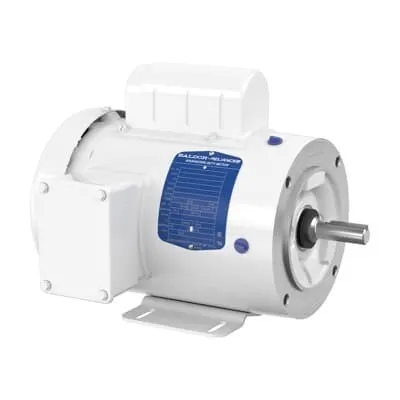

ABB 7BCWDL3513 Washdown Motor - 1.5HP, TEFC CSA/UR
Part Number: 7BCWDL3513
Quick Summary
ABB 7BCWDL3513 Washdown Motor delivers 1.5 HP for sanitary washdown in food processing. Engineered to withstand frequent washdowns and corrosion, it minimizes downtime from motor failures in wet production areas. It carries CSA/UR certification and RoHS compliance, helping you meet global electrical standards and streamline procurement. For value, consider TEFC enclosure, 56C frame, and 115/230 V versatility, enabling quick installation in existing lines. With a 60 Hz, single-phase design and 56C frame, it delivers reliable torque for demanding washdown cycles. Easy integration with standard foot mounting and C-face flange supports fast upgrades without extensive rework. Overall, the motor aligns with lean manufacturing goals by reducing energy use, maintenance cost, and unexpected outages.
Product Information
Extended Description
7BCWDL3513 ABB: Washdown Motor 1.5 Hp 115 V (CWDL3513)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,3450RPM,1PH,60HZ,56C,3524L,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CWDL3513
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYT985: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CWDL3513
Gross Volume
2110.969 inÂł
Gross Weight
41 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1.5HP,3450RPM,1PH,60HZ,56C,3524L,TEFC,F1
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 1.5 HP, 3600 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (CWDL3513)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
85 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
41 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
16 A | 8 A
Rated Efficiency
70 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35T985Y748G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1.5 HP, 3600 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
J
Voltage Rating
115 V | 230 V
The 1.5 HP single‑phase washdown motor is built for 60 Hz operation and a 115/230 V dual voltage input. Business impact: extended service life in water-heavy environments reduces replacement costs and unplanned downtime. Application: food processing lines and hygienic packaging corners where frequent washdowns occur. TEFC enclosure and 56C frame provide rugged protection against wash water and cleaning chemicals. Impact: improved reliability, easier sanitation compliance, and seamless compatibility with standard motor bases. C‑Face drive end flange and foot mounting simplify retrofits and new installations in existing equipment. Impact: faster installation, reduced field customization, and lower integration risk. Lubrication marked "For life" supports lower maintenance needs and predictable uptime. Impact: fewer scheduled service events and longer intervals between checks. CSA/UR certification and RoHS compliance mitigate supplier risk and support global procurement. Impact: smoother supply chains and regulatory alignment. Performance specs such as 3450 r/min rated speed, 16 A nominal current, and a 1.15 service factor drive consistent performance under typical load profiles. Impact: reliable torque delivery and efficient operation across standard duty cycles.
Get a Quick Quote for a ABB 7BCWDL3513
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCWDL3513?
Enquire Now
FAQs
Yes. The CWDL3513 is designed for frequent washdowns with a TEFC enclosure, 56C frame, and a 1.5 HP single‑phase configuration. Its RoHS compliance and CSA/UR certification help ensure sanitation standards and regulatory alignment while delivering reliable operation in damp, hygienic environments.
The motor runs at 60 Hz with a voltage rating of 115 V or 230 V and a single phase. It is designed for direct-on-line starting, enabling straightforward integration into existing electrical architectures without soft starters, while delivering adequate torque for normal load profiles.
The CWDL3513 features foot mounting and a C-face drive end flange for flexible installation. It supports horizontal mounting with a 56C frame, facilitating retrofits into standardized equipment footprints and reducing modification time during upgrades or line commissioning.
This motor carries CSA/UR certification and RoHS compliance. These certifications help meet global electrical safety and environmental requirements, simplify supplier qualification, and reduce regulatory risk in multinational manufacturing environments.
Lubrication is listed as 'For life,' minimizing routine bearing maintenance. Combined with a robust TEFC design and low downtime in washdown settings, this promotes a favorable total cost of ownership through reduced maintenance costs and longer mean time between failures.
