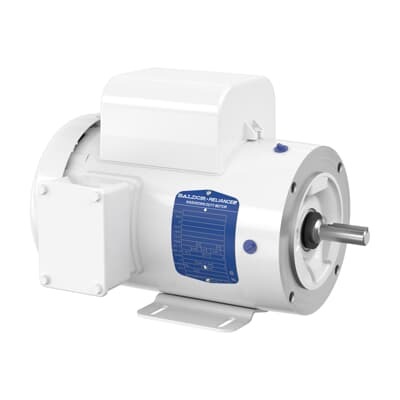

ABB 7BCWDL3514 Washdown Motor - TEFC
Part Number: 7BCWDL3514
Quick Summary
ABB 7BCWDL3514 washdown motor delivers 1.5 HP for reliable performance in wet production environments. Operators often contend with corrosion, downtime, and compatibility challenges when selecting motors for washdown zones. This model is CSA | UR listed and features a TEFC enclosure along with a NEMA design, ensuring rugged protection in aggressive cleaning cycles. With 115/230 V operation and single-phase power, it fits common plant electrical systems while delivering consistent torque and life-cycle reliability. These attributes translate to lower maintenance costs, improved uptime, and smoother integration with existing conveyors and pumps, making it a prudent choice for food and beverage, pharma, and packaging lines.
Product Information
Extended Description
7BCWDL3514 ABB: Washdown Motor 1.5 Hp 115 V (CWDL3514)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1725RPM,1PH,60HZ,56C,3532LC,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CWDL3514
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYS586: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CWDL3514
Gross Volume
3496.049 in³
Gross Weight
50 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1.5HP,1725RPM,1PH,60HZ,56C,3532LC,TEFC,F
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 1.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (CWDL3514)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
98 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
50 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.2 A | 6.1 A
Rated Efficiency
80 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B35S586G242
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
J
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The TEFC enclosure delivers superior protection in wet, washdown environments, reducing corrosion risk and extending motor life, which lowers maintenance time and costs on production lines such as meat processing or dairy packaging. Application: Use in sanitary conveyors or washdown pumps where frequent cleaning occurs and設備 reliability is critical. Feature → Business Impact → Application: A 1.5 HP, 1725 RPM, single-phase motor rated for 115/230 V, 60 Hz provides strong torque with straightforward electrical hookup, enabling quick line start-ups and minimal control complexity. Application: Suitable for small to medium conveyors, fans, or pumps in food or pharma processing where space and power are constrained. Feature → Business Impact → Application: 56C frame, foot-mounted with C-face mounting offers versatile installation and retrofit options, reducing downtime during upgrades and increasing compatibility with standard drives. Application: Ideal for replacing older motor housings in existing washdown lines without major mechanical changes. Feature → Business Impact → Application: Life-lubricated bearings (6205, 6203) and robust spindle design minimize maintenance intervals, improving Overall Equipment Effectiveness (OEE) on critical lines. Application: Continuous operation in high-cycle packaging or bottling lines. Feature → Business Impact → Application: CSA | UR and NEMA design compliance provide regulatory assurance and easier qualification for industrial facilities. Application: Medical device packaging or prepared food lines requiring stringent compliance.
Get a Quick Quote for a ABB 7BCWDL3514
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCWDL3514?
Enquire Now
FAQs
The motor comes in a foot-mounted design with a C-face drive-end flange, and horizontal mounting orientation. This allows straightforward retrofits and compatibility with a wide range of conveyors and pumps, reducing installation time and risk when upgrading existing lines.
This is a 1-phase motor rated for 115 V or 230 V, at 60 Hz, delivering 1.5 HP with a rated current of 12.2 A at 115 V and 6.1 A at 230 V. It operates at 1725 rpm, making it suitable for mid-speed conveyors and small pumps while maintaining efficient performance.
Yes. The unit features a TEFC enclosure which protects internal components from washdown fluids and contaminants. The bearings are designed for life-long lubrication, and the design adheres to NEMA and CSA | UR standards to ensure durability in sanitary facilities.
The motor is CSA | UR listed and aligns with NEMA design standards. It carries UL/CSA compatibility, with TEFC protection, making it suitable for regulated industrial facilities and helping with certification processes during audits.
Lead time is listed as 0 days, with stock at multiple warehouses including locations in the United States and China. This enables rapid fulfillment for urgent line upgrades and reduces project downtime when sourcing this exact model.
