ABB CWDM3539-H Washdown Motor - CSA UR Certified
Part Number: 7BCWDM3539-H
Quick Summary
Washdown Motor CWDM3539-H provides reliable, hygienic drive for food, beverage, and pharmaceutical equipment. Facilities often struggle with moisture ingress, corrosion, and downtime when using conventional motors in washdown zones. This model carries CSA and UR certifications, aligns with NEMA design B, and uses a rugged TENV enclosure to withstand harsh washdown environments. Designed for 3-phase, 60 Hz operation, it supports 208–230/460 V systems, making it a versatile choice for OEMs and end users alike. By combining robust construction with easy installation and predictable performance, CWDM3539-H helps mitigate maintenance costs while improving line uptime across mixed-washdown applications.
Product Information
Extended Description

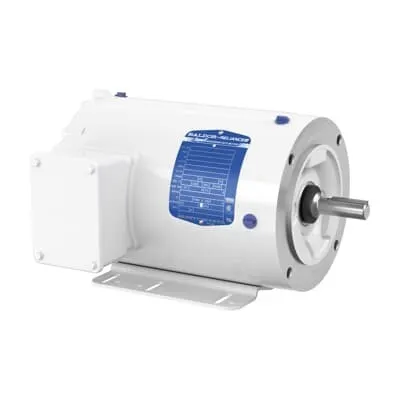

7BCWDM3539-H ABB: Washdown Motor 0.5 Hp 208 V (CWDM3539-H)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1175RPM,3PH,60HZ,56HC,3522M,TE
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CWDM3539-H
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LY-000-259: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CWDM3539-H
Gross Volume
2110.969 in³
Gross Weight
37 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.5HP,1175RPM,3PH,60HZ,56HC,3522M,TENV,F1
Made To Order
No
Medium Description
White Washdown, 0.5 HP, 1200 RPM, Frame Size 56Hc, C-Face Mounting, 3 Phase, TENV Enclosure, 208-230/460 V, 60 Hz (CWDM3539-H)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56HC
Motor Frame Suffix
CH
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
60 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
37 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.9 A | 0.95 A
Rated Efficiency
78.50 %
Rated Speed
1165 r/min
Replaced Product ID (OLD)
7B35E1081G337
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1200 RPM, Frame Size 56Hc, C-Face, 3 PH, TENV, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
208 V | 230 V | 460 V
Feature → Business Impact → Application: 0.5 HP, 1165 rpm, 3-phase, 60 Hz operation delivers compact yet capable torque for compact conveyors and packaging lines; reduces motor footprint while maintaining necessary speed for throughput in washdown environments. Feature → 208–230/460 V voltage compatibility and 1.9 A nominal current (0.95 A at alternative voltages) enable flexible wiring and easy retrofits across existing plants. Application: food processing, beverage handling, pharmaceutical packaging, and other sanitary manufacturing lines seeking dependable drive performance with minimal electrical rework. Feature → TENV enclosure and 40 °C ambient rating provide moisture resistance and cleaning compatibility; business impact: lower risk of corrosion-related downtime and simplified sanitation cycles. Application: washdown zones in meat/pish/shipping lines and other wet environments. Feature → 56HC frame, 0.63 in shaft, and 6205/6203 ball bearings offer robust mechanical endurance, reducing maintenance and extending service intervals. Application: belt conveyors, hoppers, and roller systems in continuous-duty layouts. Feature → Foot-mounted base with C-face drive end and horizontal mounting orientation ensures straightforward installation, quick alignment, and future serviceability. Application: retrofit projects and new installations with limited access space. Feature → Service Factor 1.25, PF 60%, and 78.5% efficiency contribute to energy savings and reliability under overload conditions; business impact: lower lifetime energy cost and more predictable performance in peak production. Application: high-duty-cycle lines requiring consistent torque and efficiency.
Get a Quick Quote for a ABB 7BCWDM3539-H
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCWDM3539-H?
Enquire Now
FAQs
CWDM3539-H is designed for horizontal mounting with a foot-mounted base and a C-face drive end flange, simplifying beam alignment and retrofit. The 56HC frame, 0.63 in shaft, and 37 lb weight support straightforward handling and installation in tight spaces. Use the Dimension Sheet 35LY-000-259 for exact mounting dimensions, ensuring compatible coupling and motor support structures.
The motor operates on 3-phase power at 60 Hz, with voltage options of 208 V, 230 V, or 460 V. Rated current is 1.9 A (and 0.95 A under certain voltages). The rated speed is 1165 r/min with a 0.5 HP output, and a power factor of 60%. This makes it adaptable to standard plant electrical systems without excessive wiring changes.
Yes. The CWDM3539-H uses a TENV (Totally Enclosed Non-Ventilated) enclosure designed for washdown applications and an ambient temperature rating of 40 °C. This configuration helps resist moisture ingress and supports frequent cleaning cycles typical in food, beverage, and pharma lines, reducing corrosion risk and downtime.
CWDM3539-H carries CSA and UR certifications, signaling compliance with recognized safety standards. It aligns with NEMA design B and uses a rugged seal with a TENV enclosure, which matters for regulatory adherence and reliability in sanitary environments. These certifications simplify procurement and validation for regulated industries and OEMs.
With a service factor of 1.25, continuous-duty capability, robust bearings (6205/6203), and a durable steel frame, CWDM3539-H offers improved uptime and reduced maintenance intervals. The 0.5 HP rating at 60 Hz and energy-efficient performance contribute to lower operating costs, while easy mounting and compatibility minimize installation time and spare-part requirements.
