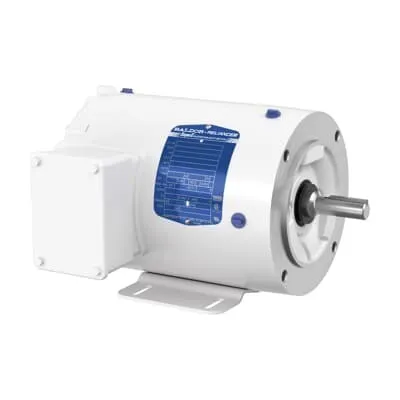

ABB CWDM3542 Washdown Motor - 0.75HP, 3PH, 60Hz, TENV
Part Number: 7BCWDM3542
Quick Summary
ABB CWDM3542 Washdown Motor is a compact, 0.75 HP three-phase drive designed for wet, hygienic environments in food processing and packaging lines. Operators often struggle with corrosion, frequent washdown downtime, and mounting compatibility in existing lines. This motor s Totally Enclosed Non-Ventilated enclosure, F insulation class, and NEMA design B rating deliver rugged reliability, even under continuous washdown. A low maintenance life lubricated bearing design reduces service intervals and total cost of ownership, while the 56C frame fits standard basing and C-face mounting. Stocked across multiple warehouses in the US and international locations, it ships quickly, with zero day lead times where available, helping you minimize downtime and accelerate project schedules.
Product Information
Extended Description
7BCWDM3542 ABB: Washdown Motor 0.75 Hp 230 V (CWDM3542)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1765RPM,3PH,60HZ,56C,3514M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CWDM3542
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYS588: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
CWDM3542
Gross Volume
2110.969 in³
Gross Weight
29 lb
Horsepower Rating UL/CSA
0.750 Hp
IC Class
TENV
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
.75HP,1765RPM,3PH,60HZ,56C,3514M,TENV,F1
Lubrication
For life
Made To Order
No
Medium Description
White Washdown, 0.75 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (CWDM3542)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
74 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
29 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.28 A | 1.14 A
Rated Efficiency
82.50 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
M
Voltage Rating
230 V | 460 V
Washdown readiness with a TENV enclosure reduces wash water ingress and protects windings and bearings, lowering maintenance costs in food processing lines. This translates to fewer unplanned outages and higher line uptime for beverage and packaging operations. The 0.75 HP, 1765 rpm, 3 phase design supports common process speeds while maintaining torque for reliable conveyor drives. Frame 56C and C face mounting simplify retrofits and new installations on standard bases, reducing installation time and spare part diversity. Life lubrication with ball bearings extends service life in high frequency washdowns, improving ROI for OEMs and end users alike. With dual voltage 230 460 V and 60 Hz, compatibility across regional electrical standards minimizes wiring complexity in multi site plants.
Get a Quick Quote for a ABB 7BCWDM3542
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCWDM3542?
Enquire Now
FAQs
Yes. CWDM3542 uses a 56C frame, is foot mounted with C-face mounting, and supports horizontal orientation, ensuring straightforward installation on standard bases and compatible drive assemblies.
CWDM3542 is a 0.75 HP, 1765 rpm, 3 phase motor rated for 230 460 V at 60 Hz with a rated current of 2.28 A, 4 poles, and efficiency around 82.5 percent, designed for continuous duty.
Yes. The motor features a TENV enclosure, life lubrication, and 56C frame, optimized for washdown environments. It is rated for 60 minute duty with a sturdy NEMA design B orientation for reliable service.
CWDM3542 carries CSA and UR recognition, with NEMA standards compliance. The insulation class is F and the enclosure is TENV, suitable for controlled industrial environments.
Lead time is listed as 0 day, and the product is stocked at multiple warehouses including US and international locations, providing rapid fulfillment and flexible sourcing for multi site projects.
