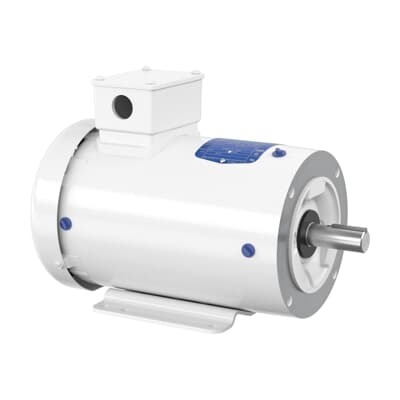

ABB CWDM3561TP-5 Washdown Motor - 575V TEFC
Part Number: 7BCWDM3561TP-5
Quick Summary
Washdown motor solutions for clean, high-humidity environments drive reliable equipment in food processing and packaging. This ABB CWDM3561TP-5 delivers a robust 3 HP, 575 V, 60 Hz solution designed to withstand frequent washdowns and harsh cleaning regimes, reducing maintenance downtime. It carries CSA and UR safety listings and complies with NEMA standards, supporting safe, compliant operation in regulated facilities. With a TEFC enclosure, 145TC frame, and foot-mounted, C-face mounting, this motor offers plug-and-play installation and predictable performance in sanitary plants. By choosing a true washdown motor, you gain improved longevity, easier sourcing, and consistent uptime across your production line.
Product Information
Extended Description
7BCWDM3561TP-5 ABB: Washdown Motor 3 Hp 575 V (CWDM3561TP-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1655RPM,3PH,60HZ,145TC,3540M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
CWDM3561TP-5
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
C-Face
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
CWDM3561TP-5
Gross Volume
5274.135 in³
Gross Weight
59 lb
Insulation Class
H
Invoice Description
3HP,1655RPM,3PH,60HZ,145TC,3540M,TEFC,F3
Made To Order
No
Medium Description
White Washdown, 3 HP, 1800 RPM, Frame Size 145Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (CWDM3561TP-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145TC
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
D
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
86 %
Product Name
White Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
59 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.2 A
Rated Efficiency
81 %
Rated Speed
1640 r/min
Replaced Product ID (OLD)
7B35E2678G300G1
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.88 in
Short Description
3 HP, 1800 RPM, Frame Size 145Tc, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
575 V
TEFC enclosure provides water ingress protection and extended motor life in washdown environments, reducing maintenance and downtime while enabling sanitary operation in food and beverage lines. The 145TC frame, 3 HP rating, and 4-pole design deliver a compact footprint with reliable torque delivery for conveyors and mixers, supporting simple retrofits in existing line architecture. A 575 V, 3-phase, 60 Hz electrical rating aligns with common plant power distributions, ensuring quick integration and consistent performance across multiple machines. High efficiency at 81% and a power factor of 86% translate into meaningful energy savings and lower utility costs over the motor’s operational life. Sealed bearings (6205) with a 40 °C ambient rating reduce maintenance cycles in damp environments, while the 0.88 inch shaft and 145TC frame enable durable coupling and gear-motor compatibility. Foot-mounted, C-face mounting simplifies installation and aligns with standard mechanical layouts, minimizing downtime during motor swaps or preventive maintenance.
Get a Quick Quote for a ABB 7BCWDM3561TP-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCWDM3561TP-5?
Enquire Now
FAQs
CWDM3561TP-5 uses a 145TC frame and is foot-mounted with a C-face configuration, designed for straightforward bolt-on installation. It supports typical 3-phase, 575 V, 60 Hz power and aligns with common conveyor and gear-motor mounting patterns, enabling easy replacement and minimal downtime during upgrades.
The TEFC enclosure protects windings from water and contaminants, while sealed bearings (6205) and a 40 °C ambient rating reduce corrosion-related maintenance. The white washdown specialization, 3 HP output, and 575 V rating keep the motor reliable and durable under repeated cleaning cycles typical in hygienic facilities.
This motor carries CSA and UR safety listings and adheres to NEMA standards, providing regulatory assurance for use in regulated facilities. These certifications help facilitate installation approvals, traceability, and safe operation across food processing, beverage, and pharmaceutical environments.
The CWDM3561TP-5 is a 3-phase, 575 V, 60 Hz motor with a 4-pole configuration, rated at 3 HP and 1640 r/min (with a synchronous speed of 1800 r/min). It offers a rated current of 3.2 A, efficiency of 81%, and a power factor of 86%, supporting energy-efficient, stable operation in continuous duty applications.
The product is actively stocked at multiple warehouses (various catalog references show ready availability). Warranty terms note that products under warranty must be returned, enabling streamlined replacement in case of failure. Lead time is listed as 0 day, supporting fast deployment and minimized downtime on critical production lines.
