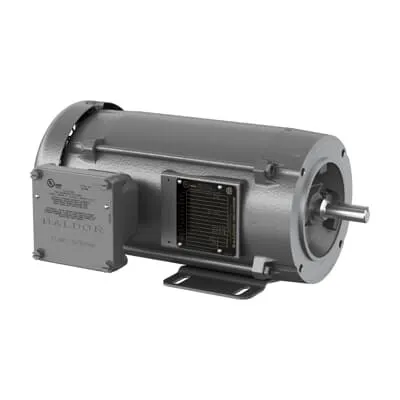

ABB 7BCXL05122A Explosion Proof General Purpose Motor - XPFC
Part Number: 7BCXL05122A
Quick Summary
Explosion Proof General Purpose Motor delivers reliable 1 HP performance for hazardous-location applications in industrial settings. Many buyers struggle with long lead times, compliance checks, and cross‑regional compatibility when sourcing critical motors. This ABB model aligns with NEMA standards and features an XPFC explosion-proof enclosure, dual voltage (115/230 V) at 60 Hz. Used in automation and equipment retrofits, it supports easier procurement, faster maintenance planning, and consistent performance across global sites. By selecting this model, engineers reduce downtime, simplify stocking strategies, and align with ABB's 1HP motor family for seamless compatibility with existing drives and starters. Ultimate reliability for critical process lines.
Product Information
Extended Description
7BCXL05122A ABB: Explosion Proof General Purpos 1 Hp 115 V (CXL05122A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,3450RPM,1PH,60HZ,56C,3524L,XPFC
Invoice Description
1HP,3450RPM,1PH,60HZ,56C,3524L,XPFC,F1
Product Name
Explosion Proof General Purpos
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015100
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof General Purpos, 1 HP, 3600 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, XPFC Enclosure, 115/230 V, 60 Hz (CXL05122
Short Description
1 HP, 3600 RPM, Frame Size 56C, C-Face, 1 PH, XPFC, 115/230 V
Electrical Data
Frequency (f)
60 Hz
Output Power
1 Hp
Ambient Temperature
40 °C
Insulation Class
B
Number of Poles (High)
2
Type of Duty
Continuous
Frame Material
Steel
Frame Size
56
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Width
13.75 in
Product Net Weight
50 lb
Gross Weight
50 lb
Standards
NEMA
Explosion-proof XPFC enclosure and a steel 56C frame deliver safer operation in volatile environments. This design minimizes ignition risks in equipment housings, helping facilities meet regulatory requirements while keeping production moving.A 1 HP, 2-pole configuration runs at 60 Hz with dual voltage 115/230 V, offering flexible power options for field retrofits and new installations. The single-phase continuous-duty design supports reliable operation for conveyors, pumps, fans, and other essential line equipment.C-face mounting and the compact 56C frame simplify integration with existing ABB drives and mounting kits, shortening installation time and reducing spare-parts diversity. The tool-compatible footprint also eases retrofits across multiple machines.US-origin manufacturing with 0 day lead time and stock at multiple warehouses ensures fast delivery, minimizing downtime on critical production lines. Availability in China and North American facilities supports regional procurement strategies.Insulation Class B and a 40 °C ambient rating extend service life in moderate-temperature plants, while NEMA standards support compliance throughout commissioning. This motor complements ABB's broader automation ecosystem, enabling smoother integration with drives, starters, and control panels.
Get a Quick Quote for a ABB 7BCXL05122A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCXL05122A?
Enquire Now
FAQs
To install, mount the motor on a compatible C-face base, ensure proper enclosure sealing and wiring to an explosion-protected circuit, and verify the supply is 115/230 V single-phase at 60 Hz. Use XPFC-rated components and confirm alignment with NEMA compliance. Check that mounting accessories and control gear are compatible with the 56C frame and ABB drives for a seamless integration.
Key specs include 1 HP output, 60 Hz frequency, 2 poles, 3600 RPM, dual voltage 115/230 V, single-phase operation, and continuous duty. Insulation Class B supports up to 40 °C ambient temperatures, with a steel 56C frame and C-face mounting for straightforward installation in industrial equipment.
Yes. The explosion-proof XPFC enclosure and NEMA-compliant design make it appropriate for hazardous areas where ignition risk must be controlled. Its 1 HP power, 2-pole configuration, and continuous-duty rating provide reliable drive for conveyors, pumps, and process equipment used in chemical processing and similar operations.
The motor adheres to NEMA standards and uses an XPFC explosion-proof enclosure. It is designed for US-origin manufacturing and offers dual voltage operation, 115/230 V, at 60 Hz, with a 56C frame for broad industrial compatibility.
Replacing with this ABB model can reduce downtime due to its quick availability (0 day lead time) and broad warehouse stocking. The explosion-proof design minimizes ignition risks, while the insulation class B and solid steel frame improve service life. Compatibility with ABB drives supports a smoother, longer-term automation ROI with fewer spare parts in stock.
