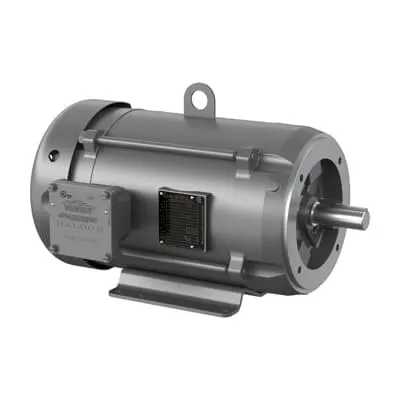

ABB 7BCXL21542 Explosion Proof General Purpose - XPFC Enclosure
Part Number: 7BCXL21542
Quick Summary
Explosion Proof General Purpose motor delivers reliable 5 HP performance for hazardous-area applications in industrial facilities. Manufacturers and integrators often struggle with uptime, spare-part compatibility, and long lead times when sourcing motors for ATEX/zone-rated plants. This ABB unit adheres to NEMA standards and features an XP-rated enclosure, enabling safer operation in demanding environments. With 230 V single-phase, 60 Hz power and robust construction, it streamlines procurement and installation, boosting overall equipment effectiveness in industrial automation. Designed for quick maintenance and dependable performance across a range of hazardous-location applications, it helps reduce downtime and total cost of ownership.
Product Information
Extended Description
7BCXL21542 ABB: Explosion Proof General Purpos 5 Hp 230 V (CXL21542)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1740RPM,1PH,60HZ,215C,3726LC,XP
Invoice Description
5HP,1740RPM,1PH,60HZ,215C,3726LC,XPFC,F1
Product Name
Explosion Proof General Purpos
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015220
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof General Purpos, 5 HP, 1800 RPM, Frame Size 215C, Standard Mounting, 1 Phase, XPFC Enclosure, 230 V, 60 Hz (CXL21542)
Short Description
5 HP, 1800 RPM, Frame Size 215C, Standard, 1 PH, XPFC, 230 V
Electrical Data
Frequency (f)
60 Hz
Output Power
5 Hp
Ambient Temperature
40 °C
Insulation Class
F
Number of Poles (High)
4
Type of Duty
Continuous
Frame Material
Steel
Frame Size
215
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Width
16.5 in
Product Net Weight
111 lb
Gross Weight
111 lb
Standards
NEMA
Feature → Business Impact → Application: Explosion-proof XP enclosure provides safe operation in hazardous environments, reducing risk of ignition and downtime; applies to chemical processing and oil & gas facilities, improving plant safety and compliance. Feature → 5 HP output at 1740 RPM with 230 V single-phase supply; impact → consistent torque for conveyors, pumps, and fans, enabling stable process control in hazardous zones. Application → chemical plants and refineries benefit from reliable starts and reduced maintenance windows. Feature → Frame size 215C in steel; impact → enhanced rigidity and vibration tolerance, extending motor life in demanding mechanical loads; Application → large fans, mixers, and other heavy-duty equipment. Feature → NEMA standard compliance; impact → easier installation, Retrofit compatibility, and streamlined procurement; Application → new installations or replacements in US and international facilities. Feature → Stocked at multiple warehouses; impact → faster delivery and reduced downtime for critical spare parts; Application → uptime-centric maintenance strategies. Feature → 40 °C ambient temperature rating and insulation class F; impact → reliable performance in typical factory environments; Application → standard industrial environments with heat-producing equipment. Feature → Warranty return policy and clear service terms; impact → mitigated risk and improved total cost of ownership; Application → long-term asset management and service planning.
Get a Quick Quote for a ABB 7BCXL21542
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCXL21542?
Enquire Now
FAQs
The 7BCXL21542 is designed for hazardous locations with an XP-rated enclosure and conforms to NEMA standards, simplifying installation in chemical plants, refineries, and other industrial environments. It supports standard 230 V single-phase power at 60 Hz and a frame size 215C, making retrofits and new builds more straightforward. Compatible mounting configurations and common control wiring reduce integration time.
Key specs include 5 HP output, 1740 RPM, 1-phase operation, 60 Hz, 230 V input, frame size 215C, insulation class F, ambient 40 °C, four-pole design, and an XP explosion-protection enclosure. Weight is 111 lb, and the motor uses steel frame construction for durability in demanding settings. These specifications support reliable operation in continuous-duty applications.
Yes. The motor is built with an XP-rated enclosure for explosion protection and aligns with NEMA standards, making it suitable for hazardous environments such as chemical processing and oil & gas facilities. Its insulation class F and robust steel frame further enhance reliability under demanding ambient conditions typical of these industries.
Lead time is listed as 0 days, and the product is stocked at multiple warehouses, including US and international locations. This setup supports fast fulfillment and reduced downtime when orders are placed for spare parts or urgent replacements in production lines.
Warranty and return terms specify that products under warranty must be returned. This policy helps mitigate risk for long-term asset management and service planning, ensuring drivers and drives can be supported through standard maintenance cycles without unexpected costs.
