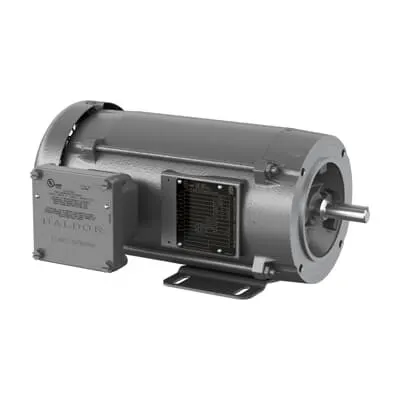

ABB 7BCXM05142 Explosion Proof General Purpose - XPFC
Part Number: 7BCXM05142
Quick Summary
ABB 7BCXM05142 Explosion Proof General Purpose motor delivers reliable drive performance for hazardous-area applications such as chemical processing. Facilities struggle with downtime and maintenance costs when using standard motors in explosive environments. Key standards include NEMA compliance and the XPFC enclosure, delivering safer operation in demanding facilities. Our rugged, multi‑voltage design reduces the need for field rewiring and simplifies procurement, helping maintain uptime and lower total cost of ownership. With a 56C frame, steel construction, and a continuous-duty rating, it supports long-running service in conveyors, pumps, and mixers. Using this motor means fewer spare parts and faster maintenance cycles, especially when stock is readily available from multiple warehouses.
Product Information
Extended Description
7BCXM05142 ABB: Explosion Proof General Purpos 0.75 Hp 190 V (CXM05142)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1//.75HP,1770//1475RPM,3PH,60//50HZ
Invoice Description
1//.75HP,1770//1475RPM,3PH,60//50HZ,56C
Product Name
Explosion Proof General Purpos
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015100
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof General Purpos, 1 HP, 1800//1500 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, XPFC Enclosure, 230/460//190/380 V,
Short Description
1 HP, 1800//1500 RPM, Frame Size 56C, C-Face, 3 PH, XPFC, 230/460//190/380 V
Electrical Data
Frequency (f)
50 Hz | 60 Hz
Output Power
0.75 Hp | 1 Hp
Ambient Temperature
40 °C
Insulation Class
F
Number of Poles (High)
4
Type of Duty
Continuous
Frame Material
Steel
Frame Size
56
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Width
13.75 in
Product Net Weight
50 lb
Gross Weight
50 lb
Standards
NEMA
Explosion-proof construction with an XPFC enclosure provides enhanced protection for internal components in hazardous locations, reducing arc flash risk and enabling safer maintenance. The steel frame and sealed windings resist dust, moisture, and corrosive atmospheres, helping equipment run longer between service intervals. This design choice is particularly valuable in chemical processing, oil and gas, and other demanding industries where uptime matters. Electrical versatility is a key advantage of the 7BCXM05142. It supports dual-voltage operation across 230/460 V and 190/380 V, paired with 50/60 Hz service, so a single motor can fit multiple site power systems. That flexibility minimizes spare-part inventory and speeds up commissioning across shifting production lines. Mechanical ruggedness underpins reliability. The 56C frame in steel, 4-pole design delivers smooth torque for continuous duty applications, while C-face mounting simplifies retrofits and new installs on existing bases. The insulation class F further enhances thermal limits in continuous operation. Compact footprint and measured weight help with installation planning. Net dimensions of about 19.375 in length, 13.123 in height, and 13.75 in width, paired with a 50 lb net weight, fit into tight spaces and facilitate service access. These physical attributes reduce downtime during maintenance and enclosure changes. Stock availability and procurement efficiency improve project timelines. The motor is stocked at multiple warehouses (including China and U.S. sites) with 0 day lead time, enabling rapid fulfillment for critical projects. Warranty terms require returns for any warranty service, helping protect investment and ensure traceability. From an industry perspective, using a purpose-built explosion-proof motor reduces energy waste and extends life cycle costs. The combination of XPFC protection, NEMA-compatible construction, and ready-to-ship logistics supports faster ROI through less downtime and simpler compliance management.
Get a Quick Quote for a ABB 7BCXM05142
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCXM05142?
Enquire Now
FAQs
Install the ABB 7BCXM05142 with the XPFC enclosure installed and verified per the provided electrical diagrams. Mount using the C-Face configuration on a compatible base, then connect the motor to a 230/460 V or 190/380 V, 50/60 Hz supply as appropriate. Ensure proper grounding, shielded wiring where required, and adherence to NEMA-style enclosure practices for safe, compliant operation.
The motor provides 0.75 Hp (up to 1 Hp) output, 4 poles, and is rated for continuous duty. It supports dual voltage: 230/460 V or 190/380 V and operates at 50/60 Hz. The insulation class is F, ambient temperature rating is 40 °C, and it uses a 56C frame with steel construction, enabling reliable performance in demanding environments.
Yes. The 7BCXM05142 is designed for continuous operation with a 4-pole configuration and a continuous-duty rating. The insulation class F supports sustained thermal performance, while the XPFC explosion-proof enclosure and NEMA-aligned construction help maintain safe, reliable operation in hazardous areas such as chemical processing, oil, and gas applications.
This ABB motor is built to NEMA standards and uses an XPFC enclosure for explosion protection. The combination supports rugged performance in hazardous environments and aligns with typical industrial compliance practices. If you require additional certifications beyond NEMA, verify project-specific requirements with your procurement team or ABB representative.
The motor is stocked at multiple warehouses, including locations in China and the United States, with a lead time of 0 days in listed scenarios. This availability supports rapid fulfillment for critical projects. Warranty terms state that products under warranty must be returned, so plan accordingly for any warranty service or returns.
