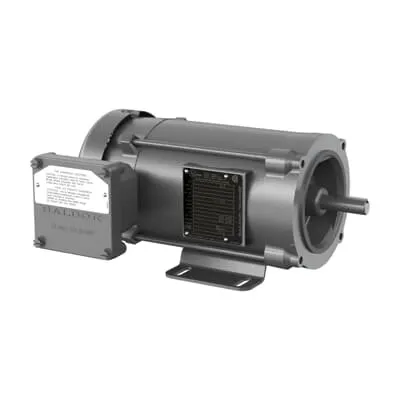

ABB 7BCXM05142-57 Explosion Proof General Purpose - XPFC
Part Number: 7BCXM05142-57
Quick Summary
ABB 7BCXM05142-57 is an explosion-proof general purpose motor designed for hazardous area applications in chemical, oil & gas, and manufacturing environments. Engineers often struggle with maintaining performance in challenging environments while meeting strict safety and regulatory requirements. This model leverages a rugged XPFC explosion-proof enclosure, a 56C frame, and NEMA standards to deliver reliable operation under 40 °C ambient conditions. By supporting 230/400 V three-phase power at 50 Hz and continuous-duty operation, it reduces downtime and simplifies procurement for international projects.
Product Information
Extended Description
7BCXM05142-57 ABB: Explosion Proof General Purpos 1 Hp 230 V (CXM05142-57)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1425RPM,3PH,50HZ,56C,3432M,XPFC
Invoice Description
1HP,1425RPM,3PH,50HZ,56C,3432M,XPFC,F1,N
Product Name
Explosion Proof General Purpos
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015100
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof General Purpos, 1 HP, 1500 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, XPFC Enclosure, 230/400 V, 50 Hz (CXM05142
Short Description
1 HP, 1500 RPM, Frame Size 56C, C-Face, 3 PH, XPFC, 230/400 V
Electrical Data
Frequency (f)
50 Hz
Output Power
1 Hp
Ambient Temperature
40 °C
Insulation Class
F
Number of Poles (High)
4
Type of Duty
Continuous
Frame Material
Steel
Frame Size
56
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Width
13.75 in
Product Net Weight
45 lb
Gross Weight
45 lb
Standards
NEMA
Explosion-proof XPFC enclosure provides enhanced safety in hazardous locations, improving risk management and uptime for refineries and chemical plants. The 1 HP output paired with 1425 RPM on a 56C frame delivers reliable torque with compact footprint, enabling easier retrofit and installation in existing equipment. Continuous-duty performance with Insulation Class F supports sustained operation in warm environments up to 40 °C, reducing cooling requirements and maintenance costs. The motor’s steel frame delivers robust mechanical integrity for demanding environments, while 230/400 V, 50 Hz three-phase supply compatibility simplifies electrical installation and spares stocking. Stocked at multiple warehouses with 0 day lead time improves project timelines and minimizes production downtime. Overall, this ABB solution aligns with safety, compliance, and total-cost-of-ownership objectives for industrial users.
Get a Quick Quote for a ABB 7BCXM05142-57
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BCXM05142-57?
Enquire Now
FAQs
Install the 7BCXM05142-57 using the 56C frame with C-Face mounting for straightforward integration into existing equipment. Connect to a three-phase 230/400 V power supply at 50 Hz and follow local electrical codes. The XPFC explosion-proof enclosure provides compliance in hazardous areas, and mounting should consider proper spacing for cooling and vibration control.
Key specs include 1 HP output, 1425 RPM with 4 poles, 50 Hz operation, and 230/400 V three-phase input. Insulation Class F supports higher temperature environments, while continuous-duty rating ensures steady torque. These characteristics deliver reliable operation in demanding applications such as processing lines and hazardous-area conveyors.
Yes. The motor is designed for continuous-duty service in hazardous environments, featuring an XPFC explosion-proof enclosure and NEMA-aligned construction. For chemical processing, ensure adequate cooling, correct mounting, and adherence to local safety standards to maintain performance and longevity.
The product references NEMA standards and an explosion-proof XPFC enclosure, signaling suitability for hazardous locations. Note that specific CE or SIL certifications are not listed in the provided data; verify local regulatory requirements and confirm documentation with the supplier during procurement.
Warranty details specify that products under warranty must be returned. The motor is stocked at multiple warehouses with 0 day lead time, supporting fast fulfillment and reduced downtime. This availability, combined with continuous-duty performance, helps reduce maintenance costs and improves overall return on investment for critical plants.
