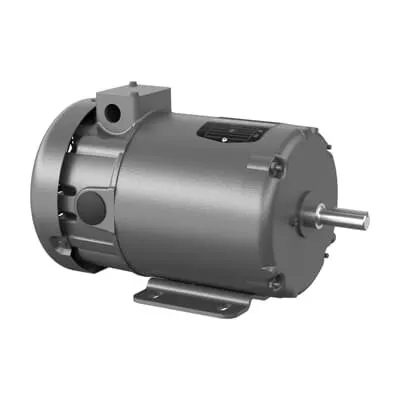

ABB 7BD1154 DC Wound Field Fractional Comp - 1 HP, TEFC, CSA UR
Part Number: 7BD1154
Quick Summary
ABB 7BD1154 DC Wound Field Fractional Comp delivers compact motor performance for small drives and conveyors in continuous-duty environments. Maintenance downtime and inconsistent speed control can erode productivity in automated lines, so a rugged, sealed design reduces service interruptions. It carries CSA | UR listing, RoHS compliance, and a NEMA-rated TEFC enclosure to meet regulatory and reliability expectations on the shop floor. Designed for 1 HP output at 1750 r/min and 115 V field voltage, it installs quickly in frame size 56 configurations and supports reliable operation across US facilities.
Product Information
Extended Description
7BD1154 ABB: DC Wound Field Fractional Comp 1 Hp (D1154)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1750RPM,DC,56,3535D,TEFC,F1
Ambient Temperature
40 °C
Armature Current
8 A
Armature Inertia
13.66 ft·lbf
Armature Voltage
115 V
Base Speed
1750 r/min
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
D1154
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
35LYP328
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Field Voltage
115 V
Frame Material
Steel
Frame Size
56
Global Commercial Alias
D1154
Gross Volume
3590.443 in³
Gross Weight
27.216 kg
Horsepower Rating UL/CSA
1.000 Hp
Insulation Class
F
Invoice Description
1HP,1750RPM,DC,56,3535D,TEFC,F1
Made To Order
No
Medium Description
DC Wound Field Fractional Comp, 1 HP, Frame Size 56, 0 Phase, TEFC Enclosure, (D1154)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
1 Hp
Product Name
DC Wound Field Fractional Comp
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
27.216 kg
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
1 HP, Frame Size 56, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
Feature: DC wound field fractional motor technology delivers precise torque at low speeds → Benefit: Improved control for tight-duty cycles reduces wear and energy waste in small conveyors and tool drives → Application: 1 HP DC drive systems in frame size 56 installations. Feature: TEFC enclosure provides dust and moisture protection → Benefit: Higher uptime in manufacturing floors and outdoor installations → Application: Baldor-Reliance DC motors in factory automation environments requiring robust sealing. Feature: 115 V field voltage with 8 A armature current → Benefit: Simplified wiring and compatibility with common DC drives, lowering installation time and cost → Application: Standard industrial control panels and low-voltage DC drive assemblies. Feature: Rated for 1750 r/min base speed and 1 HP output → Benefit: Consistent speed performance for conveyors and small machine tools, reducing process variability → Application: Continuous-duty applications in packaging and assembly lines. Feature: RoHS compliant, CSA | UR listed and NEMA standards → Benefit: Regulatory peace of mind and easier compliance in regulated industries → Application: Industrial environments requiring formal certifications and RoHS material restrictions. Feature: Frame size 56, foot-mounted, horizontal mounting orientation → Benefit: Easy retrofit or new installation with widely used footprints → Application: Standard 56-frame motor installations across US warehouses and production lines.
Get a Quick Quote for a ABB 7BD1154
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BD1154?
Enquire Now
FAQs
The 7BD1154 is designed for foot-mounted, horizontal orientation in frame size 56. It aligns with common 56-frame footprints, enabling quick retrofits or new installations in standard industrial setups and reducing alignment and bolt-together time during motor integration.
With 115 V field voltage and an 8 A armature current, the motor pairs well with typical low-voltage DC drives and control panels. This configuration simplifies wiring schemes, reduces wiring costs, and supports straightforward integration into existing DC drive architectures in plant automation.
Yes. The TEFC enclosure provides enhanced protection against dust and moisture, while the RoHS-compliant design and CSA | UR listing support reliability and regulatory requirements. It is well-suited for continuous-duty applications like conveyors and compact machine tools in standard manufacturing floors.
The motor is CSA | UR listed and RoHS compliant, with a NEMA-standard enclosure. These certifications support regulatory compliance, supplier verification, and safer operation in regulated industries such as food, automotive, or consumer electronics assembly lines.
With sealed bearings and a robust TEFC design, maintenance intervals are extended and downtime is minimized. The 1 HP, frame 56 motor delivers predictable torque and speed for consistent process flow, helping to improve throughput and reduce total cost of ownership in automated systems.
