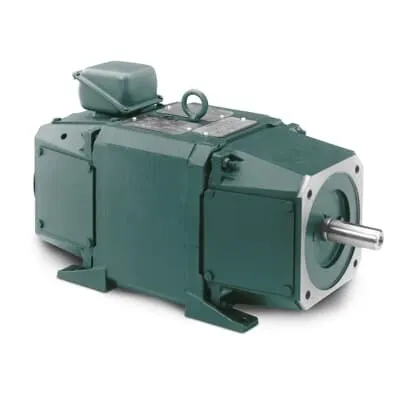

ABB 7BD1802R DC Integral HP RPMIII Wound Fi - TENV
Part Number: 7BD1802R
Quick Summary
ABB 7BD1802R is a DC integral motor designed for reliable continuous operation in heavy-duty conveying and processing applications. Engineers often face downtime and rising maintenance costs; this model addresses those challenges with a robust wound-field design and simplified integration. The motor supports UL/CSA safety certification, aligns with NEMA standards, and follows industry best practices for electrical motors in US markets. Built for efficiency and predictable lifecycle costs, it also pairs well with modern drive systems and OEM assemblies, making it a strong fit for new equipment or retrofit projects in material handling, packaging, and automated production lines.
Product Information
Extended Description
7BD1802R ABB: DC Integral HP RPMIII Wound Fi 2 Hp (D1802R)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
DC0189ATY,2HP,1750RPM,180,200,TENV,
Ambient Temperature
40 °C
Armature Current
9.5 A
Armature Voltage
180 V
Base Speed
1750 r/min
Bearing
30BC02JPP30A
Bearing NDE
30BC02JPG30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
D1802R
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85013200
Dimension Diagram
609980-503
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TENV
Field Current
0.51 A
Field Voltage
200 V
Frame Material
Laminated
Frame Size
189
Global Commercial Alias
D1802R
Gross Volume
0 in³
Gross Weight
162 lb
Horsepower Rating UL/CSA
2.000 Hp
Insulation Class
F
Invoice Description
DC0189ATY,2HP,1750RPM,180,200,TENV,F3
Made To Order
No
Medium Description
DC Integral HP RPMIII Wound Fi, 2 HP, Frame Size Dc0189Aty, 0 Phase, TENV Enclosure, (D1802R)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
DC0189ATY
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
2 Hp
Product Name
DC Integral HP RPMIII Wound Fi
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
162 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.88 in
Short Description
2 HP, Frame Size Dc0189Aty, 0 PH, TENV,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
Feature → Business Impact → Application: The DC RPMIII wound field configuration provides precise speed control and torque stability, reducing start-up delays and equipment wear, which translates to higher line uptime on conveyors and pumps. Application: Suitable for continuous-duty conveyors and packaging lines where consistent rpm is critical for product throughput. Feature → Business Impact → Application: 2 HP output at 1750 r/min delivers dependable power density for compact motor footprints, enabling tighter machine layouts and reduced inverter sizing in OEM equipment. Application: Ideal for compact conveyors, dosing systems, and small pump drives in tight spaces. Feature → Business Impact → Application: TENV enclosure and insulation class F enhance thermal resilience in moderate ambient environments up to 40 °C, supporting longer service intervals and safer operation. Application: Food processing and general manufacturing environments with moderate heat loads. Feature → Business Impact → Application: Foot-mounted base type with horizontal mounting simplifies installation, alignment, and service access, lowering installation time and maintenance costs. Application: Retrofit projects and new builds requiring straightforward mounting on standard frames. Feature → Business Impact → Application: UL/CSA safety and NEMA-aligned construction provide regulatory confidence across US and international markets, reducing compliance risk and accelerating procurement. Application: OEMs targeting US/NAFTA and global supply chains. Feature → Business Impact → Application: Stocked at multiple warehouses with zero-day lead time and a conservative MOQ supports rapid replenishment and just-in-time manufacturing workflows. Application: High-mix, low- to medium-volume production lines requiring quick availability.
Get a Quick Quote for a ABB 7BD1802R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BD1802R?
Enquire Now
FAQs
This motor uses a Foot Mounted base and Horizontal mounting orientation, designed around frame size DC0189ATY. It integrates easily with standard mechanical couplings and mounting pads, enabling quick retrofit or new-build installations. With its compact footprint and common frame, it fits a wide range of conveyors, pumps, and processing equipment without costly custom adapters.
The motor delivers 2 HP output with a rated speed of 1750 r/min. Armature voltage is 180 V and it uses a 200 V field reference in its design. Insulation class is F, supporting reliable operation in typical plant environments, while the enclosure is TENV for effective heat dissipation.
Yes. With a continuous-duty rating, 2 HP power, and a robust wound-field design, this motor supports constant operation in conveyors, pumps, and material-handling systems. Its horizontal, foot-mounted installation and NEMA-aligned construction simplify integration into OEM layouts and retrofit projects while maintaining consistent torque and speed control.
The motor carries UL/CSA safety certifications and aligns with NEMA standards, providing regulatory confidence for US and international deployment. In addition, the product is designed around standard industrial practices, including a TENV enclosure and F-class insulation, supporting safe operation in typical plant environments.
Lead time is listed as 0 day, and the product is stocked across multiple warehouses to support rapid fulfillment. Warranty guidance indicates that warranty returns are handled through the standard program, with the policy specifying that products under warranty must be returned for evaluation and processing.
