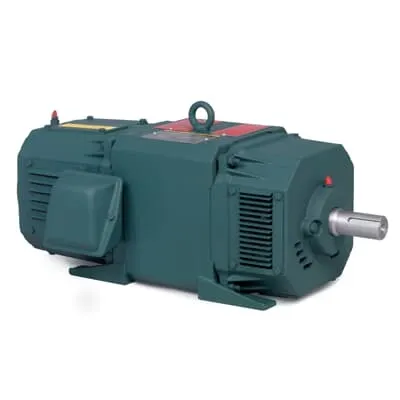

ABB 7BD2005R DC Integral HP RPMIII - DP Enclosure
Part Number: 7BD2005R
Quick Summary
The ABB 7BD2005R DC integral HP RPMIII motor delivers 5 HP of reliable power for demanding drives in conveyors and processing equipment. Engineers often wrestle with installation delays, field wiring challenges, and variable performance, especially when sourcing a DC wound-field unit. This motor aligns with NEMA standards and UL/CSA performance ratings, supporting safer, compliant operation in US-manufactured systems. With a DP enclosure and a foot-mounted design, it simplifies installation while enabling consistent cooling and serviceability. In addition to its robust electrical specs, this model offers a compact footprint and predictable performance, helping manufacturers reduce downtime and optimize maintenance planning. Secondary benefits include compatibility with standard Baldor-Reliance hardware and straightforward integration into existing automation architectures.
Product Information
Extended Description
7BD2005R ABB: DC Integral HP RPMIII Wound Fi 5 Hp (D2005R)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
C1811ATZ, 1750/2300 RPM, DC
Ambient Temperature
40 °C
Armature Current
19.2 A
Armature Voltage
240 V
Base Speed
1750 r/min
Bearing
40BC02J30X
Bearing NDE
30BC02J30X
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
D2005R
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85013200
Dimension Diagram
609980-001
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
DP
Field Current
1.26 A
Field Voltage
150 V
Frame Material
Laminated
Frame Size
1811
Global Commercial Alias
D2005R
Gross Volume
11266.5 in³
Gross Weight
90.718 kg
Horsepower Rating UL/CSA
5.000 Hp
Insulation Class
F
Invoice Description
C1811ATZ, 1750/2300 RPM, DC
Made To Order
No
Maximum Speed
2300 r/min
Medium Description
DC Integral HP RPMIII Wound Fi, 5 HP, Frame Size C1811Atz, 0 Phase, DP Enclosure, (D2005R)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
C1811ATZ
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
5 Hp
Product Name
DC Integral HP RPMIII Wound Fi
Product Net Depth / Length
29 in
Product Net Height
21 in
Product Net Weight
90.718 kg
Product Net Width
18.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Short Description
5 HP, Frame Size C1811Atz, 0 PH, DP,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
Feature is a compact DC integral HP RPMIII wound field motor with a DP enclosure and foot-mount design. Business Impact is simplified installation, improved protection, and reduced mounting footprint, enabling quicker start-ups and easier serviceability. Application is in line-fed industrial drives, conveyors, and process equipment. Feature delivers 5 HP continuous-duty performance with 1750 r/min rated speed and 2300 r/min maximum speed, supporting consistent torque in automated lines. Application benefits include reliable power delivery at 240 V armature voltage with 19.2 A current, improving motor life and reducing thermal stress in busy facilities. Feature ensures a durable frame size C1811ATZ with standard drive-end flange, facilitating interchangeability with compatible mounting hardware and reducing spare parts variety. Application relevance spans material handling, packaging lines, and machine tooling where a DC rpm-controlled motor enhances process accuracy and energy efficiency. Feature includes UL/CSA performance ratings and NEMA-standard compliance to address common regulatory objections and support audit readiness in regulated environments.
