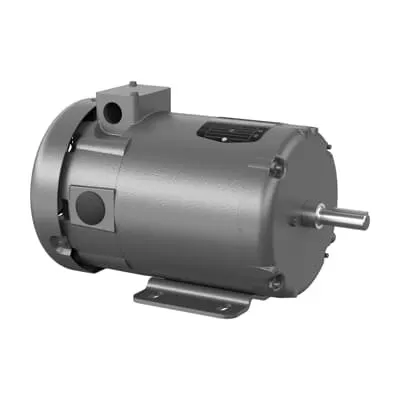

ABB 7BD2301 DC Wound Field Fractional Comp - CSA UR
Part Number: 7BD2301
Quick Summary
DC Wound Field Fractional Comp provides precise speed control for compact drives and general industrial applications. Engineers often face space constraints and compatibility gaps when upgrading legacy fractional horsepower motors. This ABB unit is CSA and UR certified and RoHS compliant, ensuring safety and regulatory alignment. With a TEFC enclosure, frame size 56, and 230 V operation, it integrates smoothly into existing panels, simplifying procurement. This combination reduces downtime, improves reliability, and supports scalable manufacturing through readily stocked inventories. By aligning with Baldor-Reliance design language and US-origin production, maintenance teams gain familiar interfaces and faster installation. Its 0.33 HP rating and 1750 rpm base speed offer predictable torque for light-duty drives.
Product Information
Extended Description
7BD2301 ABB: DC Wound Field Fractional Comp 0.33 Hp (D2301)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1750RPM,DC,56,3513D,TEFC,F1
Ambient Temperature
40 °C
Armature Current
1.7 A
Armature Inertia
5.07 ft·lbf
Armature Voltage
230 V
Base Speed
1750 r/min
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
D2301
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYP316
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Global Commercial Alias
D2301
Gross Volume
2200.078 in³
Gross Weight
41 lb
Horsepower Rating UL/CSA
0.330 Hp
Insulation Class
F
Invoice Description
.33HP,1750RPM,DC,56,3513D,TEFC,F1
Made To Order
No
Medium Description
DC Wound Field Fractional Comp, 0.33 HP, Frame Size 56, 0 Phase, TEFC Enclosure, (D2301)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
0.33 Hp
Product Name
DC Wound Field Fractional Comp
Product Net Depth / Length
18.625 in
Product Net Height
11.25 in
Product Net Weight
41 lb
Product Net Width
10.5 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.33 HP, Frame Size 56, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
Stocked across multiple warehouses with 0 day lead time, the ABB 7BD2301 supports rapid deployment on mission-critical lines. This stock-availability translates to shorter procurement cycles and faster spindle or conveyor start-ups, reducing downtime when motors fail or parts go missing. The combination of immediate availability and predictable pricing helps procurement teams meet tight project deadlines while maintaining budget discipline. Electrical performance is tuned for consistent torque and predictable operation. The motor delivers 0.33 HP at 1750 r/min with a 230 V input and 1.7 A armature current, making it straightforward to size against drives and controllers. The DC wound field design simplifies speed control in applications that demand stable, repeatable performance in varying loads. Mechanical compatibility and installation are straightforward. With frame size 56 and a TEFC enclosure, the unit fits standard mounting footprints and environments. A foot-mounted base, 0.63 in shaft diameter, and 41 lb weight enable quick coupling to gearboxes or belts, while the compact length of 18.625 in keeps enclosure space efficient. Durability and environmental readiness support long service life. Insulation class F, ambient temperature rating of 40 °C, sealed 6205 bearing, and standard 6203 NDE bearings contribute to reliability in factory floors. The 0-phase DC configuration and rugged steel frame further minimize maintenance, while RoHS compliance aligns with modern sustainability and regulatory expectations. Compliance and procurement flexibility add value. The unit is CSA | UR certified and RoHS compliant, with stock at US and international warehouses (USABB014EXPU, GBINS001EXPU, SGIND004EXPU). Minimum order quantity is 1 piece, and lead times are favorable for project pipelines. The product name and catalog features align with Baldor-Reliance standards, helping teams switch without redesigns.
Get a Quick Quote for a ABB 7BD2301
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BD2301?
Enquire Now
FAQs
The 7BD2301 is a foot-mounted, frame 56, TEFC DC wound field motor with a 0.63 in shaft and 41 lb weight. It follows standard Baldor-Reliance mounting geometry, enabling straightforward bolt-pattern alignment, couplings, and panel integration. Its horizontal mounting orientation minimizes space requirements and simplifies retrofits into existing conveyor and machine tool applications.
This motor delivers 0.33 HP at 1750 r/min with a 230 V input and 1.7 A armature current. It is a 0-phase DC configuration, designed for stable torque under varying loads. The TEFC enclosure and 56 frame size support reliable operation in typical workshop environments, while the 0.63 in shaft diameter facilitates common coupling options.
Yes. The motor carries RoHS compliance and safety certifications, specifically CSA and UR. These certifications help ensure regulatory alignment for industrial environments and make procurement easier for customers needing compliant, traceable components in their builds or replacements.
Ideal for light-duty, continuous duty fractional horsepower drives such as small conveyors, fans, and compact machine tools. The 56 frame, TEFC enclosure, and 230 V operation provide a versatile balance of space efficiency and power, enabling quick conversion of legacy DC or wound-field systems without major redesigns.
Warranty and returns align with the stated policy: warranty returns require product to be returned. For maintenance, rely on the sealed bearings (6205) and standard 6203 NDE bearing arrangement, along with the F insulation class for reliable performance in factory environments. Regular inspection of the shaft and mounting hardware is recommended to sustain longevity.
