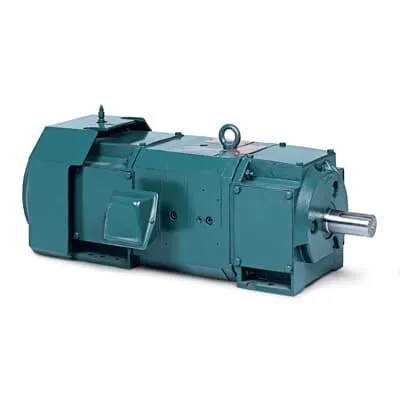

ABB 7BD5510P DC Round Frame Wou - UL/CSA 10HP
Part Number: 7BD5510P
Quick Summary
ABB 7BD5510P DC motor is a high-reliability solution for continuous duty drives in industrial systems such as conveyors, pumps, and machine tools. This model addresses common installation challenges by offering a robust TEFC enclosure, a compact 259AT frame, and a straightforward foot-mounted footprint for quick alignment. With CSA and UL/CSA certifications and a NEMA-aligned design, it delivers proven safety and compatibility across regulatory environments. The motor’s 10 HP rating and wide speed range provide precision control for demanding processes, while its US origin supports local procurement programs and streamlined supply chains. For engineers focusing on uptime and total cost of ownership, this ABB motor aligns technical performance with business value.
Product Information
Extended Description
7BD5510P ABB: DC Integral HP Round Frame Wou 10 Hp (D5510P)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1750/2300RPM,DC,259AT,TEFC,F1
Ambient Temperature
40 °C
Armature Current
16.3 A
Armature Voltage
500 V
Base Speed
1750 r/min
Bearing
6209
Bearing NDE
6207
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
D5510P
Certification Agency
CSA
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
885-2: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Enclosure Type
TEFC
Field Current
0.87 A
Field Voltage
300 V
Frame Material
Steel
Frame Size
259
Global Commercial Alias
D5510P
Gross Volume
0 inÂł
Gross Weight
460 lb
Horsepower Rating UL/CSA
10.000 Hp
Insulation Class
F
Invoice Description
10HP,1750/2300RPM,DC,259AT,TEFC,F1
Made To Order
No
Maximum Speed
2300 r/min
Medium Description
DC Integral HP Round Frame Wou, 10 HP, Frame Size 259At, 0 Phase, TEFC Enclosure, (D5510P)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
259AT
Mounting Orientation
Horizontal
Number of Phases
0
Order Multiple
1 piece
Output Power
10 Hp
Product Name
DC Integral HP Round Frame Wou
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
460 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.62 in
Short Description
10 HP, Frame Size 259At, 0 PH, TEFC,
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Type of Duty
Continuous
Feature → Business Impact → Application: TEFC enclosure provides superior protection in harsh factory environments, reducing scrubber and enclosure maintenance costs while extending motor life in dusty or damp settings. This translates to lower downtime and fewer spare-part costs for assembly lines that run 24/7. In practice, use TEFC-rated ABB 7BD5510P on packaging conveyors or material handlers where reliability and safety are paramount. Feature → Business Impact → Application: 10 HP rating with 1750/2300 RPM performance allows high starting torque and smooth speed control, improving belt drive efficiency and reducing energy spikes. This benefits process lines requiring precise RPM control, such as plastic extrusion or automated machining centers. Feature → Business Impact → Application: 259AT frame size and 1.62 in shaft diameter deliver straightforward coupling and alignment with common belt and pulley systems, minimizing installation time and mechanical wear. Industry teams gain faster commissioning and reduced warranty issues. Feature → Business Impact → Application: Insulation class F and ambient temperature rating of 40 °C support stable operation in moderate industrial environments, safeguarding performance under heat buildup from continuous operation. This is critical for coils and winding protection in high-load cycles. Feature → Business Impact → Application: United States origin and multi-warehouse stocking (EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU) enable rapid replenishment and shorter lead times, reducing stockouts and improving project scheduling. For OEMs and maintenance teams, this means faster quotes and tighter project timelines. Long-tail keywords integrated here include DC motor round frame, 259AT, TEFC motor, 10 HP continuous duty, UL/CSA motor, NEMA-aligned electric motor, and Baldor-Reliance heritage.
