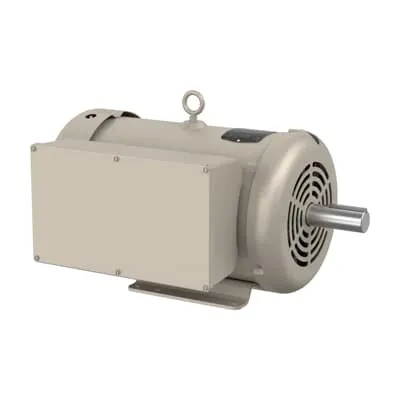

ABB 7BDEL3733TM Farm Duty Motor - 1PH 230V TEFC CSA/UR
Part Number: 7BDEL3733TM
Quick Summary
ABB 7BDEL3733TM Farm Duty Motor provides reliable 7.5 HP drive for dairy pumps and vacuum systems. It is designed for single-phase 230 V operation at 60 Hz, making it ideal for plant floors with limited three-phase access. Engineers often wrestle with start-up surges, downtime, and sourcing delays; this motor addresses those challenges with a robust TEFC enclosure, regreasable bearings, and a ready-to-stock profile. With US-origin manufacturing and CSA/UR certification, it aligns with strict compliance requirements while simplifying procurement through readily available stocking at multiple warehouses. The combination of durability, easy installation, and predictable performance supports consistent process throughput and improved maintenance planning for food-and-beverage or industrial dairy applications.
Product Information
Extended Description
7BDEL3733TM ABB: Farm Duty Motor 7.5 Hp 230 V (DEL3733TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1725RPM,1PH,60HZ,215T,3750LC,
Altitude
1000 m
Ambient Temperature
50 °C
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
DEL3733TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYF364: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
DEL3733TM
Gross Volume
7561.383 inÂł
Gross Weight
162 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,1725RPM,1PH,60HZ,215T,3750LC,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
Dairy/Vacuum Pump, 7.5 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (DEL3733TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
98 %
Product Name
Dairy/Vacuum Pump
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
162 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
28 A
Rated Efficiency
85 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 215T, Standard, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
H
Voltage Rating
230 V
Feature: 1-phase 230 V operation with a 7.5 HP rating. Business Impact: Reduces installation cost and wiring complexity while delivering ample torque for dairy and light vacuum loads. Application: Dairy processing equipment and vacuum pumps that operate from standard plant power without phase conversion. Feature: TEFC enclosure and 215T frame with foot-mounted orientation. Business Impact: Enhances protection against dust, moisture, and washdowns common in dairy plants; simplifies installation and alignment. Application: New installations or retrofits in food-grade environments where enclosure protection and stable mounting are critical. Feature: Regreasable lubrication and durable ball bearings. Business Impact: Extends service intervals and reduces maintenance costs while maintaining peak efficiency. Application: Continuous operation in dairy pumps and vacuum systems with long service life. Feature: 1725 r/min nominal speed and 60 Hz operation in a compact 215T frame. Business Impact: Enables smooth, low-vibration operation and straightforward shaft alignment with existing drive trains. Application: Retrofitting conveyors, pumps, and agitators on farm-duty equipment. Feature: CSA and UR certifications with US-origin manufacturing and immediate stock. Business Impact: Supports regulatory compliance, fast procurement, and reduced downtime for critical projects. Application: Food-processing, dairy, and industrial maintenance programs requiring ready-to-stock farm-duty motors.
