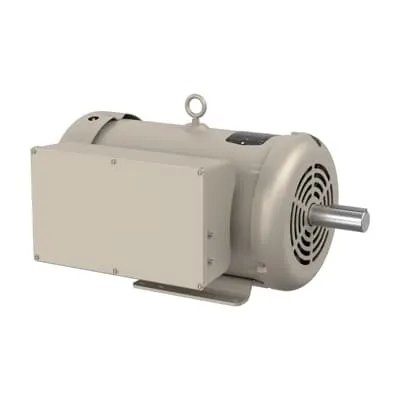

ABB 7BDEL3737TM Farm Duty Motor - TEFC, CSA/UR
Part Number: 7BDEL3737TM
Quick Summary
The 7BDEL3737TM is a farm-duty motor delivering reliable 10 HP power for dairy and vacuum-pump systems. Designed for North American operations, it reduces downtime by matching a 230 V single-phase supply and rugged TEFC construction. CSA and UR certifications, together with NEMA-aligned design, provide compliance confidence in farm automation and dairy equipment. Stocked across multiple warehouses to enable fast fulfillment, it supports plant-wide dairy processes and farm-mix applications. Its 60 Hz operation and 4-pole design deliver 1,750 rpm for stable dairy vacuum pumping and pump-motoring duty. With regreasable bearings, TEFC enclosure, and a 215T frame, installation is straightforward on standard bases and minimizes service intervals. Worldwide availability.
Product Information
Extended Description
7BDEL3737TM ABB: Farm Duty Motor 10 Hp 230 V (DEL3737TM)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50LC 4P TEFC HOR 215T MTO
Altitude
1000 m
Ambient Temperature
50 °C
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
DEL3737TM
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYM294: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
DEL3737TM
Gross Volume
7561.383 inÂł
Gross Weight
160 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
H
Invoice Description
50LC 4P TEFC HOR 215T MTO
Lubrication
Regreasable
Made To Order
No
Medium Description
Dairy/Vacuum Pump, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (DEL3737TM)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
96 %
Product Name
Dairy/Vacuum Pump
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
160 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
39 A
Rated Efficiency
85.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101103
Voltage Code
G
Voltage Rating
230 V
Feature → Business Impact → Application. TEFC enclosure provides dust and moisture protection, delivering higher uptime in dusty farm environments and rugged dairy plants. This reduces unplanned downtime and maintenance costs for dairy equipment and vacuum pumps. Application: dairy processing lines, dairy vacuum systems, and farm automation where exposure to particulates is common. Single-phase 230 V operation simplifies electrical design, enabling quick integration with existing plant power, reducing wiring complexity and installation time. Application: small-scale dairy facilities and farm automation initiatives that rely on 230 V infrastructure. Frame size 215T with foot mounting offers easy retrofits and compatibility with standard motor bases, speeding up installation and spare-parts planning. Application: replacement motors in legacy dairy machinery and vacuum pump assemblies. Regreasable lubrication and 6307 ball bearings lower maintenance needs and extend service intervals, cutting lifecycle costs. Application: long-term use in continuous-duty dairy pumps and process equipment. Power factor of 96% and efficiency around 85.5% improve energy costs, supporting sustainability goals and operational budgets. Application: energy-conscious facilities seeking lower operating expenses. CSA/UR certification and NEMA-aligned design simplify regulatory compliance for North American markets, reducing procurement risk. Application: OEMs targeting strict QA and compliance in dairy systems. Stocked at multiple warehouses enables fast fulfillment, minimizing downtime in production lines. Application: rapid deployment for farm operations and dairy automation projects.
Get a Quick Quote for a ABB 7BDEL3737TM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BDEL3737TM?
Enquire Now
FAQs
Yes. The 7BDEL3737TM is designed for 230 V single-phase operation at 60 Hz, with a 215T frame and TEFC enclosure, making it a straightforward fit for North American dairy facilities and vacuum pump applications. It aligns with standard mounting patterns and is compatible with common dairy processing equipment baselines, reducing integration risk and installation time.
Maintenance is simplified by regreasable bearings and a TEFC enclosure, protecting internal components in dusty or humid farm environments. Lubrication intervals should follow manufacturer guidance for regreasable systems, and periodic checks of the 6307 bearings help prevent wear. Regular inspection of mounting integrity and shaft alignment ensures long service life and steady performance in dairy and vacuum pump duties.
Absolutely. The 7BDEL3737TM delivers 10 HP at 230 V, 1-phase, 60 Hz, with a 215T frame and TEFC enclosure, specifically configured for dairy equipment and vacuum-pump systems. Its 1.15 service factor and 1750 r/min speed support stable operation in continuous-duty scenarios typical of dairy processing and farm automation.
The motor carries CSA and UR certifications, indicating North American compliance for electrical safety. It uses a NEMA-aligned design and TEFC enclosure suitable for farm environments. Additional compliance indicators include operating parameters such as altitude up to 1000 m and ambient temperatures up to 50 °C, which support diverse dairy plant installations.
ROI benefits come from high efficiency (about 85.5%) and a power factor of 96%, which reduce energy costs in continuous-duty dairy or vacuum-pump applications. The motor’s stock availability across multiple warehouses minimizes downtime and accelerates project timelines, improving asset uptime and lowering maintenance and inventory carrying costs over the motor’s lifecycle.
