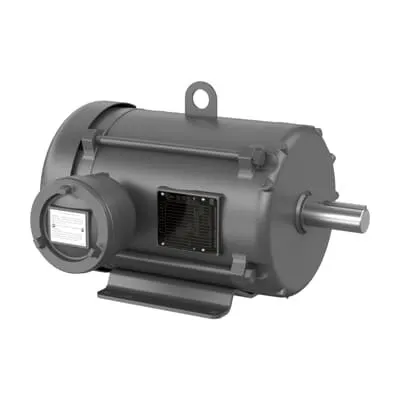

ABB 7BDRX21745T Explosion Proof General Purpose - 190V
Part Number: 7BDRX21745T
Quick Summary
The ABB 7BDRX21745T Explosion Proof General Purpose motor is a rugged, three‑phase solution delivering 7.5 HP at 190V for hazardous environments and general industrial uses. This motor is designed to minimize downtime with 0 day lead times and broad stock across multiple warehouses in the US and internationally. Built to withstand demanding conditions, it operates at 60 Hz or 50 Hz, supports standard 213T frame mounting, and features insulation class F for reliable performance in elevated ambient temperatures up to 40°C. With US-origin manufacturing and a proven ABB service network, this motor offers predictable maintenance, quick replacement, and scalable compatibility with VFDs and control systems for optimized uptime and total cost of ownership.
Product Information
Extended Description
7BDRX21745T ABB: Explosion Proof General Purpos 7.50 Hp 190 V (DRX21745T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5//5HP,1770//1475RPM,3PH,60//50HZ
Invoice Description
7.5//5HP,1770//1475RPM,3PH,60//50HZ,213T
Product Name
Explosion Proof General Purpos
Product Type
Undefined
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Selling Unit of Measure
piece
Country of Origin
United States (US)
Customs Tariff Number
85015220
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Medium Description
Explosion Proof General Purpos, 7.5//5 HP, 1800//1500 RPM, Frame Size 213T, Standard Mounting, 3 Phase, 230/460//190/380 V, 60 Hz
Short Description
7.5//5 HP, 1800//1500 RPM, Frame Size 213T, Standard, 3 PH, 230/460//190/380 V
Electrical Data
Frequency (f)
50 Hz | 60 Hz
Output Power
7.50 Hp | 5 Hp
Ambient Temperature
40 °C
Insulation Class
F
Number of Poles (High)
4
Type of Duty
Continuous
Frame Material
Steel
Frame Size
Undefined
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Width
16.5 in
Product Net Weight
163 lb
Gross Weight
163 lb
Standards
NEMA
Feature → Business Impact → Application: Explosion-proof construction provides inherent safety in hazardous locations, reducing risk and enabling compliant operation in chemical, oil & gas, and processing plants; this translates to lower insurance costs and safer maintenance routines during conveyors and pumps. Feature → Voltage/frequency flexibility (230/460 V or 190/380 V; 50/60 Hz) → Application: Seamless integration with global power systems and VFDs, enabling precise speed control and energy management in mixed-utility facilities. Feature → 4-pole, 7.5 HP design with 1800/1500 RPM ranges → Application: Steady torque for continuous duty duties like compressors, fans, and mixers, improving process stability and reducing wear on driven equipment. Feature → Frame size 213T and standard mounting → Application: Easy retrofits and straightforward installation in existing industrial housings with minimal structural changes. Feature → Insulation Class F and ambient 40°C rating → Application: Enhanced thermal endurance for demanding environments, extending motor life and reducing scheduled maintenance. Feature → Heavy-duty steel frame and 163 lb weight → Application: Robust mechanical resilience for outdoor or rugged plant floors and installations with vibration considerations. Broad compatibility with 3-phase drives and controls makes this motor a reliable choice for compliant, cost-effective automation upgrades.
Get a Quick Quote for a ABB 7BDRX21745T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BDRX21745T?
Enquire Now
FAQs
The motor uses a standard 213T frame with 4-pole, 3-phase configuration and 213T mounting compatibility. This makes retrofits and new installations straightforward in existing equipment housings, reducing alignment and bolting issues during installation and improving first-time fit reliability.
It supports multiple voltage and frequency configurations: 230/460 V or 190/380 V, with 60 Hz or 50 Hz operation. This flexibility enables seamless integration with North American and international electrical systems and compatibility with common drive systems.
Yes. The ABB 7BDRX21745T is designed as an explosion-proof general purpose motor and is aligned with NEMA standards, making it suitable for hazardous locations such as chemical plants and oil & gas facilities where safety and compliance are critical.
Product warranty terms indicate that warranty returns are required if applicable, with a standard policy that products under warranty must be returned. Additionally, stock is available across multiple warehouses, enabling rapid replacement and service support to minimize downtime.
Plan for a 163 lb motor with a 26.375 in length, 17.375 in height, and 16.5 in width, mounted on a 213T frame. Ensure proper cooling and ventilation for the 40°C ambient rating, and consider using a VFD to manage speed control. Verify 230/460 V or 190/380 V supply compatibility with your panel.
