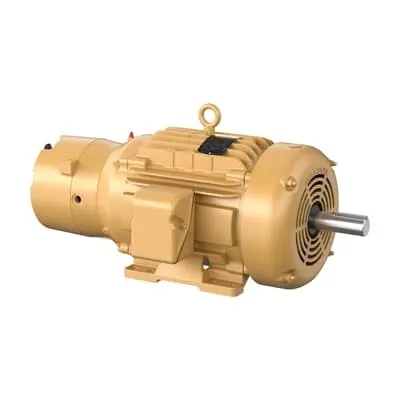

ABB EBM2353TY Brake - 15HP, 60 Hz, TEFC Enclosure
Part Number: 7BEBM2353TY
Quick Summary
The ABB EBM2353TY Brake is a 15 HP, 3-phase braking motor designed for industrial drives and automation systems. Manufacturers often struggle with long lead times and sourcing gaps when replacing aging equipment, causing downtime and project delays. It carries CSA, CSA EEV, and UR certifications, adding regulatory confidence for safe operation in North America and global deployments. With a TEFC enclosure, 254T frame, and Premium Efficiency rating, it supports reliable service while reducing energy use and maintenance costs. Stocked at multiple warehouses with 0 day lead time, it enables faster project ramp-up and lower total cost of ownership.
Product Information
Extended Description
7BEBM2353TY ABB: Brake 15 Hp 230 V (EBM2353TY)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,1765RPM,3PH,60HZ,254T,0944M,TE
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6308
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM2353TY
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYE427: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
EBM2353TY
Gross Volume
24317.313 inÂł
Gross Weight
286 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
15HP,1765RPM,3PH,60HZ,254T,0944M,TEFC,F1
Made To Order
No
Medium Description
Brake, 15 HP, 1800 RPM, Frame Size 254T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EBM2353TY)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
84 %
Product Name
Brake
Product Net Depth / Length
43.25 in
Product Net Height
21.625 in
Product Net Weight
286 lb
Product Net Width
26 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
36.2 A | 18.1 A
Rated Efficiency
92.40 %
Rated Speed
1765 r/min
Replaced Product ID (OLD)
7B09E427T597G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
15 HP, 1800 RPM, Frame Size 254T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The brake-equipped 15 HP motor enables precise stopping and secure holding, reducing risk during machine reset and product handling. This translates to lower downtime and safer maintenance in conveyors, hoists, and automated presses, especially where frequent stops are required. Feature → Business Impact → Application: Dual voltage capability (230 V / 460 V) and 60 Hz operation provide flexibility across regional power grids, simplifying procurement and minimising panel redesign during upgrades or OEM replacements. Feature → Business Impact → Application: TEFC enclosure with a 254T frame delivers rugged, sealed protection in dusty or humid factory environments, improving uptime in material handling and packaging lines. Feature → Business Impact → Application: Premium Efficiency (92.40%) lowers energy consumption and cooling loads, supporting compliance with energy standards and reducing operating costs in continuous-duty applications. Feature → Business Impact → Application: Direct On Line starting and a NEMA-design A motor profile streamline control schemes, decreasing installation time and enabling rapid integration into existing automation architectures. Feature → Business Impact → Application: Ready availability from US and international warehouses plus zero lead time reduces project risk, accelerates procurement cycles, and improves total cost of ownership for capital projects.
