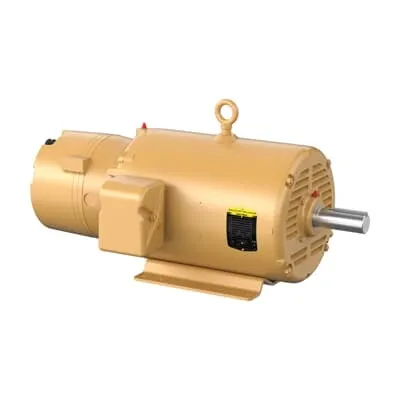

ABB 7BEBM2513T Brake Motor - 15HP, 230/460V, Premium
Part Number: 7BEBM2513T
Quick Summary
Brake motor ABB 7BEBM2513T provides reliable braking for 15 HP pump systems in industrial applications. These motors are designed to deliver precise stopping and controlled deceleration, reducing pump wear and process disturbances. Many facilities face downtime due to misapplied drives or slow stopping performance; this model addresses those pain points with an integrated brake and robust frame. With CSA, CSA EEV, and UR certifications, the unit meets North American safety and regulatory standards while maintaining premium efficiency. The combination of 230/460 V capability, 60 Hz operation, and a 254T frame supports diverse retrofit and new install scenarios, delivering installation flexibility, faster procurement, and lower life-cycle costs for plants aiming to improve reliability and energy performance.
Product Information
Extended Description
7BEBM2513T ABB: Pump Motor 15 Hp 230 V (EBM2513T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,1765RPM,3PH,60HZ,254T,3948M,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6309
Brake Present
Yes
Brand / Label
Baldor-Reliance
Catalog Number
EBM2513T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
39LYE736: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
EBM2513T
Gross Volume
18894 inÂł
Gross Weight
123.377 kg
Horsepower Rating UL/CSA
15.000 Hp
IC Class
OPEN
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
15HP,1765RPM,3PH,60HZ,254T,3948M,OPEN,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
Brake, 15 HP, 1800 RPM, Frame Size 254T, Standard Mounting, 3 Phase, OPEN Enclosure, 230/460 V, 60 Hz (EBM2513T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
83 %
Product Name
Brake
Product Net Depth / Length
33.5 in
Product Net Height
23.5 in
Product Net Weight
123.377 kg
Product Net Width
24 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
36.4 A | 18.2 A
Rated Efficiency
93 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
15 HP, 1800 RPM, Frame Size 254T, Standard, 3 PH, OPEN, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature → The brake motor provides integrated braking and direct-on-line starting, enabling immediate stop and simplified drive control. Business Impact → Reduces mechanical wear, minimizes downtime, and lowers energy spikes during stop/start events. Application → Ideal for pump skids and conveyors where precise stop sequences improve process stability and reduce maintenance costs. Feature → Premium efficiency rating enhances energy performance across continuous-duty operations. Business Impact → Lowers operating costs and reduces thermal load on electrical infrastructure. Application → Suitable for polling systems, fans, and pumps running at 60 Hz with 230/460 V supply. Feature → Open enclosure with a robust steel frame (254T) and foot mounting supports easy installation and reliable cooling. Business Impact → Faster commissioning, easier retrofits, and longer motor life in typical industrial environments. Application → Commonly used in open-area plant floors, skid-mounted equipment, and modular construction. Feature → Built-in brake, 1.15 service factor, and NEMA design code A provide reliability for continuous-duty applications. Business Impact → Predictable torque, safe stops, and reduced risk of unintended motion. Application → Conveyor lines, bulk material handling, and pump assemblies requiring reliable brake engagement. Feature → Stocked at multiple warehouses and 0-day lead times improve procurement resilience. Business Impact → Minimizes downtime waiting for replacements and accelerates project timelines. Application → Global installations with US, China, and other regional stock now feasible without long lead times.
